Specifications
mechanical power press machine rates1High-strength frame
2 Stable high accuracy
3 Slider adjustment
4 Novel design

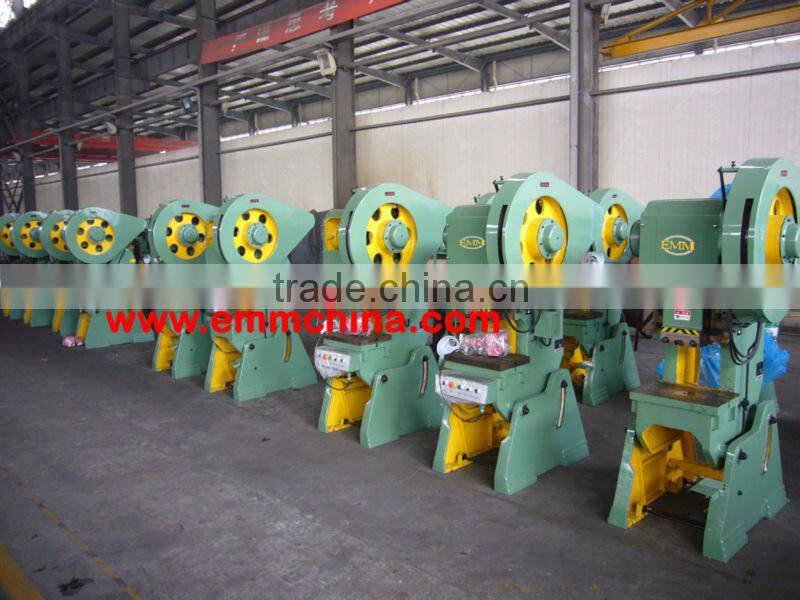

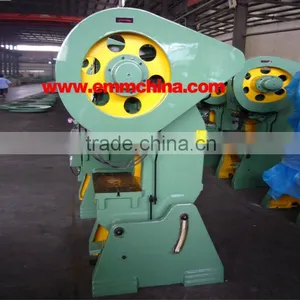

EMM 23-25 mechanical power press machine rates
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
EMM 23-25 mechanical power press machine rates adopt rigid transfer clutch and are with simple structure, convenient operation and easy maintenance. EMM 23-25 mechanical power press machine rates uses helical gears which is stable at work and has small impact, low noise. EMM23open type inclinable press machine is the first to adopt rolling bearing than the commonly used sliding bearing (copper bearing ) for the transmission gear, which make the transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worn copper bearing.

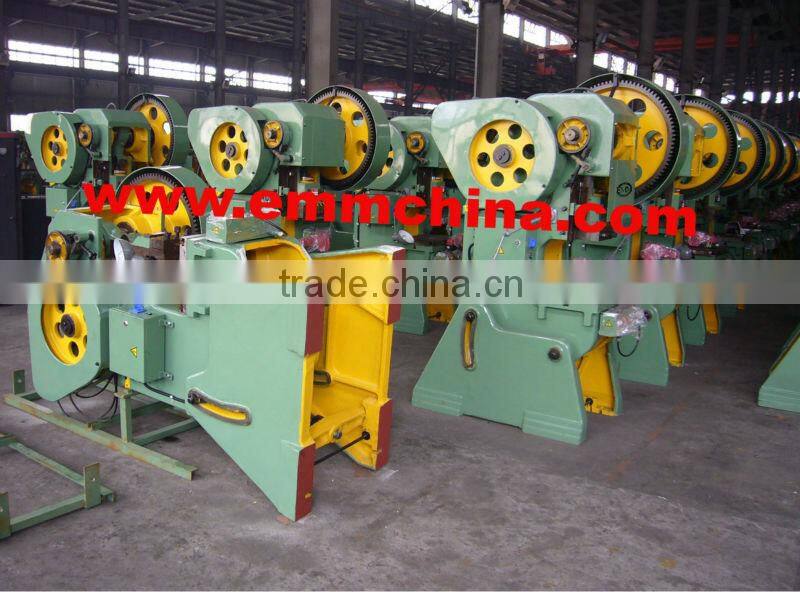

EMM 23-25 mechanical power press machine rates
Technical Data | Unit | EMM 23-16 | EMM 23-25 | ||
Nominal pressure on sliding block(Pe) | KN | 160 | 250 | ||
Nominal pressure stroke(Sp) | mm | 2 | 2.5 | ||
Slide stroke(S) | mm | 55 | 65 | ||
Stroke frequency(Fast speed) | times/min | 125 | |||
Stroke frequency(Low speed) | times/min | 55 | |||
Die height(H2) | mm | 220 | 270 | ||
Die Height Adjustment(t) | mm | 45 | 55 | ||
Distance between slider center and machine(C1) | mm | 160 | 200 | ||
Vertical columns distance(d1) | mm | 220 | 270 | ||
Slider bottom size | L×R(a) | mm | 200 | 250 | |
| F×B(b) | mm | 180 | 220 | |
Size of handle hole | Diameter(d) | mm | 40 | 40 | |
| Depth(I) | mm | 60 | 60 | |
Size of worktable | L×R(C) | mm | 450 | 560 | |
| F×B(D) | mm | 300 | 370 | |
Blanking hole diameter(Φ) | mm | 100 | 120 | ||
Thickness of worktable(H3) | mm | 40 | 50 | ||
Max. inclination angle | 35 | 30 | |||
Worktable height(H1) | mm | 750 | 800 | ||
Power of electric motor | KW | 1.5 | 2.2 | ||
Weight(Approximate) | Kg | 1085 | 1780 | ||

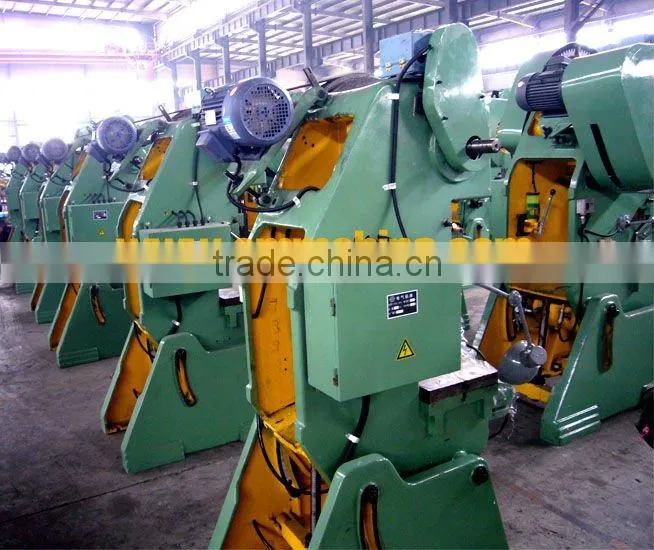

EMM 23-25 mechanical power press machine rates
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.

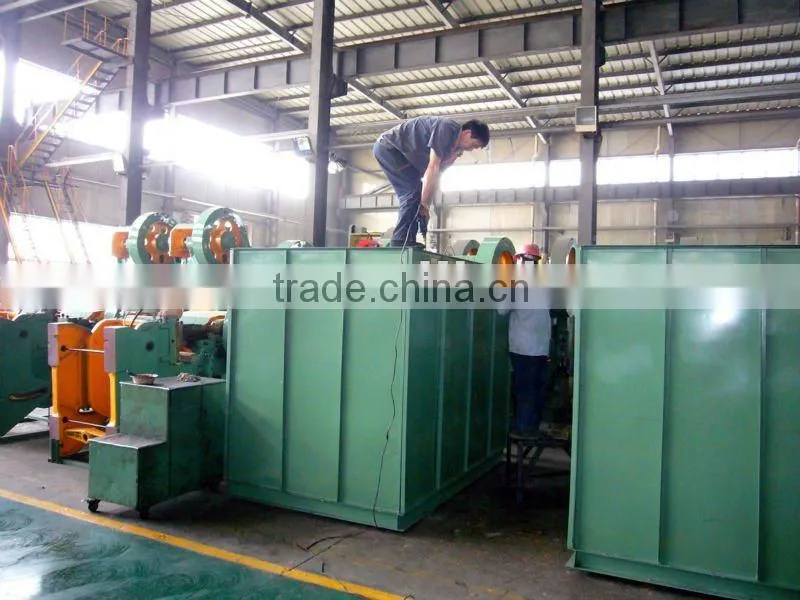

Package: under 63 iron sheet
beyond 63 tito plus rain wear
Shipping : FOB shanghai by sea
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
contact information
Contact Person: Joan Wang
Mobile number: +86-13952608133, +86-18651143188;
Skype: emmchina
