Specifications
hydraulic power press machine1High-strength frame
2Stable high accuracy
3Slider adjustment mechanism
44Novel design

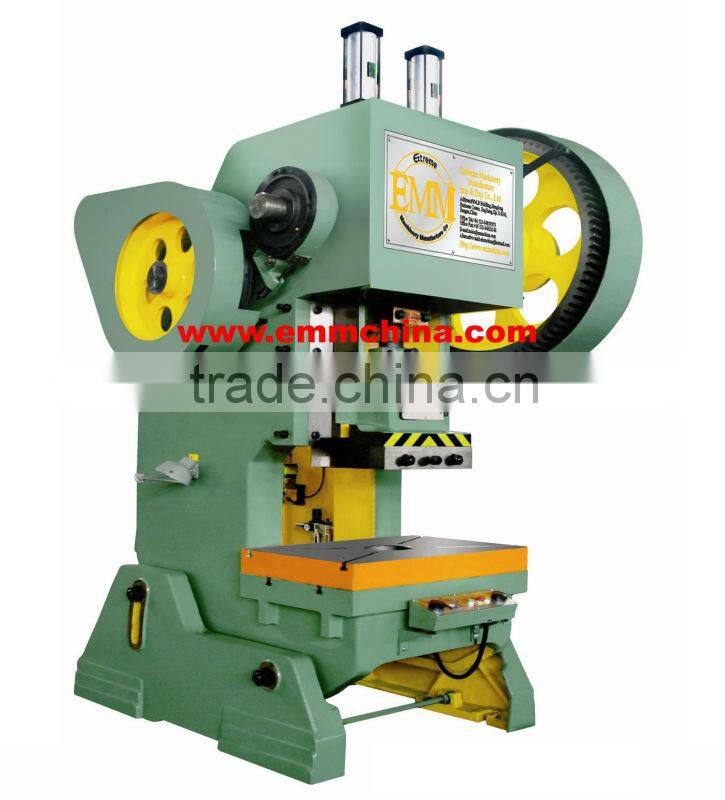

EMM 23-16 hydraulic power press machine
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
This series presses adopt rigid transfer clutch and are with simple structure, convenient operation and easy maintenance. The machine uses helical gears which is stable at work and has small impact, low noise. EMM2325 open type inclinable press machine is the first to adopt rolling bearing than the commonly used sliding bearing (copper bearing ) for the transmission gear, which make the transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worn copper bearing.

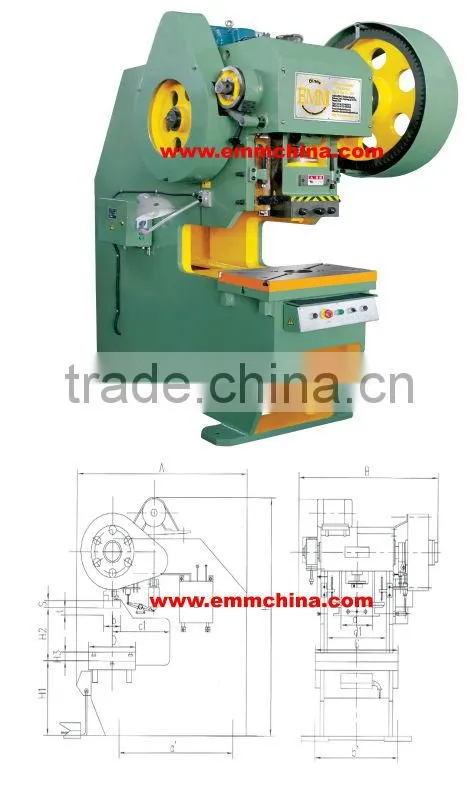

Technical Data | Unit | EMM 23-16 | EMM 23-25 | ||
Nominal pressure on sliding block(Pe) | KN | 160 | 250 | ||
Nominal pressure stroke(Sp) | mm | 2 | 2.5 | ||
Slide stroke(S) | mm | 55 | 65 | ||
Stroke frequency(Fast speed) | times/min | 125 | |||
Stroke frequency(Low speed) | times/min | 55 | |||
Die height(H2) | mm | 220 | 270 | ||
Die Height Adjustment(t) | mm | 45 | 55 | ||
Distance between slider center and machine(C1) | mm | 160 | 200 | ||
Vertical columns distance(d1) | mm | 220 | 270 | ||
Slider bottom size | L×R(a) | mm | 200 | 250 | |
| F×B(b) | mm | 180 | 220 | |
Size of handle hole | Diameter(d) | mm | 40 | 40 | |
| Depth(I) | mm | 60 | 60 | |
Size of worktable | L×R(C) | mm | 450 | 560 | |
| F×B(D) | mm | 300 | 370 | |
Blanking hole diameter(Φ) | mm | 100 | 120 | ||
Thickness of worktable(H3) | mm | 40 | 50 | ||
Max. inclination angle | 35 | 30 | |||
Worktable height(H1) | mm | 750 | 800 | ||
Power of electric motor | KW | 1.5 | 2.2 | ||
Weight(Approximate) | Kg | 1085 | 1780 | ||
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
All inquiry are welcome.
Contact Person: Joan Wang
Mobile number: +86-13952608133, +86-18651143188;
Skype: emmchina
