Specifications
1.EMM23-80 C frame pneumatic power press machine2.transfer clutch
3.inclinable
4.C-frame
5.ISO9001

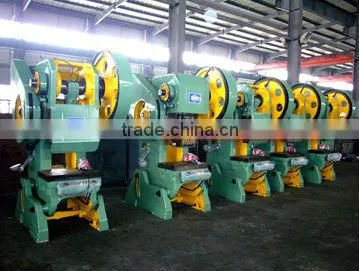

EMM23-80 C frame pneumatic power press machine
This series of button presses using rigid transfer clutch, simple structure, easy maintenance, the
use of helical gears, smooth, the impact of small, low noise.
Championship glory, different.
Supreme heavyweight champion from the second forging press technology standards. There is
no doubt that alone to give a series of press EMM23 sufficient strength, stability and lasting quality
of life. Fifty years of manufacturing history, exercise an undisputed champion of stamping.

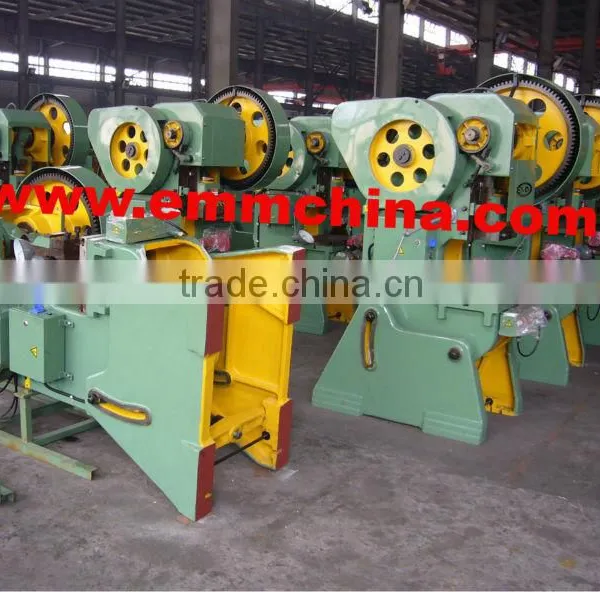

EMM23-80 C frame pneumatic power press machine open type inclinable press machine is the fiest to adopt rolling bearing than the
commonly used sliding bearing (copper bearing ) for the transmission gear, which make the
transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worn
copper bearing.
Standard export packing of EMM23-80 C frame pneumatic power press machine
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team members includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
What's the feature of the power press?
EMM23-80 C frame pneumatic power press machine open type inclinable press machine is the first to adopt rolling bearing than the commonly used sliding bearing (copper bearing ) for the transmission g
Technical Data |
Unit |
EMM 23-6.3 |
EMM 23-10 |
EMM 23-16 |
EMM 23-25 |
EMM 23-35 |
EMM 23-40 |
EMM 23-63 |
EMB 23-63 |
EMM 23-80 |
EMM 23-100 |
EMM 23-125 |
||
Nominal pressure on sliding block(Pe) |
KN |
63 |
100 |
160 |
250 |
350 |
400 |
630 |
630 |
800 |
1000 |
1250 |
||
Nominal pressure stroke(Sp) |
mm |
2 |
2 |
2 |
2.5 |
3.5 |
6 |
6 |
7 |
7 |
7 |
8 |
||
Slide stroke(S) |
mm |
35 |
45 |
55 |
65 |
80 |
90 |
110 |
110 |
120 |
140 |
150 |
||
Stroke frequency(Fast speed) |
times/min |
170 |
145 |
125 |
|
|
|
|
|
|
|
|
||
Stroke frequency(Low speed) |
times/min |
|
|
|
55 |
50 |
45 |
50 |
40 |
38 |
38 |
38 |
||
Die height(H2) |
mm |
150 |
180 |
220 |
270 |
290 |
320 |
360 |
390 |
440 |
480 |
500 |
||
Die Height Adjustment(t) |
mm |
30 |
35 |
45 |
55 |
60 |
65 |
80 |
80 |
90 |
100 |
100 |
||
Distance between slider center and machine(C1) |
mm |
110 |
130 |
160 |
200 |
220 |
250 |
260 |
310 |
350 |
380 |
390 |
||
Vertical columns distance(d1) |
mm |
150 |
180 |
220 |
270 |
280 |
340 |
350 |
420 |
450 |
560 |
550 |
||
Slider bottom size |
L×R(a) |
mm |
140 |
170 |
200 |
250 |
250 |
300 |
300 |
400 |
430 |
540 |
540 |
|
F×B(b) |
mm |
120 |
150 |
180 |
220 |
220 |
260 |
260 |
360 |
360 |
480 |
480 |
||
Size of handle hole |
Diameter(d) |
mm |
30 |
30 |
40 |
40 |
40 |
50 |
50 |
50 |
60 |
60 |
60 |
|
Depth(I) |
mm |
55 |
55 |
60 |
60 |
60 |
70 |
70 |
70 |
75 |
75 |
75 |
||
Size of worktable |
L×R(C) |
mm |
310 |
370 |
450 |
560 |
610 |
700 |
760 |
860 |
950 |
1080 |
1100 |
|
F×B(D) |
mm |
200 |
240 |
300 |
370 |
400 |
460 |
480 |
570 |
650 |
710 |
720 |
||
Blanking hole diameter(Φ) |
mm |
60 |
80 |
100 |
120 |
120 |
150 |
150 |
180 |
200 |
220 |
180 |
||
Thickness of worktable(H3) |
mm |
30 |
35 |
40 |
50 |
60 |
65 |
80 |
80 |
100 |
120 |
130 |
||
Max. inclination angle |
|
45 |
35 |
35 |
30 |
30 |
30 |
20 |
20 |
20 |
15 |
13 |
||
Worktable height(H1) |
mm |
750 |
730 |
750 |
800 |
815 |
850 |
810 |
850 |
850 |
850 |
860 |
||
Overall size |
L×R(A) |
mm |
780 |
900 |
1150 |
1345 |
1460 |
1721 |
1810 |
1958 |
2060 |
2404 |
2504 |
|
F×B(B) |
mm |
620 |
665 |
847 |
950 |
1058 |
1335 |
1350 |
1500 |
1715 |
1790 |
1790 |
||
Height(H) |
mm |
1503 |
1658 |
1910 |
2130 |
2225 |
2488 |
2740 |
2868 |
3290 |
3625 |
3715 |
||
Anchor bolts distance |
L×R(a’) |
mm |
530 |
610 |
780 |
920 |
1020 |
1060 |
1180 |
1300 |
1360 |
1550 |
1710 |
|
F×B(b’) |
mm |
314 |
394 |
450 |
600 |
650 |
750 |
850 |
920 |
1010 |
1130 |
1110 |
||
Power of electric motor |
KW |
0.75 |
1.1 |
1.5 |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
11 |
||
Weight(Approximate) |
Kg |
400 |
576 |
1085 |
1780 |
2650 |
3540 |
4550 |
5500 |
7390 |
10800 |
12035 |
||
