Specifications
1.Rigid transfer clutch2.Simple structure
3.Easy maintenance
4.Stability
5.Lasting quality of life

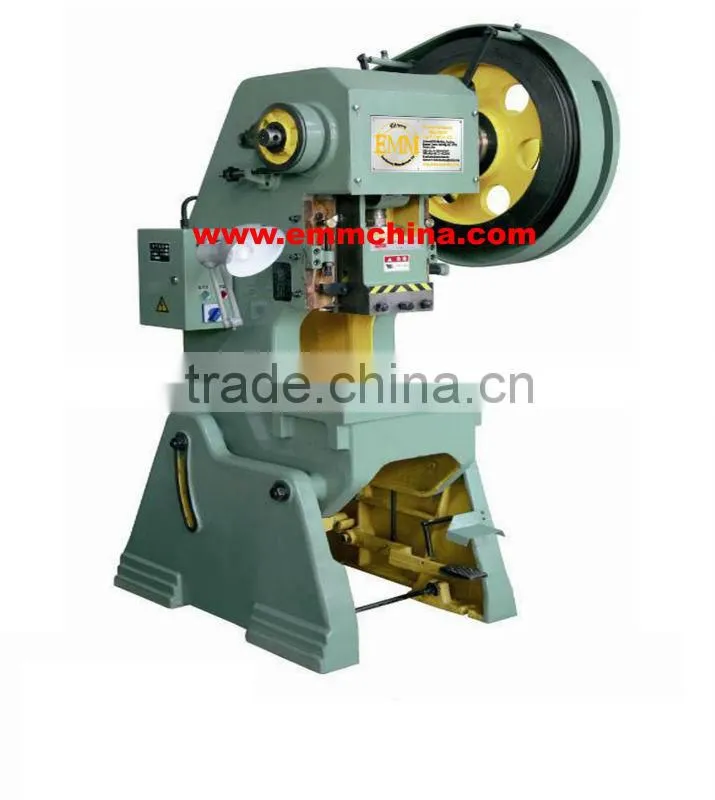

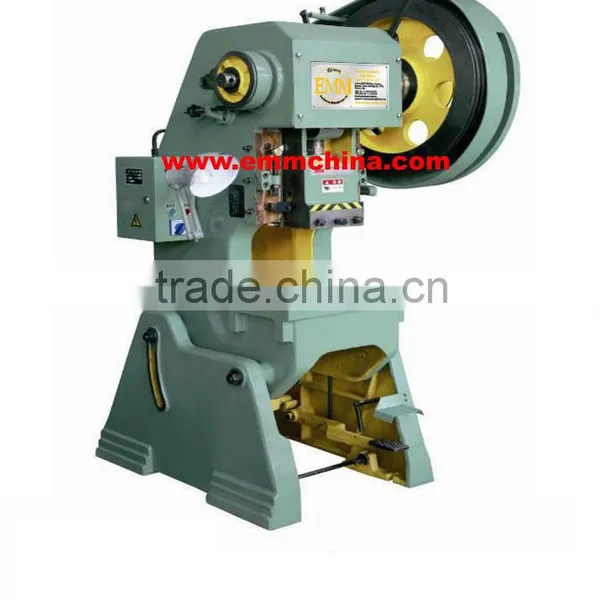

EMM23-10 C-frame Inclinable Power Press
Features:
This series of button presses using rigid transfer clutch, simple structure, easy maintenance, the use of helical gears, smooth, the impact of small, low noise.
Championship glory, different.
Supreme heavyweight champion from the second forging press technology standards. There is no doubt that alone to give a series of press EMM23 sufficient strength, stability and lasting quality of life. Fifty years of manufacturing history, exercise an undisputed champion of stamping.
Technical Data:
Item |
Unit |
EMM23-10 |
|
Nominal pressure on sliding block(Pe) |
KN |
100 |
|
Nominal pressure stroke(Sp) |
mm |
2 |
|
Slide stroke(S) |
mm |
45 |
|
Stroke frequency |
Fast speed |
times/ |
145 |
Low speed |
|
||
Die height(H2) |
mm |
180 |
|
Die Height Adjustment(t) |
mm |
35 |
|
Distance between slider center and machine(C1) |
mm |
130 |
|
Vertical columns distance(d1) |
mm |
180 |
|
Slider bottom size |
L×R(a) |
mm |
170 |
F×B(b) |
mm |
150 |
|
Size of handle hole |
Diameter(d) |
mm |
30 |
Depth(I) |
mm |
55 |
|
Size of worktable |
L×R(C) |
mm |
370 |
F×B(D) |
mm |
240 |
|
Blanking hole diameter(Φ) |
mm |
80 |
|
Thickness of worktable(H3) |
mm |
35 |
|
Max. inclination angle |
Deg |
35 |
|
Worktable height(H1) |
mm |
730 |
|
Overall size |
L×R(A) |
mm |
900 |
F×B(B) |
mm |
665 |
|
Height(H) |
mm |
1658 |
|
Anchor bolts distance |
L×R(a’) |
mm |
610 |
F×B(b’) |
mm |
394 |
|
Power of electric motor |
kw |
1.1 |
|
Weight(Approximate) |
kg |
576 |
|

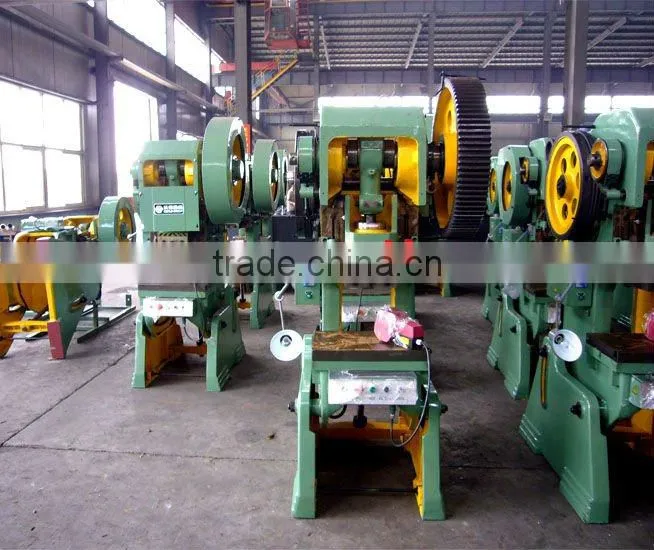

Machine pictures for reference
