EMM 23-63 Power Press Line

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

US$ 3,500 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Mechanical

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Mechanical

Place of Origin Jiangsu, China

Brand Name EMM

Model Number EMM 23-63

Voltage 380V50HZ

Power(W) 5.5KW

Weight 4550KG

Dimension(L*W*H) 1810*1350*2740mm

Certification ISO9001

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

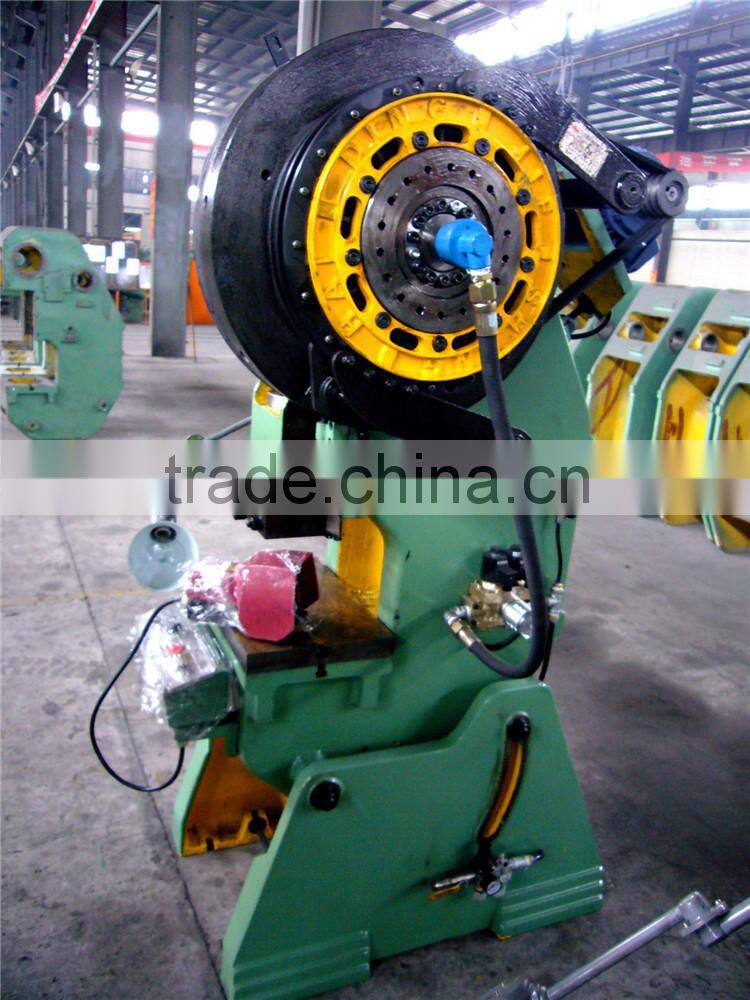

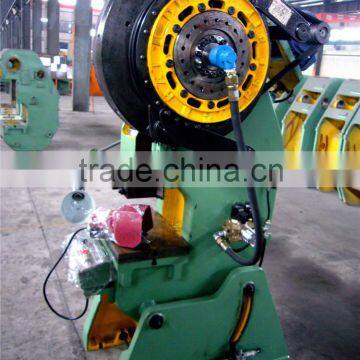

EMM 23-63 power press line

Product Description

Technical Data			Unit	EMM 23-40	EMM 23-63
Nominal pressure on sliding block(Pe)			KN	400	630
Nominal pressure stroke(Sp)			mm	6	6
Slide stroke(S)			mm	90	110
Stroke frequency(Fast speed)			times/min
Stroke frequency(Low speed)			times/min	45	50
Die height(H2)			mm	320	360
Die Height Adjustment(t)			mm	65	80
Distance between slider center and machine(C1)			mm	250	260
Vertical columns distance(d1)			mm	340	350
Slider bottom size		L×R(a)	mm	300	300
		F×B(b)	mm	260	260
Size of handle hole		Diameter(d)	mm	50	50
		Depth(I)	mm	70	70
Size of worktable		L×R(C)	mm	700	760
		F×B(D)	mm	460	480
Blanking hole diameter(Φ)			mm	150	150
Thickness of worktable(H3)			mm	65	80
Max. inclination angle				30	20
Worktable height(H1)			mm	850	810
Overall size	L×R(A)		mm	1721	1810
	F×B(B)		mm	1335	1350
	Height(H)		mm	2488	2740
Anchor bolts distance	L×R(a’)		mm	1060	1180
	F×B(b’)		mm	750	850
Power of electric motor			KW	5.5	5.5
Weight(Approximate)			Kg	3540	4550
