EMM078-A20-C polyurethane foam injection machine
- 30 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Other, foam | Place of Origin: | Jiangsu, China |
Brand Name: | EMM | Model Number: | EMM078-A20-C | Voltage: | 380V/220V/50HZ |
Power(W): | 11000-20000 W | Dimension(L*W*H): | 2500*3000*2200 MM | Weight: | 1.5t-3t |
Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

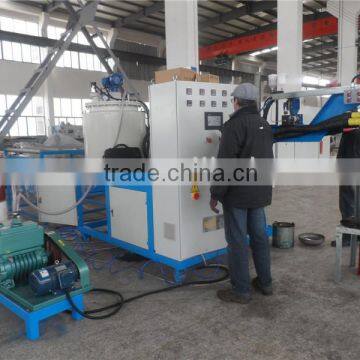

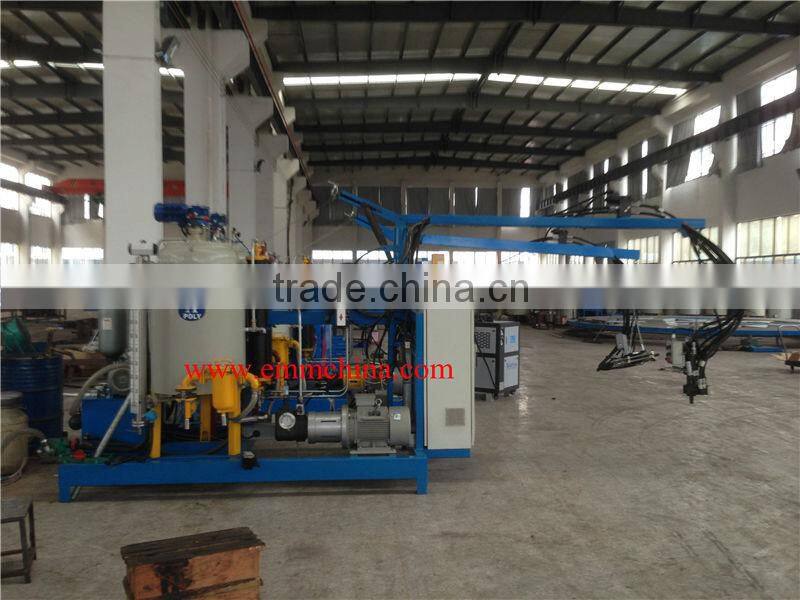

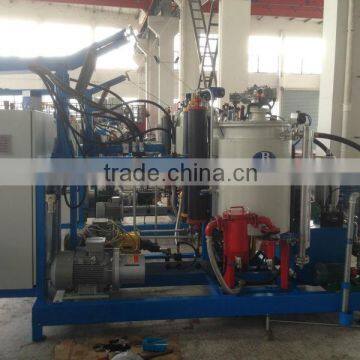

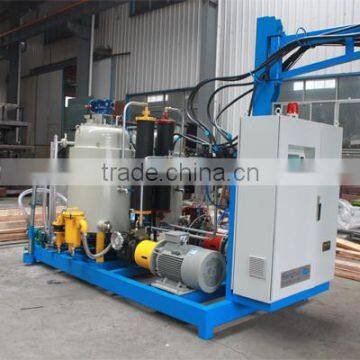

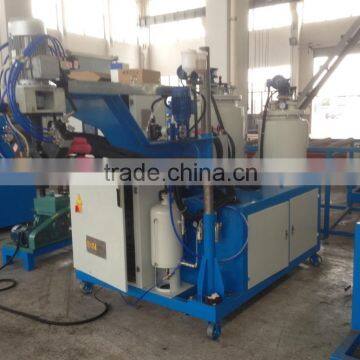

EMM078-A20-C polyurethane foam injection machine
EMM078-A20-C polyurethane foam injection machine High Pressure machine is that our company follows the international’s advanced technological products, The Main parts are imported from foreign countries, technical and safety performance of the equipment has reached the advanced level of the same product of the same period abroad.
When developing the EMM series high pressure machine, Technology with the "best practices" "plug and play", all of the machine’s parts and module are installed at one frame, component’s pipes short, pressure small, precise at the temperature control, optimization of the control technology, improve the equipment’s reliability and the production’s quantity.
The EMM078-A20-C polyurethane foam injection machine (Closed loop control system) High pressure machine has 1 POLY. barrel and 1 ISO. barrel, and two metering units drive by independence motors. This kind of machine is specially used in the polyurethane pouring products..
Product specification
Type: EMM078-A20-C polyurethane foam injection machine
Suitable foaming system: soft foam, hard foam, simi-hard foam
Suitable material viscosity (22°C):
polyol : max.~2000 mPs
isocyanate: max.~1000 mPs
Pouring output: 50~150g/sec (1:1),
with ratio range adjustable 3:1~1:1
Pouring program time: 0.5~99.99sec
Inject the quantity of the procedure:
EMM078-A20-C polyurethane foam injection machine
Component material | POLY. | ISO. |
Quantity | 1 | 1 |
metering pump type | A2VK12 (12cc/rev) | A2VK12 (12cc/rev) |
Shift motor | 5.5 | 5.5 |
Speed(RPM) | 1450 | 1450 |
pump sealing lubricating | DOP | Magnetic coupling (Maintenance-free) |
Packaging Detail : standard export packing
Shipping term: FOB shanghai
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
EMM078-A20-C polyurethane foam injection machine
