Specifications
EMM078-A100-C foam cup making machine1.high Pressure
2 internationals technological
3.imported parts
4. POLY

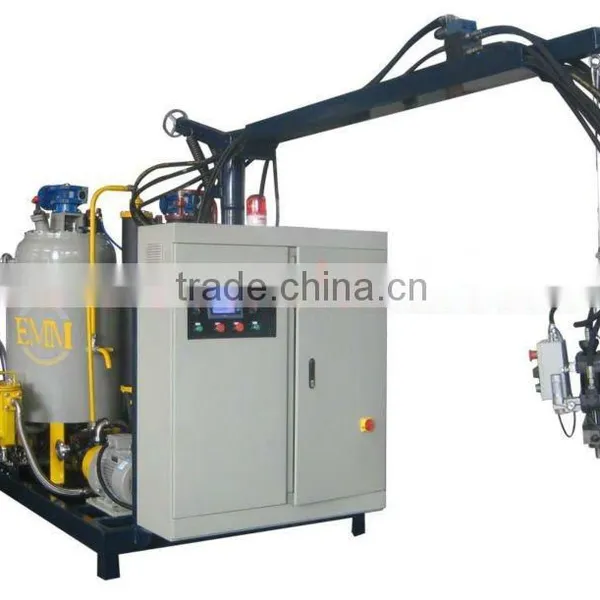

EMM078-A100-C foam cup making machine
The EMM078 series High Pressure machine is that our company follows the international’s advanced technological products, The Main parts are imported from foreign countries, technical and safety performance of the equipment has reached the advanced level of the same product of the same period abroad.
When developing the EMM series high pressure machine, Technology with the "best practices" "plug and play", all of the machine’s parts and module are installed at one frame, component’s pipes short, pressure small, precise at the temperature control, optimization of the control technology, improve the equipment’s reliability and the production’s quantity.
EMM078-A100-C foam cup making machine (Closed loop control system) High pressure machine has 1 POLY. barrel and 1 ISO. barrel, and two metering units drive by independence motors, through changing the
metering pumps output to change the pumps output. This kind of machine is specially used in the polyurethane pouring products.
Product specification
2.1 Type: EMM078-A100-C foam cup making machine
2.2 Suitable foaming system:
2.3 Suitable material viscosity (22°C):
polyol : max. 800-6000 mPs
isocyanate: max. 5-200 mPs
2.4 Pouring output: 150~1530 g/s (1:1), with ratio range adjustable 5:1~1:1
2.5 Pouring program time: 0.5~99.99sec
2.6 Inject the quantity of the procedure:
Manual inject: 9
Automatic inject: 99
2.7 Metering unit: Measurement accuracy≤0.5%
EMM078-A100-C foam cup making machine
Component material | POLY. | ISO. |
Quantity | 1 | 1 |
metering pump type | A2VK12 (12cc/rev) (Gelanrex ) | A2VK12 (12cc/rev)
|
Shift motor | 5.5 | 5.5 |
Speed(RPM) | 1450 | 1450 |
pump sealing lubricating | Magnetic coupling (Maintenance-free) | Magnetic coupling (Maintenance-free) |
Packaging Detail : standard export packing
Shipping: FOB shanghai by sea
EMMis a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
Payment
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
EMM078-A100-C foam cup making machine
