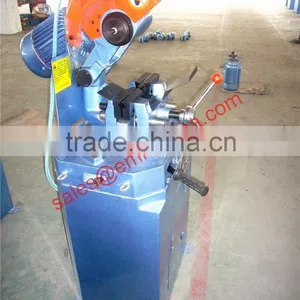

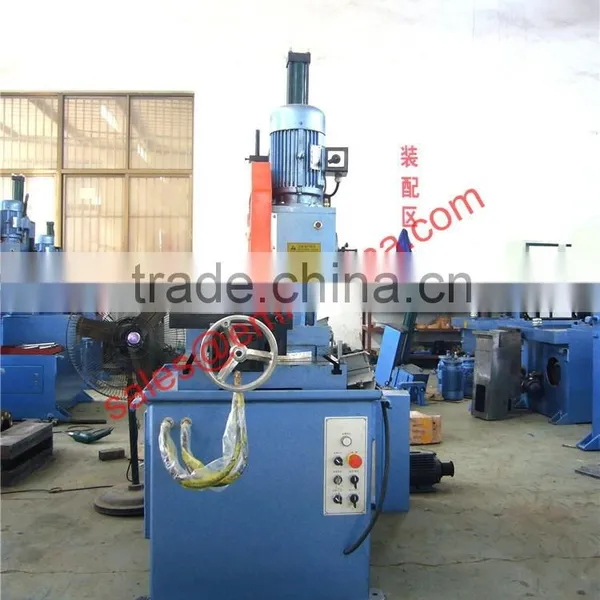

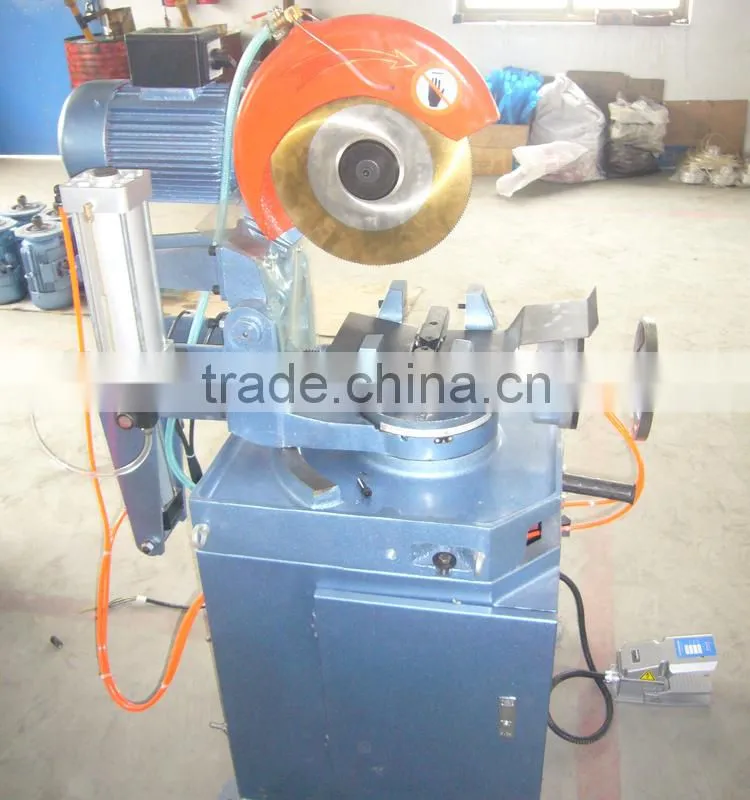

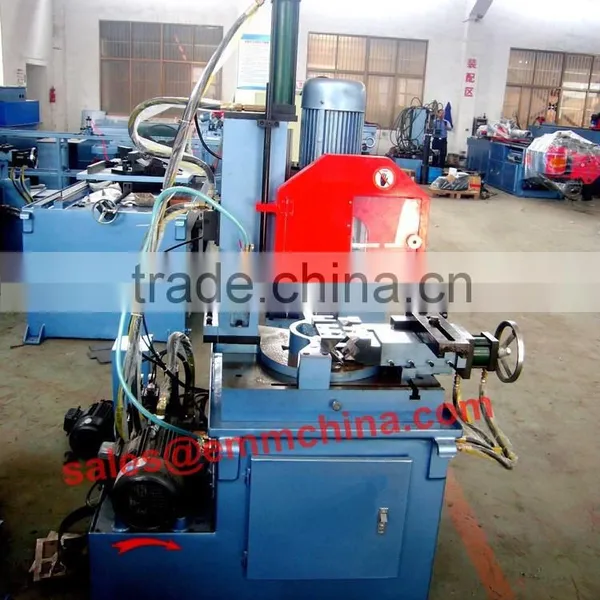

CS400 mini electric circular saw machine
Features
1.The manual and semi-automatic pipe cutting circular saw is the optimum tool for knifing tubes and sections.
2. It adopts European-style high-strength cutter head and high-efficiency worm together with turbine drive, characterized by high sawing efficiency, no noise and no burr.
3. Cutting feed is operated manually. The cutter head enables 45 degrees rotation both leftwards and right wards.

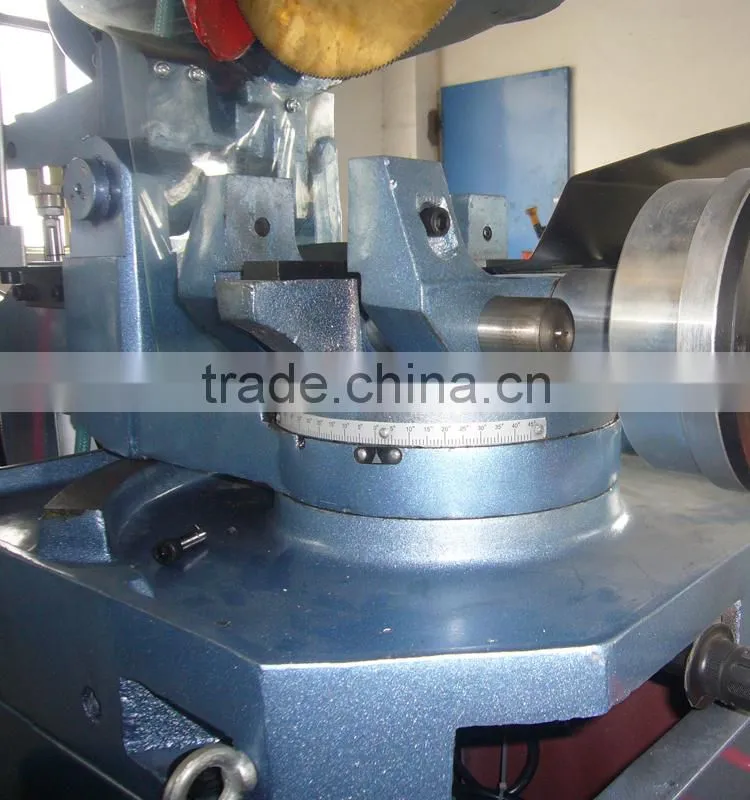

4. The angle scoring is very clear. The bumping post with 45 to 90 degrees bevel angle allows for easier adjustment.
5. This product is also configured with a manually operated bi-directional clamp, an automatic cooling system and a manually regulated gear gauge.
6. In additional to the following product series, we also provide the manual and semi-automatic pipe cutting circular saw in the series of CS 275A, CS275B, CS 315A and CS 315B.
Sawing capability of circular saw ( with the soft steel as reference) | ||||
|
CS275 series |
CS315 series |
||
Blade location |
90° |
45° |
90° |
45° |
Round pipe |
70 |
60 |
90 |
70 |
Square pipe |
60*60 |
45*45 |
80*80 |
60*60 |
L type |
60*60 |
45*45 |
80*80 |
60*60 |
Rectanglular pipe |
60*80 |
45*60 |
80*90 |
60*60 |
Round bar |
38 |
25 |
55 |
45 |
Square bar |
38 |
25 |
50 |
40 |
CS275series |
CS315series |
||
Main motor |
double speed motor 2/2.4kw |
double speed motor2.4/3kw |
|
double speed motor2/2.4kw |
double speed motor2.4/3kw |
||
spindle |
Atype |
RPM60/120 |
RPM60/120 |
Btype |
RPM60/120 |
RPM60/120 |
|
Suitable blade |
H.S.S BLADE |
H.S.S BLADE |
|
outer diameter250/275mm |
outer diameter250/300/315mm |
||
Cooling water pump |
90W |
90W |
|
Compressed air |
Atype or Btype |
Atype or Btype |
|
0.4-0.6Mpa |
0.4-0.6Mpa |
||
weight |
Atype 180 |
Atype 200 |
|
Btype 190 |
Btype 210 |
||
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
circular saw payment terms
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
