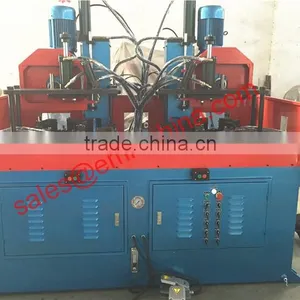

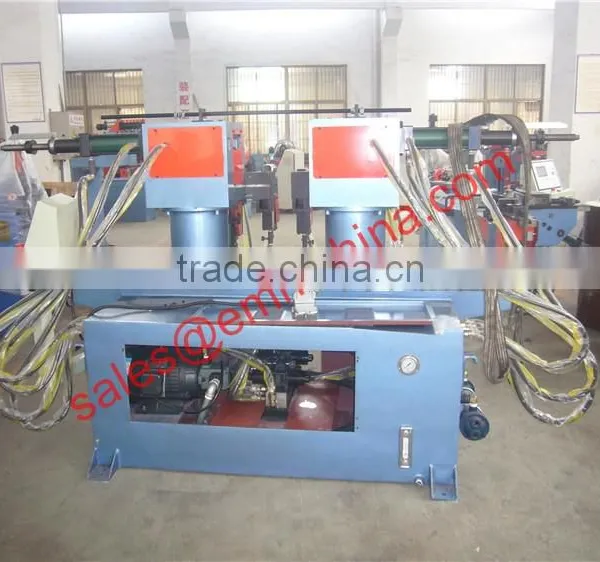

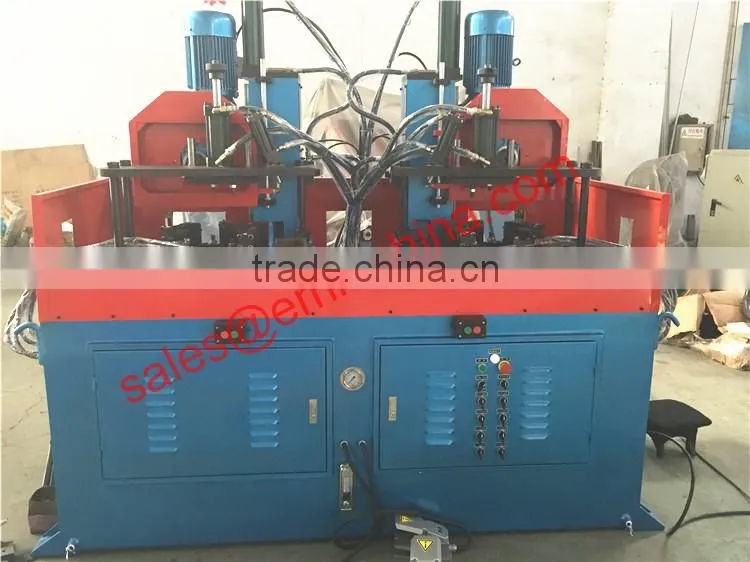

EB115 Hand Operated Pipe Bending Machine

US$ 8,000 - 10,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EMM

Model Number EB115

Machine Type Beading Machine

Raw Material Pipe

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services Machining

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

EB115 hand operated pipe bending machine

Product Description

Model		EB115	Remark
Max bending capability		Φ115mm×8mm	1. The Minimum bending diameter based on the pipe diameter 2.The Max bending diameter can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement
Max bending radius		R250mm
Min bending radius		R30mm
Max bending angle		190°
Max feeding length		2850mm
Working speed	Bending speed	Max 30°/s
	Rotary speed	Max 160°/s
	Feeding speed	Max 800mm/s
Working accuracy	Bending accuracy	±0.15°
	Rotary accuracy	±0.15°
	Feeding accuracy	±1mm
Bending method		Hydraulic bending
Power of rotary servo motor		1.5kw
Max bending groups		12
Max storing components		330
Motor power		11kw
Oil pressure		12 Mpa
Size		5090 x 1350 x 1230mm
Weight		5500kg
