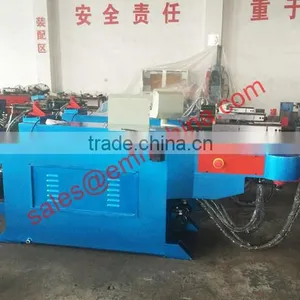

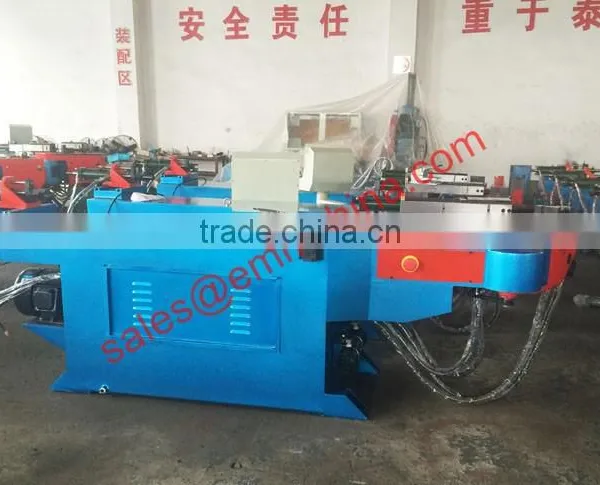

EMMCHINA EM219 Single head hydraulic manual mandrel pipe bender for sale
- 50 Set / Sets per Month
- shanghai
- T/T L/C Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | EMM | Model Number: | EM189 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
EMMCHINA EM219 Single head hydraulic manual mandrel pipe bender for sale
Specification/Model | Unit | EM110 | EM115 | EM130 | EM168 | EM189 | EM219 |
Max bending capability | mm | Φ110*8 | Φ115*10 | Φ130*8 | Φ168*14 | Φ189*14 | Φ219*16 |
Max bending radius | mm | R500 | R520 | R520 | R750 | R750 | R800 |
Min bending radius | mm | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter |
Max bending angle | degree | 190 | |||||
Max effective distance of mandrel | mm | 3700 | 4500 | 4500 | 5000 | 5500 | 6000 |
Control System | NC Control | ||||||
Max elbow bend pipe | unit | 16 | |||||
Max storable sections | unit | 16*16 | |||||
Motor power | kw | 15 | 15 | 22 | 22 | 30 | 37 |
Max. Hydraulic Pressure | mpa | 14 | 14 | 14 | 16 | 16 | 16 |
Hydraulic System Control | Electromagnetic Valve | ||||||
Oil Tank Capacity | L | 320 | 350 | 400 | 650 | 700 | 800 |
Measurement | mm | 5000*1400*1200 | 5500*1600*1200 | 6100*1600*1300 | 7100*2000*1800 | 8000*1800*1660 | 8800*2450*1980 |
Weight of Machine | kg | 6000 | 7000 | 8000 | 15000 | 20000 | 35000 |
EMMCHINA EM219 Single head hydraulic manual mandrel pipe bender for sale
1. This machine designed and manufactured based on the Taiwanese technology
2. variety types: single head, double head, 3D pipe bending machine. NC or CNC control.
3. Suitable for different material: mild steel, stainless steel, copper, aluminum etc.
4. Applicable tube shape: round, square, rectangle, oval, profile, etc
5. imported electric and hydraulic elements
6. foot switch with function of automatic start, emergency stop and resuming
7. muiti-groups program and multi-angles setting
8. Hydraulic power, processing more smoothly
9. Die material use high quality steel, hardness high and long life use
10. Mistakes self-checking on the screen , help to solve problem immediately
11. Slowly returning of mandrel , make good shape and appearance of the angle
12. Moveable control platform with PLC touch-screen control , more convenient
13. variety of program storage
14. widely used in many field: power construction, road ,sport equipment,furniture railway construction and etc
15.. touch screen can transform between Chinese and English.
16.. multiple functions, easy operate, fast installation
EMMCHINA EM219 Single head hydraulic manual mandrel pipe bender for sale
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by irrevocable L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
