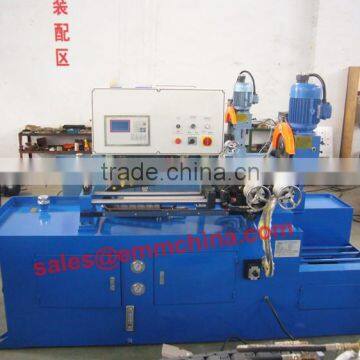

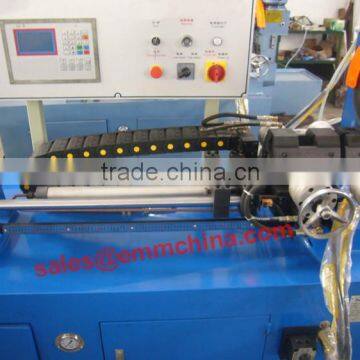

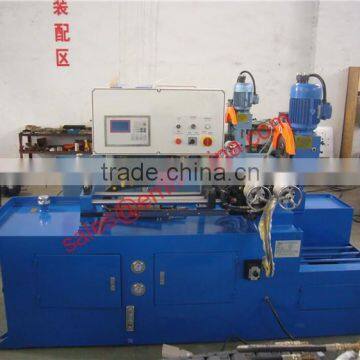

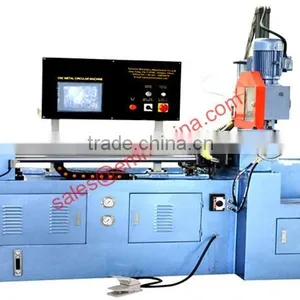

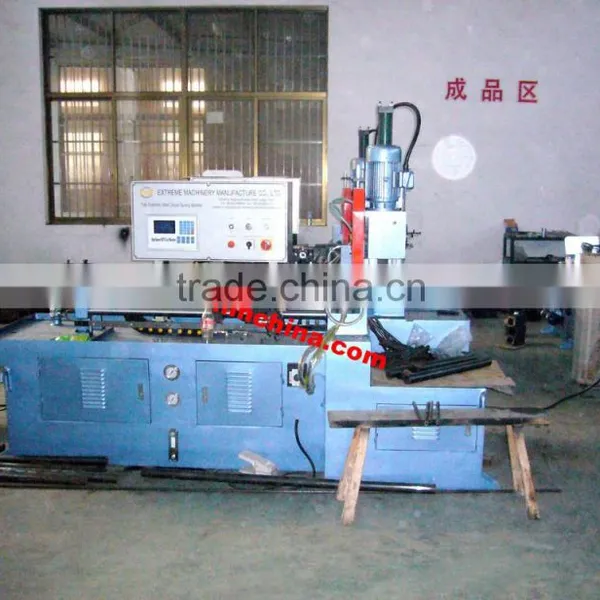

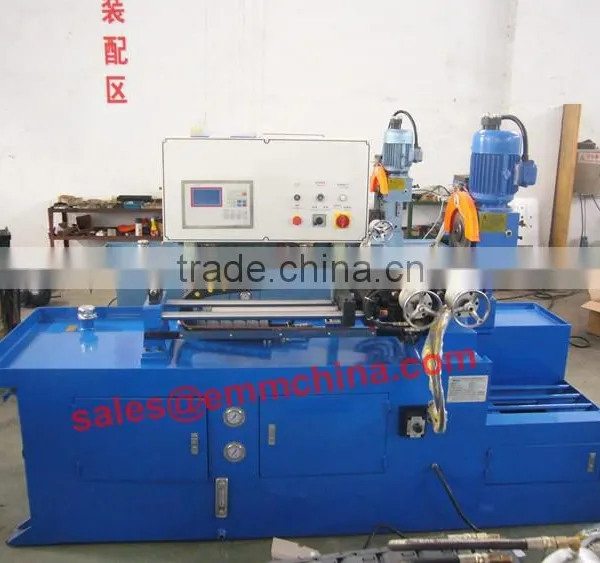

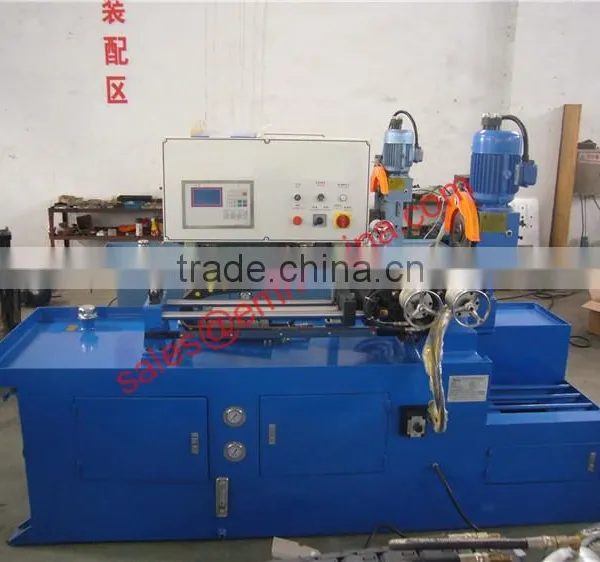

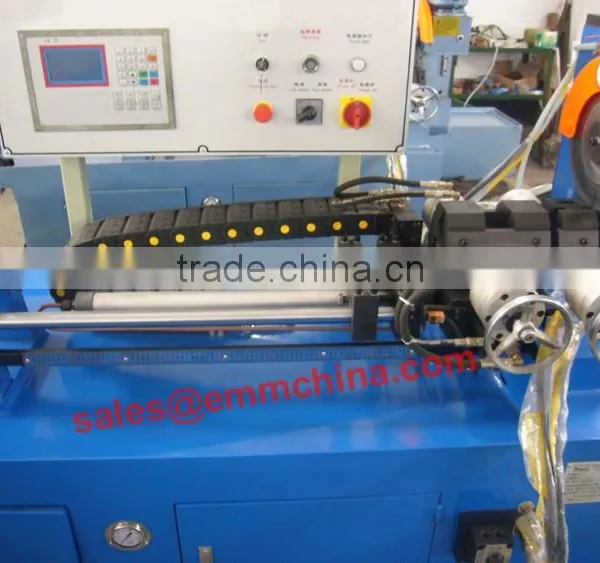

EMM FA275 Automatic Pipe Cutting Machine

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

US$ 1,899 - 12,998 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

EMM

Model Number:

FA275

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name EMM

Model Number FA275

Voltage 380V 50HZ

Rated Power 5.5kw

Dimension(L*W*H) 3880*2150*2000mm

Weight 5000kg, 1500KGS

Certification ISO9001:2008

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

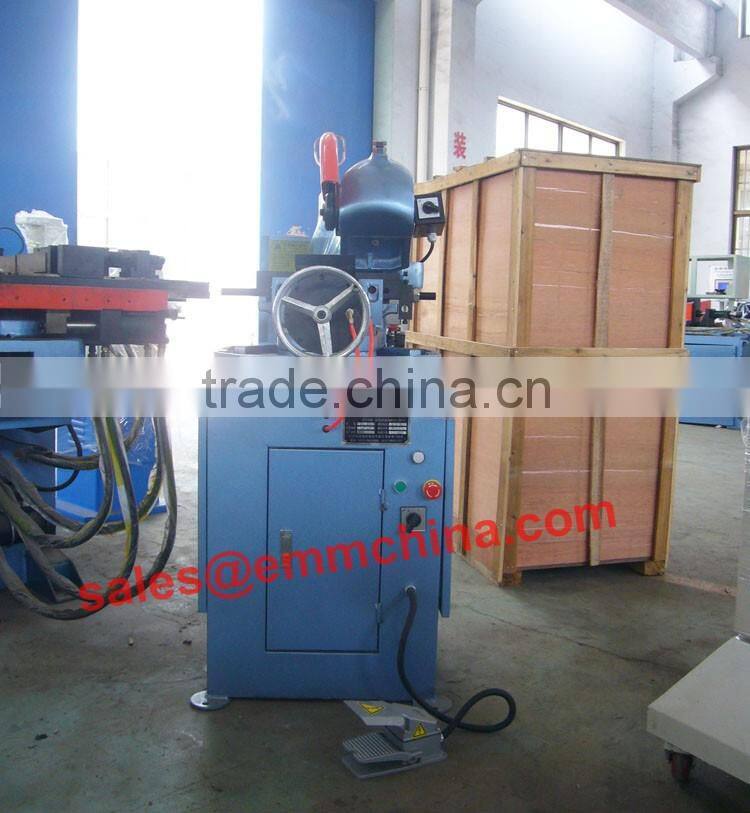

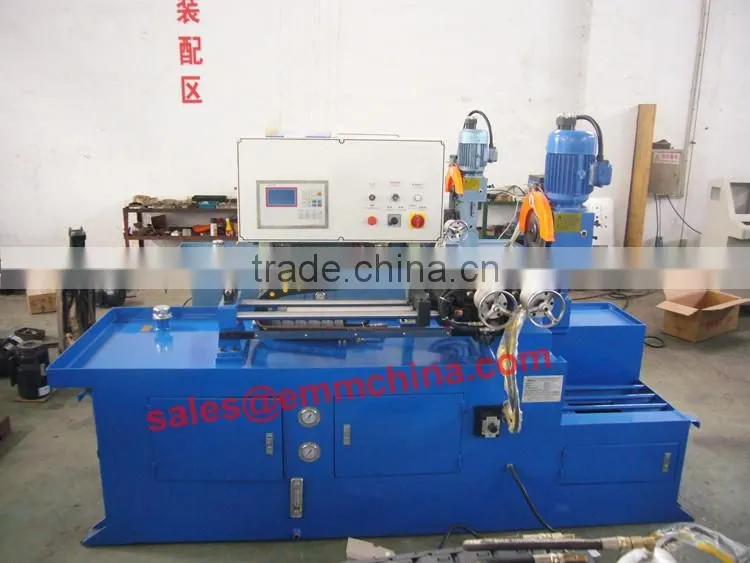

EMM FA275 automatic pipe cutting machine

Product Description

Technical Specification and Capacity

Model			FA275	FA315	FA350	FA400
Main motor			2/4 pole 2/2.4KW	2/4 pole 2/2.4KW	2/4 pole 2/2.4/3KW	2/4 pole 2/2.4/3KW
Main shaft rotating speed			96/48	88/44	48/19	38/19
Suitable saw Blade	OD		Φ250 – 300 mm	Φ250 – 350 mm	Φ250 – 370 mm	Φ250 – 400 mm
	Center Bore		Φ32	Φ32	Φ32	Φ32
	Pin hole		2 x Φ11x65mm PCD	2 x Φ11x65mm PCD	2 x Φ11x65mm PCD	2 x Φ11x65mm PCD
Feeding length			750 x many times

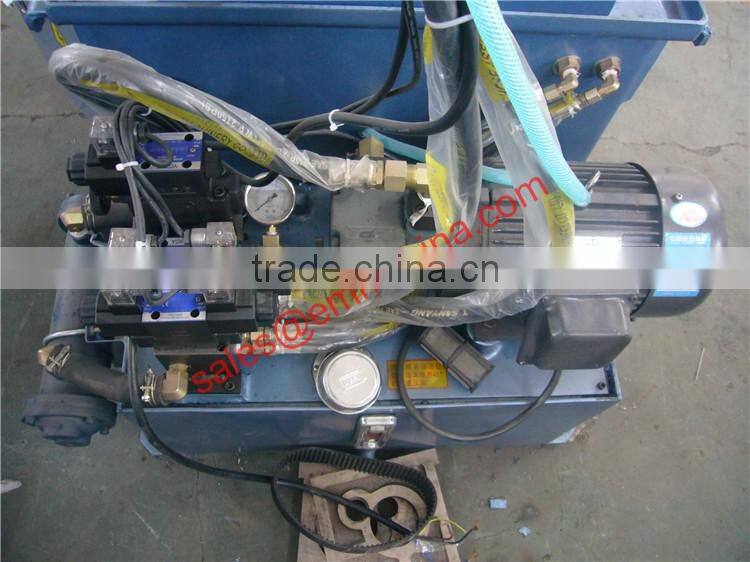

Oil pump system			2.2KW,Pole motor, double –ply pump operating pressure 25-35kg/cm
Cooling system			0.09Kw motor, automatic cooling circulation
Compress air			0.0 – 0.9 Mpa 160N/min
Weight			1100 KGS	1300 KGS	1400 KGS	1500KGS
Packing size
Cutting capacity as reference
sawing profile scale			Φ80	Φ110	Φ125	Φ150
			60 x 60	90 x 90	110 x 110	125 x 125
			60 x 80	90 x 90	110 x 110	125 x 125
			60 x 80	90 x 90	110 x 110	125 x 125
			Φ38	Φ55	Φ75	Φ100
			38	50 x 50	65 x 65	80 x 80

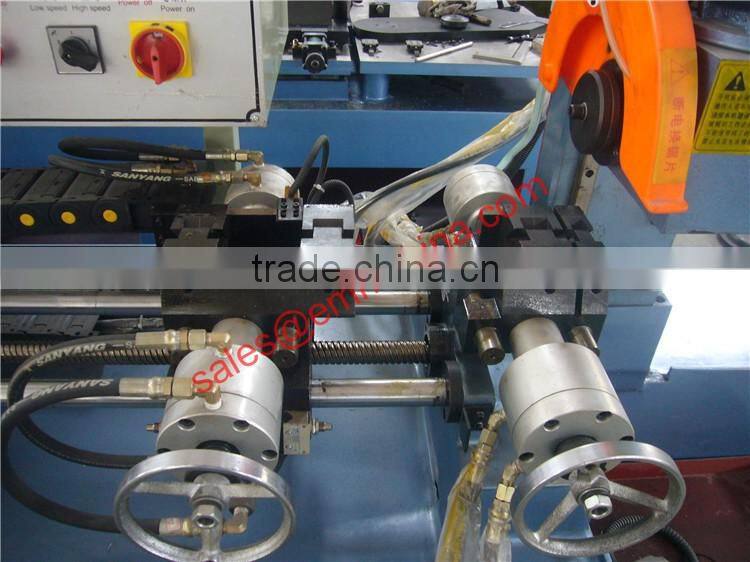

			Using special designed clamping mould, according to diameter to cut 2 – 9 pieces /time
		Special mould dies are not standard configuration should make to order
