Specifications
1. long life2.low noise.
3.high rigidity and precision

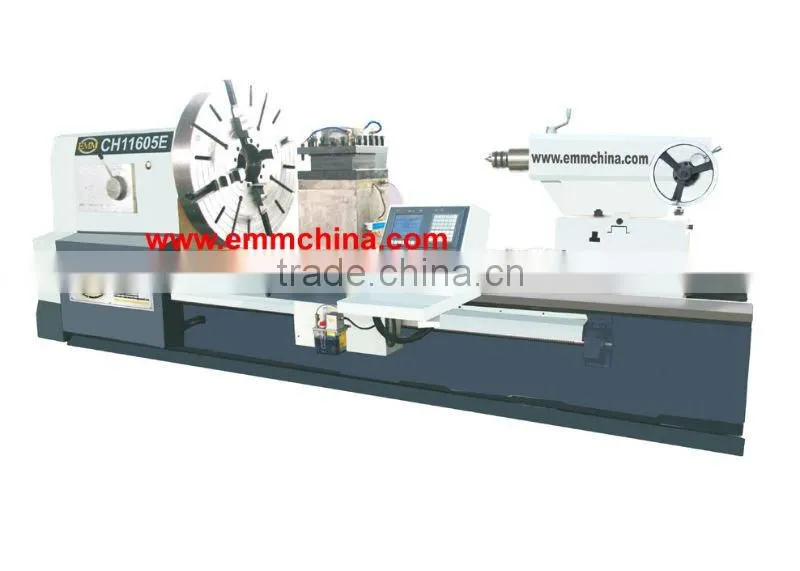

CH11605 cnc lathe hydraulic chuck/cnc lathe machine Features:
1-This machine is a CNC lathe controlled by a microcomputer and driven by step motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).
2-The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.
3-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy.
Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.
4-Infinitely variable speed change for spindle. The spindle bore is 80mm.The spindle system is high in the rigidity and accuracy.
Main specification
Item |
Unit |
CH11605 |
Max. swing over bed |
mm |
φ1600 |
Max. swing over carriage |
mm |
φ1190 |
Width of bed |
mm |
970 |
Max. work piece length |
mm |
5000 |
Max. turning length |
mm |
4800 |
Max. weight between center |
kg |
6000 |
Spindle nose |
|
A2-15 |
Spindle bore |
mm |
φ130 |
Cone hole diameter and taper |
|
φ140 1:20 |
Range of spindle speed |
r/min |
2.5-250 |
Steps of spindle speed(Manual) |
|
manual 24 |
Rapid feed for Longitudinal |
m/min |
8 |
Rapid feed for cross |
m/min |
5 |
Max. travel of cross |
mm |
900 |
Min. input |
mm |
0.001 |
Tool post stations |
|
4ways |
Tool cross section |
mm |
50*50 |
External diameter |
mm |
φ160 |
Taper of bore |
|
MT 80 |
Max. Traverse |
mm |
300 |
X/Z motor torque |
nm |
37/42 |
Main motor power |
kw |
22 |
Cooling pump power |
w |
370 |
Overall dimensions(L*W*H) |
mm |
6200×2280×2300 |
Net weight |
kg |
13500 |
