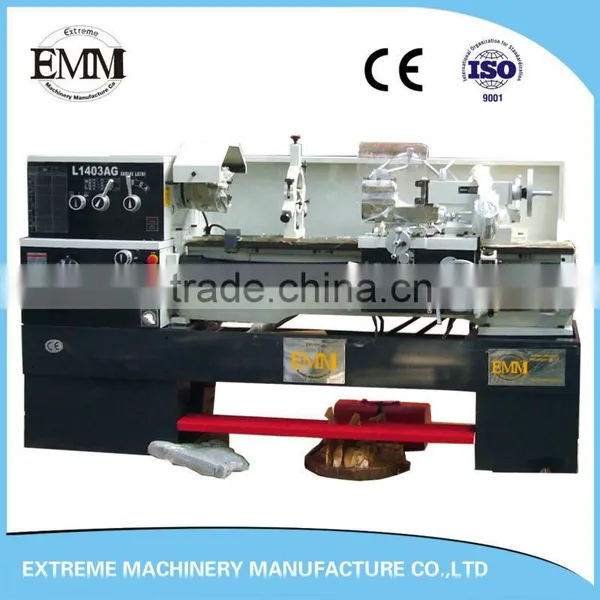

L1065 cnc combination lathe milling machine

FOB Price

USD $34,998 - $65,998 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Manual	Max. Swing Diameter:	350mm	Place of Origin:	Jiangsu, China
Brand Name:	EMM	Model Number:	L1065	Voltage:	380v/220v/415v
Power(W):	750	Dimension(LWH):	2360x1000x1200	Weight:	1760kg
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

L1065 cnc combination lathe milling machine

Product Description

1-Hardened and grinded bed way and gears in headstock are with long life and low noise.

2-Spindle system is of high rigidity and precision.

3-The machine have powerful headstock gear train, high rotating accuracy and smooth running with low noise.

4-An overload safety device is provided on the apron.

5-Has a pedal or an electromagnetic braking device.

Main specification

Model Item			L1065
Max. swing diameter	Over bed	mm	Ø350
Max. swing diameter	Over carriage	mm	Ø185
Max. length of workpiece		mm	1000
Spindle	Spindle bore	mm	Ø40orØ52
	Taper of bore		M.T.No.5 or M.T.No.6
	Number of speeds		12
	Range of speeds	r.p.m	40-1800
Thread cutting	Metric Range/No.		0.5~20mm/24
	Whitworth Range/No.		72~1-5/8t.p.i/61
	D.P. Range/No.		96~3-1/4D.p/45
	Module Range/No.		0.25~10M.P/20
Range of feeds	Longitudinal	mm	0.04-2.46(0.0015"-0.0913")
Range of feeds	Cross	mm	0.03-1.23(0.0006"-0.0365")
Tailstock sleeve	External diameter	mm	Ø60
	Taper of bore	mm	M.T.No.4
	Max. traverse	mm	120
Max. travel of compound rest		mm	100
Max. cross slide travel		mm	210
Max. size of tool shank(W×H)		mm	20×20
Power of main motor(double speeds)		kw	3/4
Overall dimensions(L×W×H)		mm	2360×1000×1200
Net weight		kg	1760
