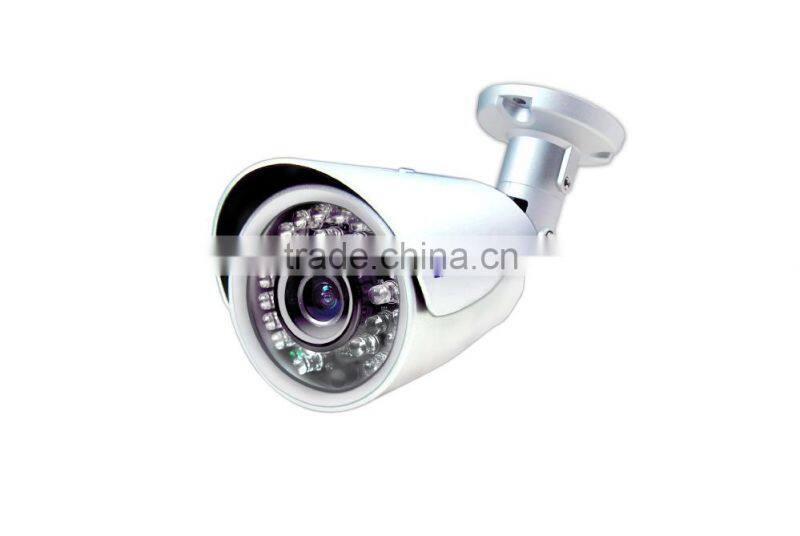

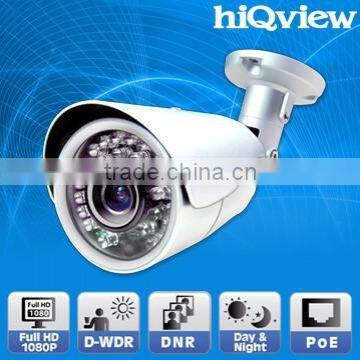

HIQ-6392
Full HD Outdoor IR-20 Weatherproof Bullet IR IP Camera
FEATURES
* Max resolution: 1920 X 1080 (2-Megapixel)
* Full HD 30 fps @ 1080p real-time
* Digital Wide Dynamic Range (D-WDR)
* 3D and 2D Digital Noise Reduction (DNR)
* Day & Night Switch Time Control Manual
* Min. Scene Illumination Color: 0.1 Lux (AGC ON)
B/W: 0.05 Lux (AGC ON)
* IR Distance: 20 meters, 28 pcs IR LEDs
* 2.8mm, F2.0 fixed lens
* Mechanism IR Cut filter for day & night
* IP66 Weather-Proof for outdoor
* H.264/ M-JPEG Compression
* Shutter Speed and Sense Up Adjustable
* Power over Ethernet
* Support mobile phone remote monitoring
* Free bundled 64 CH recording software
Specifications
| Camera | |
| Image Sensor | 1/2.7” CMOS |
| Sensor Resolutions | 2 Megapixel |
| Max Video Resolution | 1920*1080 |
| Sensitivity | Color: 0.1 Lux (AGC ON), B/W: 0.05 Lux (AGC ON) |
| Lens Type | 2.8mm @ F2.0 |
| Angle of View | Horizontal: 111.10° |
| Vertical: 65.1° | |
| ICR | Mechanism IR Cut Filter |
| LED | 28 pcs IR LEDs |
| IR Distance | 20M |
| Video / Audio | |
| Vido Compression | H.264/ MJPEG |
| Video Profile | 1920*1080/ 1280*720/ 640*480/ 320*240/ 176*144 |
| Frame Rate | Up to 30fps @ 1920*1080 |
| Up to 30fps @ 1280*720 | |
| Up to 30fps @ 640*480 | |
| Up to 30fps @ 320*240 | |
| Up to 30fps @ 176*144 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, |
| Sense-up, D-WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, | |
| Day & Night adjustment, Red Gain and Blue Gain, Denoise. | |
| Video Bitrates Adjust | CBR, VBR |
| Audio Support | N/A |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, |
| UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, |
| 802.1X port-based authentication for network protection, QoS/DSCP | |
| Power over Ethernet | Yes |
| System Integration | |
| Triggered Action | Mail, FTP, DO, Save to SD card, Samba |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| General | |
| CPU | Multimedia SoC |
| RAM | 256MB |
| Flash | 16MB |
| I / O | N/A |
| Video out | N/A |
| Power Consumption | DC 12V : IR on 4.21W, IR off 2.4W |
| PoE Max : IR on 5.04W, IR off 2.88W | |
| Water Resistance | IP66 |
| Operation Temperature | Starting Temperature: -10°C ~ 50°C (14°F~122°F) |
| Dimension | 74mm x110mm(φxH) |
| Weight | 450g |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003, |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G, RAM: 1024MB, Graphic card: 128MB |
Product Intoduction of HIQ-6392
hiQview HIQ-6392 is an outdoor bullet camera, which is equipped with 1/2.7” CMOS sensor and has an all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
2-Megapixel high resolution
The images of HIQ-6392 can be compressed into two formats: H.264 and MJPEG. Multiple resolutions are available: 1920*1080 / 1280*720 / 640*480 / 320*240 / 176*144. Under Full HD resolution, HIQ-6390 can create supreme quality images: 30fps@1080p Real-time. Users can choose the suitable streaming format to meet different environmental conditions.
Clear images in bad light condition
The Digital Wide Dynamic Range (D-WDR) feature of HIQ-6392 stands out in monitoring strong backlight or dim light environment. For example, if the camera faces the sun, and a man is standing in front of the camera, usually, because of the strong backlight, the man’s face would be too dark to identify. The D-WDR technology would use different exposures for different objects, making the light contrast much lower, and thus reveal the clear features of the man’s face.
The power of Digital Noise Reduction (DNR)
Image noise can be caused by many factors, such as power interference, heat, and dim light source, resulting in ineffective surveillance work. HIQ-6390 removes image noises by applying DNR technology. It not only makes clearer images, but also reduces video file size.
Night time monitoring
When the sun goes down, it is difficult for typical outdoor cameras to create any clear images. The built-in 28 pcs of 20M light source IR LEDs enable creating clear images under bad light condition. HIQ-6392, an IR camera, is capable of generating valuable pictures in dark environments. IR technology can detect heat emit from objects, making it a powerful tool to identify essential elements at night, such as people and vehicles.
Sustainable in harsh outdoor environment
HIQ-6392 is rated as IP66, meaning it is water- and dust-proof.
HIQ-6392 has a robust housing rated as IP66, meaning that it is water-proof and dust-proof and is reliable for monitoring outdoor environment.
-
Network Deployment
The network deployment of HIQ-6392 is very simple. It provides the installation tool for searching for devices that are already connected to the Internet. This feature alleviates the inconvenience of complex network settings.
Power Over Ethernet (PoE) cuts cost sharply
PoE technology enables power and internet connection to be provided by the same cable. Therefore, not only that power outlets are no longer needed, but more importantly, the space to place the IP surveillance system is saved, and the cost is reduced sharply.
Free Bundled with VMS ( Video Management System) “hiQview Vision”
HIQ-6392 is bundled with powerful VMS software, which supplies users with omni-bearing video management and surveillance. “hiQview Vision” is free bundled with our IP cameras, and it could manage up to 64 IP cameras.
-
Outdoor Applications
This camera is made with day/night dual-purpose, and is suitable for monitoring open environments and important entries, such as parking lots, bank lobbies, retail stores, and train stations.
