HIQ-6487

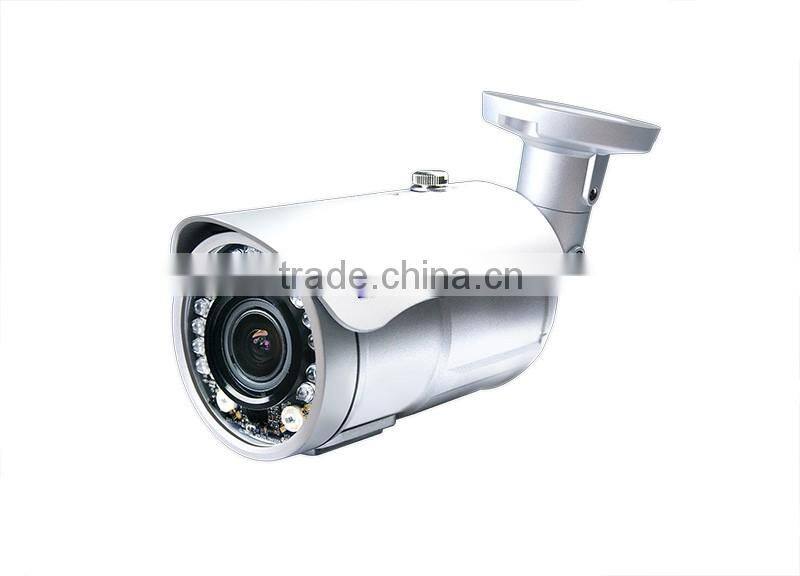

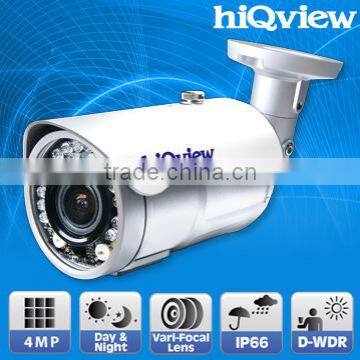

4-Megapixel Outdoor Weather Proof Bullet IP Camera
FEATURES
* Max. resolution: 2688 x 1520(4-Megapixel)
* 1/3" Megapixel CMOS sensor
* 30fps @ 2688x1520 real-time
* 2.8~12 mm @ F1.4Vari-Focal lens
* Digital Wide Dynamic Range (D-WDR)
* Digital Noise Reduction (DNR)
* Min. Scene Illumination Color: 0.08 Lux (AGC on)
B/W: 0.03 Lux (AGC on)
* IR Distance: 30 meters (LEDs: 28 Units 5φ + 2 Units High Power, 850nM)
* Mechanism IR Cut filter for day / night function
* Day & Night Manual Switch Time Control
* H.264 / M-JPEG compression
* IP66 Weather-Proof for outdoor application
* 2-way audio
* Support DI/DO
* Power over Ethernet
* Support mobile phone remote monitoring
* Free bundled 64 CH Video Management System
SPECIFICATIONS
| Camera | |
| Image Sensor | 1/3" CMOS |
| Sensor Resolutions | 4 Megapixel |
| Max. Resolutions | 2688*1520 |
| Sensitivity | Color : 0.08 Lux (AGC On), B / W: 0.03 Lux (AGC On) |
| Lens Type | Vari-focal Lens 2.8-12 mm @ F1.4 |
| Angle of View | Horizontal: 34.47°~92.42° |
| Veritical: 19.42°~48.24° | |
| ICR | Mechanism IR Cut Filter |
| LED | 28 Units 5φ + 2 Units High Power, 850nM |
| IR Distance | 30M |
| Video / Audio | |
| Vido Compression | H.264 / M-JPEG |
| Video Profile | 2688*1520 / 1920*1080 / 1280*720 / 640*360 |
| Frame Rate | Up to 30fps @ 2688*1520 |
| Up to 30fps @ 1920*1080 | |
| Up to 30fps @ 1280*720 | |
| Up to 30fps @ 640*360 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, |
| AGC, Night Mode, WDR, Flip, Mirror, Noise Reduction, | |
| Day&Night Adjustable | |
| Video Bitrates Adjust | CBR, VBR |
| Audio | G.711(64K) and G.726(32K,24K) audio compression |
| Input : 3.5mm phone jack | |
| Output: 3.5mm phone jack | |
| Support 2-way | |
| Micro SD Card | |
| RecordingTrigger | Motion Detection, IP check, Network break down, Schedule |
| Video Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, |
| UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, |
| 802.1X port-based authentication for network protection, QoS/DSCP | |
| Power over Ethernet | Yes (IEEE802.3af) |
| System Integration | |
| Triggered Action | Mail, FTP, Save to SD card, SAMBA |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| General | |
| CPU | Multimedia SoC |
| RAM | 512MB |
| Flash | 32MB |
| I / O | 1 DI/ 1 DO |
| Video Out | N/A |
| Power | DC 12V Max: 6.36W(IR ON), 3.24W(IR OFF) |
| PoE Max: 8.16W(IR ON), 4.32W(IR OFF) | |
| Water Resistance | IP66 |
| Operation Temperature | -20°C ~ 60°C (*IR OFF) *IR ON: 50°C |
| Dimension | 77.4 mm (Ø) x 125.5mm (H) |
| Weight | 720g |
| View System Requirements | |
| OS | Windows 7, XP |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G,RAM: 1024MB, Graphic card: 128MB |
| *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. | |
Product Intoduction of HIQ-6487
hiQview HIQ-6487 is an outdoor weather proof bullet IP camera, which is equipped with 1/3" CMOS sensor, 2.8~12 mm @ F1.4Vari-Focal lens, and has an all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
l 4-Megapixel high resolution
The images of HIQ-6487 can be compressed into two formats, H.264 and MJPEG. Multiple resolutions are available: 2688*1520 / 1920*1080 / 1280*720 / 640*360. Under 4-Megapixel resolution, HIQ-6487 can create supreme quality images: 30 fps @ 2688x1520 (4-Megapixel) real-time. Users can choose the suitable streaming format to meet different environmental conditions.
l Sustainable in harsh outdoor environment
HIQ-6487 is rated as IP66, meaning it is water proof and dust proof.
HIQ-6487 has a robust housing rated as IP66, meaning that it is water-proof and dust-proof and is reliable for monitoring outdoor environment.
l Clear images in bad light condition
Applied with Digital Wide Dynamic Range (D-WDR) technology, HIQ-6487 performs well even under difficult light conditions, such as strong backlight or dim light. Suppose the camera faces the sun, and a man is standing in front of it, usually the man’s face would be too dark to see. D-WDR uses different exposures for different objects, lowers the light contrast, and therefore can reveal the clear features of the man’s face.
l The power of Digital Noise Reduction (DNR)
Image noise can be caused by many factors, such as power interference, heat, and dim light source, resulting in ineffective surveillance work. HIQ-6487 removes image noises by applying DNR technology. It not only makes clearer images, but also reduces video file size.
l Night time monitoring
When the sun goes down, it is difficult for typical outdoor cameras to create any clear images. On the contrary, HIQ-6487, an IR camera, is capable of generating valuable pictures in dark environments. The built-in 30M light source with 28 Units 5φ + 2 Units High Power, 850nM IR LEDs enables to create clear images under bad light condition. IR technology can make it a powerful tool to identify essential elements at night, such as people and vehicles.
l Network deployment
The network deployment of HIQ-6487 is simple and quick. It provides the installation tool, which can search for the device that is already connected to the Internet. This feature alleviates the inconvenience of complex network settings.
l Power Over Ethernet (PoE) cuts cost sharply
PoE technology enables power and internet connection to be provided by the same cable. Therefore, not only that power outlets are no longer needed, but more importantly, the space to place the IP surveillance system is saved, and the cost is reduced sharply.
l Free Bundled with VMS ( Video Management System) “hiQview Vision”
HIQ-6487 is bundled with powerful VMS software, which supplies users with omni-bearing video management and surveillance. “hiQview Vision” is free bundled with our IP cameras, and it could manage up to 64 IP cameras.
l Outdoor Applications
This camera is made with day/night dual-purpose, and is suitable for monitoring open environments and important entries, such as retail stores, parking lots, classrooms, bank lobbies, and ATMs.
