HIQ-6383

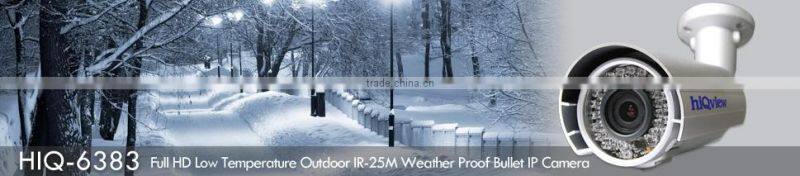

Low Temperature Full HD Outdoor IR-25M Weather Proof Bullet IP Camera

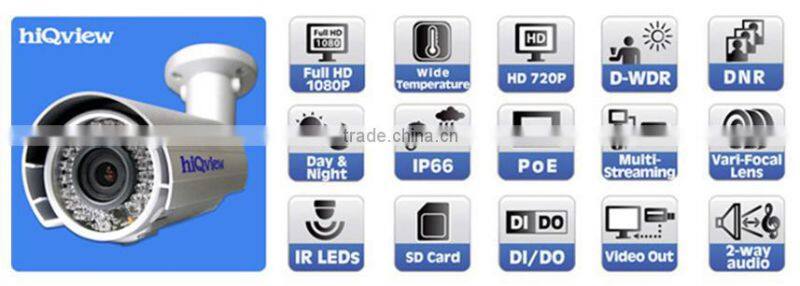

FEATURES
* Operating temperature -40°C~50°C (-40°F ~ 122°F )with heater
* 1/2.7" Full HD CMOS sensor
* Max resolution: 1920 X 1080
* Full HD 30 fps @ 1080p real-time
* Digital Wide Dynamic Range (D-WDR)
* 3D and 2D Digital Noise Reduction (DNR)
* Min. Scene Illumination Color: 0.1 Lux (IR Off)
********************** B/W: 0 Lux (IR On)
* IR Distance: 25 meters, 35 pcs IR LED
* 3.6~16mm F1.2 Megapixel vari-focal lens
* Mechanism IR Cut filter for day / night function
* H.264 / JPEG / MPEG-4 multi-codec and multi-streaming
* IP66 Weather-Proof for outdoor application
* Adjustments for Day & Night / Shutter Speed / Sense-Up / External vari-focal lens
* 3- Axis Bracket Management
* Cable through bracket design
* Power over Ethernet
* Support mobile phone remote monitoring
* Support DI/DO
* SD card backup for easy storing and playback image / video
* Free bundled 64 CH recording software
SPECIFICATIONS
| Camera | |
| Image Sensor | 1/2.7” CMOS |
| Sensor Resolutions | 2 Megapixel |
| Max Video Resolution | 1920*1080 |
| Sensitivity | Color: 0.1 Lux (IR On), B/W: 0 Lux (IR Off) |
| Lens Type | Vari-Focal 3.6~16mm F1.2 |
| Angle of View | Horizontal:23.6°~97.9° |
| Vertical: 14.2°~51.6° | |
| Shutter Speed | 1/5 ~ 1/10000s |
| ICR | Mechanism IR Cut Filter |
| DC IRIS | Yes |
| LED | 35 pcs IR LEDs, 850nm |
| IR Distance | 25M |
| Video / Audio | |
| Vido Compression | H.264/ M-JPEG/ MPEG-4 |
| Video Profile | 1920*1080/ 1280*720/ 640*480/ 320*240/ 176*144 |
| Frame Rate | Up to 30fps @ 1920*1080 |
| Up to 30fps @ 1280*720 | |
| Up to 30fps @ 640*480 | |
| Up to 30fps @ 320*240 | |
| Up to 30fps @ 176*144 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, |
| Sense-up, D-WDR, Flip, Mirror, De-noise, Day&Night adjustment, | |
| White Balance | |
| Video Bitrates Adjust | CBR, VBR |
| Audio Compression | G.711(64kbps) and G.726(32kbps/24kbps) audio compression |
| Audio Support | 2-way |
| 3GPP Cell Phone | 3GPP mobile surveillance |
| SD Card | |
| RecordingTrigger | Motion Detection, IP check, Network break down, Schedule, DI |
| Video Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, |
| PPPoE, DHCP,DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based |
| authentication for network protection | |
| Power over Ethernet | Yes |
| System Integration | |
| Triggered Action | Mail, FTP, DO, Save to SD card, Samba |
| Pre / Post Alarm | Yes, configurable |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| General | |
| CPU | ARM Cortex A9 |
| RAM | 256MB |
| Flash | 16MB |
| I / O | 1 DI / 1 DO |
| Video out | 1.0Vp-p,75Ω, BNC |
| Audio in | 3.5mm phone jack |
| Audio out | 3.5mm phone jack |
| Power consumption | Normal: |
| DC 12V, IR on 5.76W, IR off 3.72W | |
| PoE: 7.7W(IR on), 4.8W(IR off) | |
| With heater: | |
| DC 12V, IR on 12.0W, IR off 10.6W | |
| PoE: 15.1W(IR on), 13.3W(IR off) | |
| Water Resistance | IP66 |
| Operation Temperature | Normal: |
| Starting/Working temperature -10°C to 50°C (14°F to 122°F) | |
| With heater: | |
| Starting/Working temperature -40°C to 50°C (-40°F to 122°F) | |
| Dimension | 83mm x180mm(φxH) |
| Weight | 1170g |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003, |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G, RAM: 4096MB, Graphic card: 128MB |
Product Intoduction of HIQ-6383
HIQ-6383 has a sophisticated design, which includes heater inside. The heater enables HIQ-6383 operates well under harsh circumstances, such as low temperature environments and high temperature environments. HIQ-6383 can sustain in -40°C~50°C (-40°F~122°F).

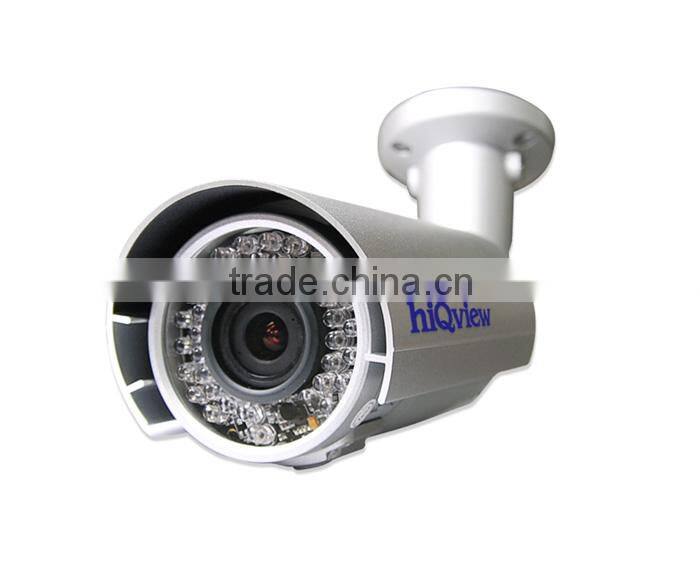

HIQ-6383 is an outdoor bullet camera, which is equipped with 1/2.7” Megapixel CMOS sensitization component and has all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
The images captured by HIQ-6383 can be compressed into three formats: H.264/MPEG-4/M-JPEG, and have multiple resolutions: Full HD/HD/VGA/QVGA/QCIF. Under Full HD resolution, HIQ-6383 is capable of outputting excellent images: 30fps@1080p Real-time. Users can choose the suitable streaming format to meet different environmental concerns.
The design for the device is beautiful as well as practical: the aluminum material and IP66-rated water-proof and dust-proof characteristics of HIQ-6383 make it safe and reliable to be applied to outdoor environments.
The external vari-focal lens 3.6~16mm F1.2 of HIQ-6383 is an exclusive patent design, which provides users with easy camera installation and adjustment. The built-in 35 pcs IR LEDs, 25 meters light source, and mechanism IR cut filter make the images captured by HIQ-6383 clear under any light source, in day or night time.
The network deployment of HIQ-6383 is simple and quick. It provides the installation tool, which automatically searches for IP cameras that already connect to the Internet. This “auto-search” feature alleviates the inconvenience of complex network settings for users.
HIQ-6383 supports built-in 802.3at, 30.0 Watt of Power over Ethernet switch, thus users don’t need to additionally install the power lines. Consequently, the total power line cost is reduced sharply.
HIQ-6383 provides surveillance functions including DI/DO, and Micro SD card local storage. The GUI design is based on the principle of user-friendly and easy manipulation.
The NVR software is freely provided with HIQ-6383. It supplies users with omni-bearing video management and surveillance.
HIQ-6383 is made with day/night dual-purpose, which is suitable for open environments and important entries surveillance.
