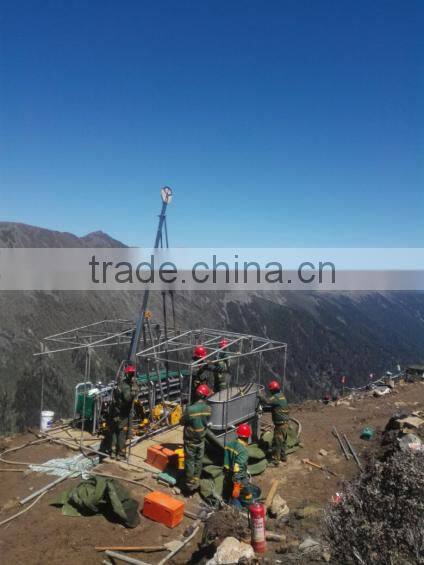

Top Quality Realible Fast Light Pro-environment Hydraulic Operation Platform Portable Diamond Core Drill Rig Geological Engineer
The Taishan series man-portable drilling rigs are suitable for core drill and general geological engineering exploration drill. The drill is modular design and made of high-strength aluminum materials, which ensure high standards of toughness while greatly reduce the weight of rig. The max component weights 160kg, which is convenient for human transportation in the road-limited area.
LIGHT
Modularized design, less than 160kg weight of the weightiest module, suitable for human handling. Drilling angle variable between 45 to 90. Light weight design, more than 80% of the structural parts are high strength aviation aluminum.
FAST

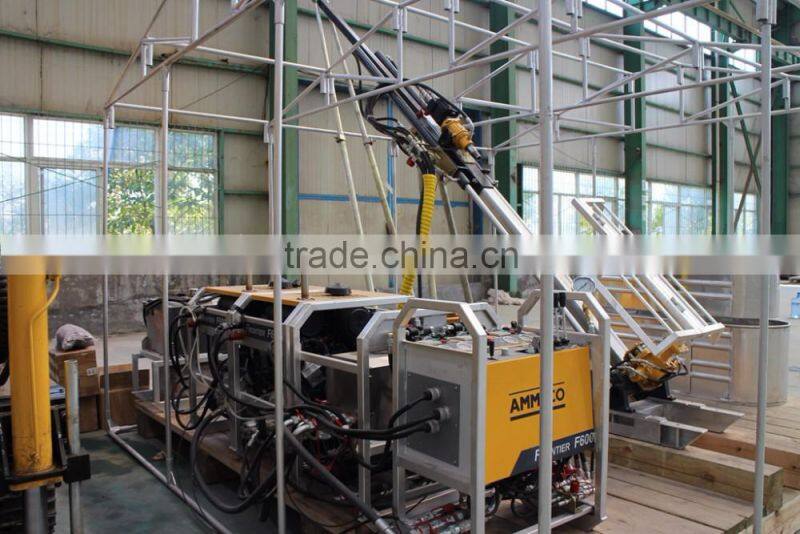

4m*4m working platform, 2 hours assembling and disassembling, fast shifting between holes.Original KUBOTA diesel engine is strong and powerful.Thin-wall drill rod and drill bit perform fast drilling.
Pro-environment
The rig can be easily handled by manpower and no roads will be needed.As footprints traces are limited and restoration of the environment is relatively simple, the influence on the natural environment is very small.
RELIABLE
Hydraulic system integration, optimize the pipeline, enhance the reliability;Hydraulic automatic protection system to prevent accidents.
Product Parts:
1. Drill Frame: This drill is made of high-strength aluminum materials, durable and reliable.
2 Engine:The diesel engine is KUBOT, powerful, low noise, and adapt multifarious environment.
3 Hydraulic Operation Platform: Easy to operate, the system pressure, the blessing force and bit load parameters are displayed on the meter.
4 Oil tank: Quick coupler to prevent pollution, water-cooling system to ensure oil temperature is lower.
Weight: 144kg.
L*W*H: 876*559*940mm
5 Wireline winch: Hoist with automatic rope system, very fast.
Weight: 60kg.
L*W*H: 660*400*365mm
6 Clamp: The clamp can be automatically synchronized control, to prevent the drainage system.
Weight: 23kg

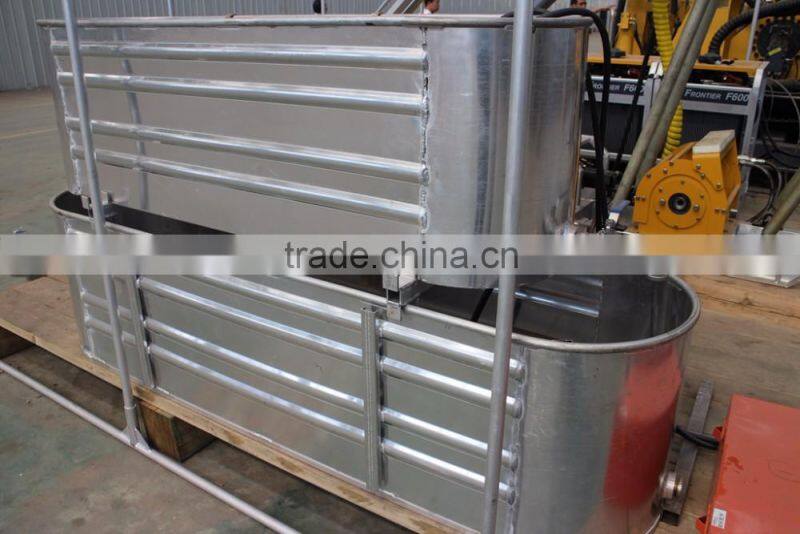

7 Fluid Circulation System :Mud tank with level 2 design, 1 ton capacity, 2 lightweight infinitely mud mixer.
Weight: 80kg.
L*W*H: 1920*520*580 2300*610*600mm
8 Mud Pump: Plunger pump with max 80L/min flow rate and max 75bar pressure output. Weight: 59kg .L*W*H: 810*480*340mm
|
ITEM |
F200 |
F600 |
F800 |
F1000 |
Drill capacity |
BTW m |
200 |
600 |
800 |
1000 |
NTW m |
120 |
400 |
600 |
760 |
|
HTW m |
60 |
220 |
400 |
500 |
|
Rotator |
RPM |
0-1300 |
0-1350 |
0-1400 |
1400 |
Max torque |
400 |
600 |
1000 |
2000 |
|
Max lifting |
32 |
100 |
110 |
110 |
|
Hoist |
Capacity of hoist |
600 |
850 |
850 |
850 |
Diameter of steel wire |
5 |
5 |
5 |
5 |
|
Length of steel wire |
240 |
650 |
800 |
1000 |
|
Mast |
Height of mast |
3.5 |
5.5 |
5.5 |
8 |
Feed stroke |
1.3 |
1.8 |
1.8 |
1.8 |
|
Angle of drill |
45-90° |
45-90° |
45-90° |
45-90° |
|
Clamp |
Max diameter of drill pipe |
PQ |
PQ |
PQ |
PQ |
Hydraulic |
Full hydraulic |
||||
Desel engine |
Desel |
Kohler KDW1003 |
Kobuta D1105T |
Kobuta V1505T |
Kobuta V1505T |
Power |
2*19 Kw |
3*24 Kw |
3*33 Kw |
3*33 Kw |
|
Mud pump |
Model |
Triplex Plunger |
|||
Flow and Pressure |
80Lpm 75bar |
2100Lpm 70bar |
|||
Style |
Hydraulic drive |
||||
Pre-Sales Service
-Quotation and Technical Consulting Support.
-Brochure, Picture and Video for Reference.
-Factory Visit and Inspection.
After-Sales Service
-Free Training for installation and operation of drilling rig in China.
-Engineers available for technical guidance at work site overseas.
About the portable diamond core drill rig:
1. What’s the application for your drilling rigs?
-Commonly for water well/project, core sampling, soil testing, prospection of mineral and oil, and so on.
2. The capacity of caliber/diameter, depth of your rigs?
-Generally 30-200m for water well drilling, 30-1000m for core sample drilling, contact for more details.
3. What soil/land condition does your rig working for?
A. Water drilling for soil, sand, weathered land, rocky area.
B. Core drilling for soil, sand, soft and hard rock bed, or mixed one.
C. DTH drilling for half tough land, hard rocky land.
Please contact us for more details and model selection suggestion.
Whatsapp: +86 15538139407
Face book: Yu Qiu
Twitter: amberqiu9
Skype: cbyyqq
