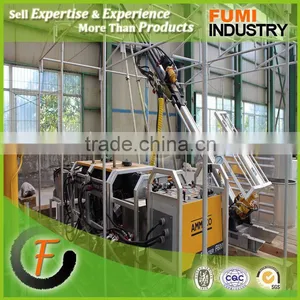

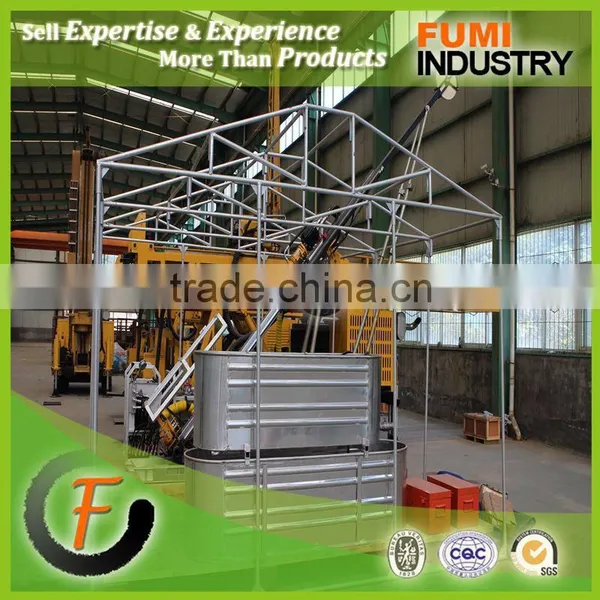

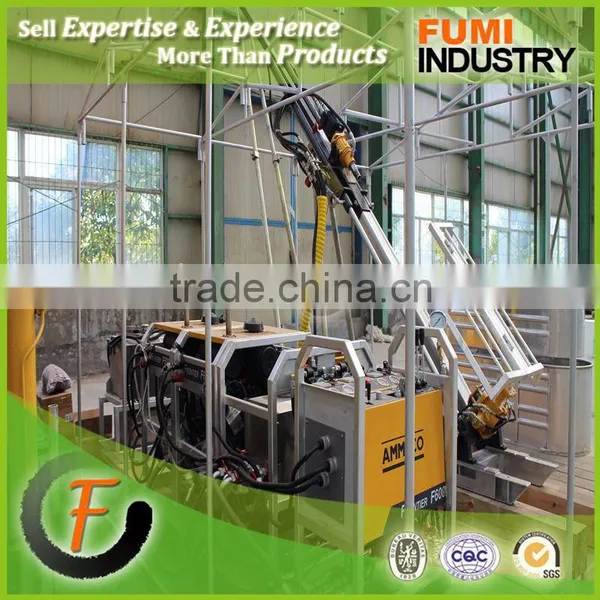

Best Sale Light 1000m Easy Operation Popular Used Portable Water Well Drilling Rig

LIGHT

Modularized design, less than 160kg weight of the weightiest module, suitable for human handling. Portable water well drilling rig angle variable between 45 to 90. Light weight design, more than 80% of the structural parts are high strength aviation aluminum.

FAST

4m*4m working platform, 2 hours assembling and disassembling, fast shifting between holes.Original KUBOTA diesel engine is strong and powerful.Thin-wall drill rod and drill bit perform fast drilling.

 Pro-environment

The portable water well drilling rig can be easily handled by manpower and no roads will be needed.As footprints traces are limited and restoration of the environment is relatively simple, the influence on the natural environment is very small.

RELIABLE

Hydraulic system integration, optimize the pipeline, enhance the reliability;Hydraulic automatic protection system to prevent accidents.

Product Parts:

1. Drill Frame: This portable water well drilling rig is made of high-strength aluminum materials, durable and reliable.

2 Engine:The diesel engine is KUBOT, powerful, low noise, and adapt multifarious environment.

3 Hydraulic Operation Platform: Easy to operate, the system pressure, the blessing force and bit load parameters are displayed on the meter.

4 Oil tank: Quick coupler to prevent pollution, water-cooling system to ensure oil temperature is lower.

Weight: 144kg.

L*W*H: 876*559*940mm

5 Wireline winch: Hoist with automatic rope system, very fast.

Weight: 60kg.

L*W*H: 660*400*365mm

6   Clamp: The clamp can be automatically synchronized control, to prevent the drainage system.

Weight: 23kg

 7  Fluid Circulation System :Mud tank with level 2 design, 1 ton capacity, 2 lightweight infinitely mud mixer.

Weight: 80kg.

L*W*H: 1920*520*580  2300*610*600mm

 8  Mud Pump: Plunger pump with max 80L/min flow rate and max 75bar pressure output. Weight: 59kg .L*W*H: 810*480*340mm

Pre-Sales Service

-Quotation and Technical Consulting Support.

-Brochure, Picture and Video for Reference.

-Factory Visit and Inspection.

After-Sales Service

-Free Training for installation and operation of drilling rig in China.

-Engineers available for technical guidance at work site overseas.

 About the portable water well drilling rig:

1. What’s the application for your drilling rigs?

-Commonly for water well/project, core sampling, soil testing, prospection of mineral and oil, and so on.

2. The capacity of caliber/diameter, depth of your rigs?

-Generally 30-200m for water well drilling, 30-1000m for core sample drilling, contact for more details.

3. What soil/land condition does your rig working for?

A. Water drilling for soil, sand, weathered land, rocky area.

B. Core drilling for soil, sand, soft and hard rock bed, or mixed one.

C. DTH drilling for half tough land, hard rocky land.

Please contact us for more details and model selection suggestion.
