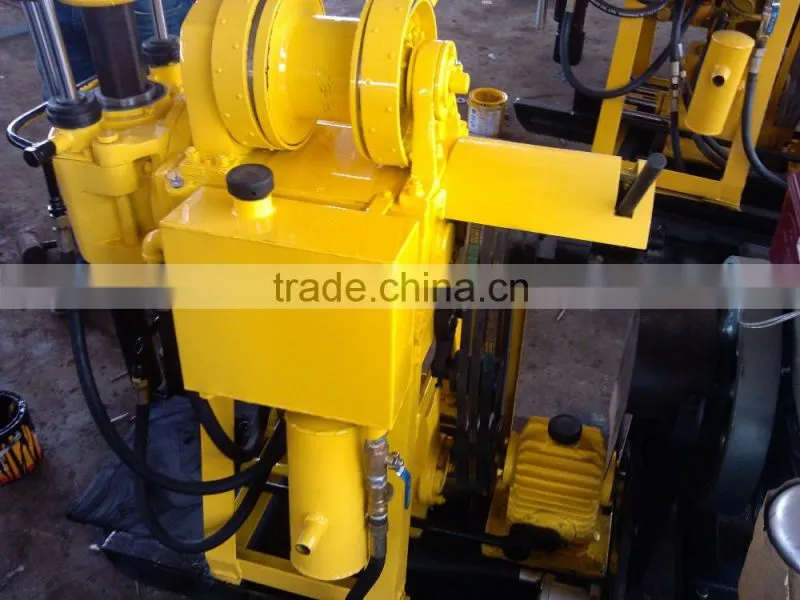

Easy Operation Official Manufacturer Wide
Performamce Hydraulic Small Core Drilling Rig
The technical parameters of small core drill rig | ||||
Tech parameter |
Model |
HZ-130Y/130YY |
HZ-180Y/180YY |
HZ-200Y/200YY |
Drilling depth(m) |
130 |
180 |
200 |
|
Open hole dia.(mm) |
220 |
220 |
325 |
|
End hole dia.(mm) |
75 |
75 |
75 |
|

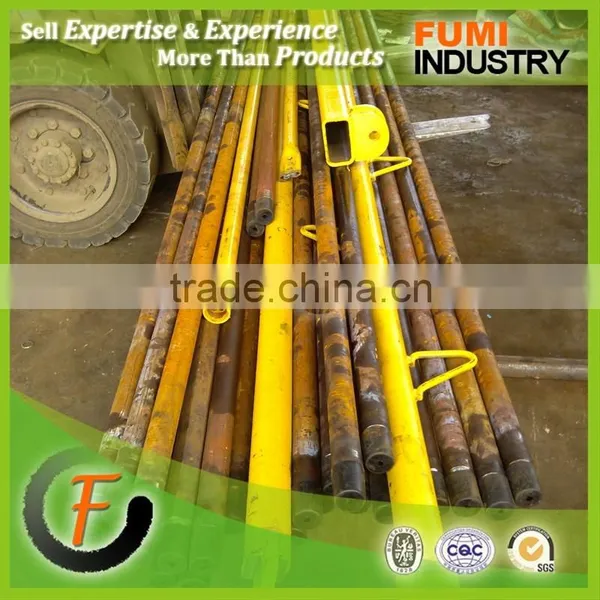

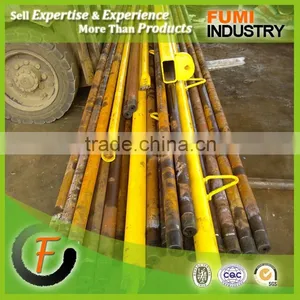

Drill rod dia.(mm) |
42-60 |
42-60 |
42-60 |
|
Drill angle(°) |
90-75 |
90-75 |
90-75 |
|
Matching power(Kw) |
13.2 |
13.2 |
14.7 |
|
Weight without power(kg) |
600/740 |
620/750 |
880/970 |
|
Dimension(m) |
2.4*0.8*1.4 |
2.4*0.8*1.3 |
2.7*0.9*1.5 |
|
About Our Product

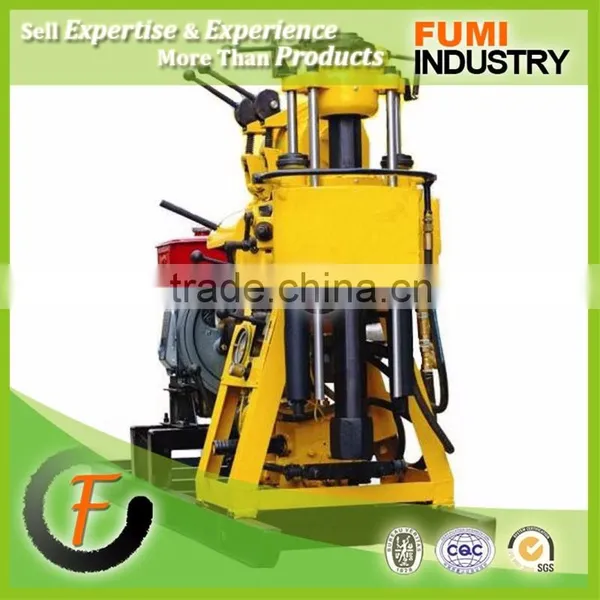

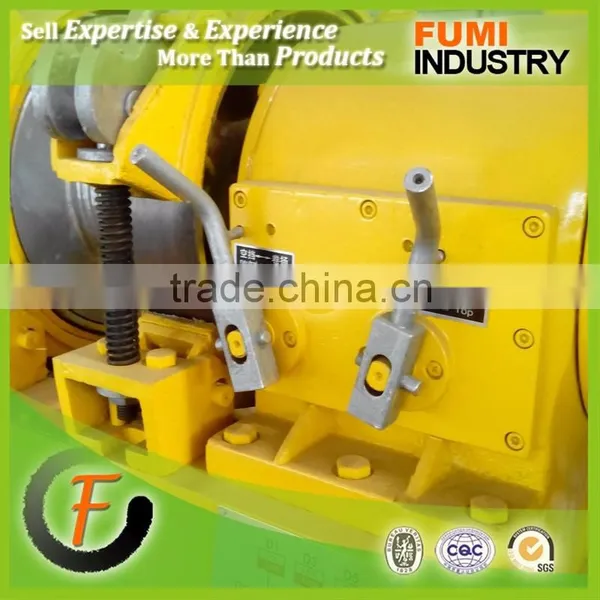

Small core drill rig is a light weight drilling rig. Small core drill rig is widely used for general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells andearthcentral air conditioning wells.
Feed by hydraulic cylinder, the efficiency of small core drill rig is higher and it can save labor. The small core drill rig is equipped with our national patent technology---taper clutch,with characteristics of strong torque transmission, easy operation and free maintenance.
Vertical spindle are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geological conditions.
Pre-Sales Service
-Quotation and Technical Consulting Support.
-Brochure, Picture and Video for Reference.
-Factory Visit and Inspection.
After-Sales Service
-Free Training for installation and operation of drilling rig in China.
-Engineers available for technical guidance at work site overseas.
1. What’s the application for your drilling rigs?
-Commonly for water well/project, core sampling, soil testing, prospection of mineral and oil, and so on.
2. The capacity of caliber/diameter, depth of your rigs?
-Generally 30-200m for water well drilling, 30-1000m for core sample drilling, contact for more details.
3. What soil/land condition does your rig working for?
A. Water drilling for soil, sand, weathered land, rocky area.
B. Core drilling for soil, sand, soft and hard rock bed, or mixed one.
C. DTH drilling for half tough land, hard rocky land.
Please contact us for more details and model selection suggestion.
