Home > Products > New Products > Good Quality Double Roller Bearing Type Tyre Rubber Powder Production Line
Good Quality Double Roller Bearing Type Tyre Rubber Powder Production Line
- 10 Set / Sets per Month
- QINGDAO
- T/T
Product Details
| Type: | Other, Rubber crushing mill | Place of Origin: | Shandong, China | Brand Name: | JINRUNQI |
| Model Number: | XKP | Voltage: | 440V | Power(W): | 20KW |
| Dimension(L*W*H): | 1785x800x1520mm | Weight: | 38T, 7500-18500kg | Certification: | CE ISO |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
rubber granule making machine
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.

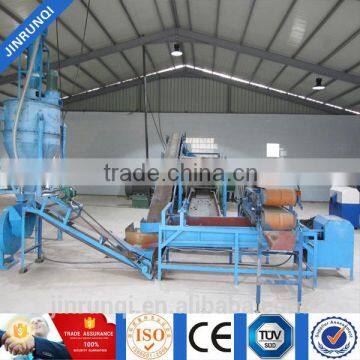

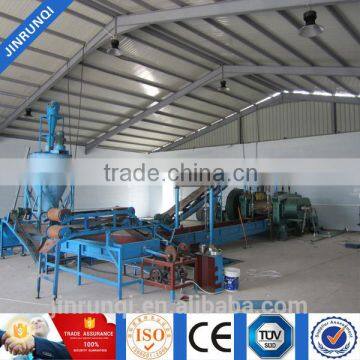

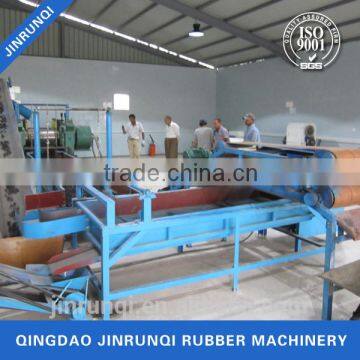

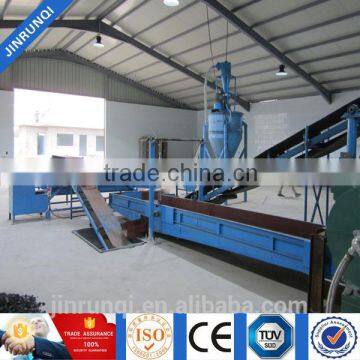

Tyre Rubber Powder Production Line
8:00-20:00(China time) from Mon to Sat: Reply in 30 minutes
Tyre Rubber Powder Production Line

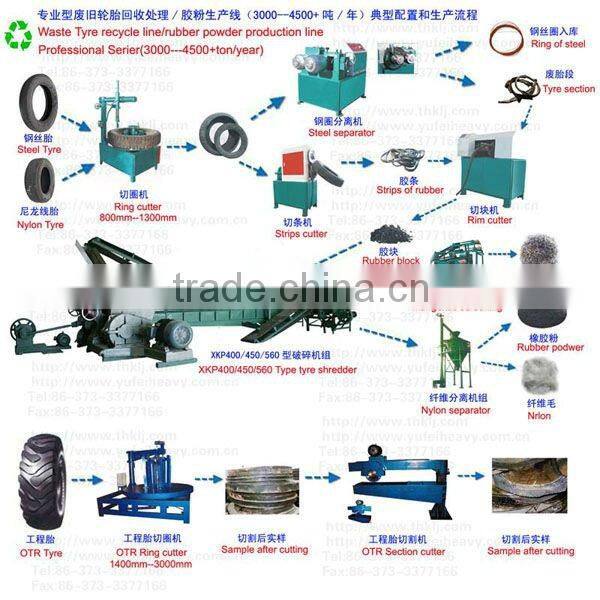

Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter.
Tyre Rubber Powder Production Line
1-1. Ring cutter 1 set
| Item | Specification |
Motor power | 5.5 KW | |
Speed of main screw | 46.8 r/min | |
MAX Diameter of tyre | 1200mm | |
Dimension | 1100*900*1700mm | |
Weight | 300kg |
1-2. Loop machine 1 set
| Item | Specification |
Motor power | 15 KW | |
Linear speed of front roller | 15.5 m/min | |
Ratio of speed | 1.1 | |
Dimension | 1520*1150*12101mm | |
Weight | 1300kg |
1-3.Strip cutter 1 set
| Item | Parameter |
Motor Power | 5.5kw | |
Disc Diameter | 380mm | |
Rotate Speed | 18.4r/min | |
Dimension | 1290*870*1550 | |
Weight | 720kg |
1-4. Block cutter 1 set
| Item | Specification |
Motor power | 11kw | |
Speed of main screw | 420 r/min | |
Out diameter of cutter | 200mm | |
Dimension | 1130*830*1100 | |
Weight | 420kg |

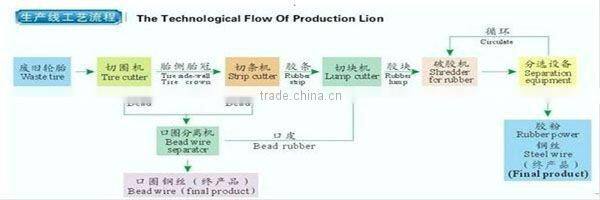

Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.
Tyre Rubber Powder Production Line

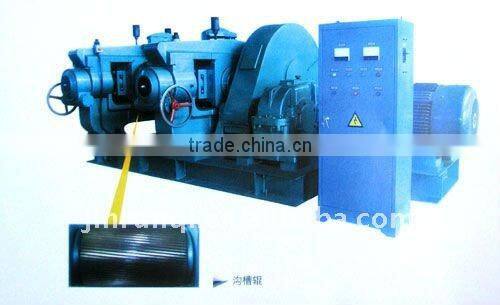

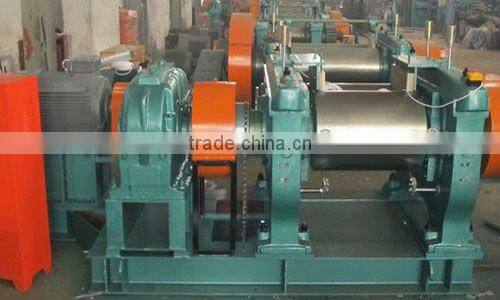

1-5.Rubber crusher 1 set
Model | XKP-560 |
Working diameter of front roller(mm) | 560 |
Working diameter of rear roller(mm) | 510 |
Working length of rollers(mm) | 800 |
Working linear speed of front roller(m/min) | 25.56 |
Friction ratio of front and rear roller | 1:1.30 |
Max gap | 8 |
Capacity (kg) |
1500 |
Power(KW) | 90 |
Overall size(l*w*h) | 5064*2284*1978 |
Weight(kg) | 19000 |
1-6.Conveyor, 1-7. Magnet separator, 1-8. Shaking screen, 1-9. Fiber separator
Reclaimed rubber processing

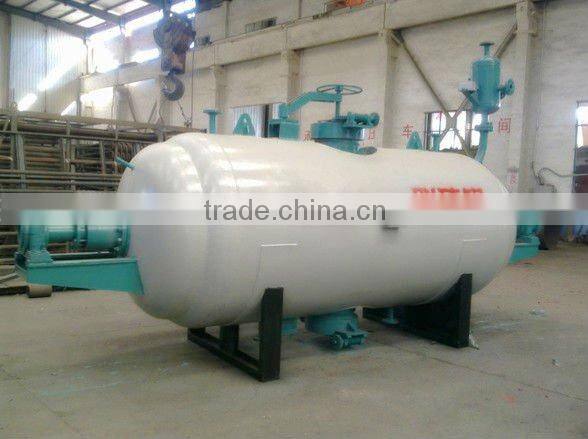

1-10. Desulfuration tank
Parameter | Model |
| ZT—6R |
Design Pressure | 3.0Mpa |
Working Pressure | 2.85Mpa |
Design Temperature | 2350C |
Working Temperature | 2300C |
Active Volume | 6m3 |
Rotate Speed of Blender | 15r/min |
Jacket Volume | 1.6m3 |
Design Pressure of Jacket | 0.1Mpa |
Working Pressure of Jacket | Common pressure |
Heating Method | Heat conduction oil |
Hear Exchange Area | 15m2 |
Motor Power | 18.5kw |

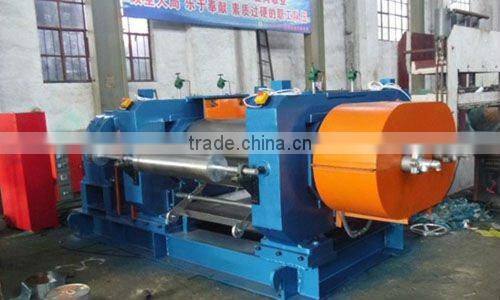

1-11. Rubber refining mill
XKJ-450 2SETS
Model | XKJ-450A | |
1 | Working diameter of rollers | 450/510mm |
2 | Working length of rollers | 1000mm |
3 | Working linear speed of rear rollers | 56m/min |
4 | Friction ratio of front and rear rollers | 1:1.93m/min |
5 | Max gap | 10mm |
6 | Capacity per batch | 25-50kg |
7 | Motor power | 55kw |
8 | Overall size L*W*H | 4800*2380*1940mm |
9 | Weight | 12000kg |
XKJ-480 1SET
Model | XKJ-480 | |
1 | Working diameter of rollers | 480/610mm |
2 | Working length of rollers | 1000mm |
3 | Working linear speed of rear rollers | 65m/min |
4 | Friction ratio of front and rear rollers | 1:1.75m/min |
5 | Max gap | 10mm |
6 | Capacity per batch | 50-65kg |
7 | Motor power | 90kw |
8 | Overall size L*W*H | 5500*2500*1900mm |
9 | Weight | 21000kg |
...
