Help CenterWaste Tyre Cutting Machine/waste Tyre Rubber Powder
Related Products
-
2016 Rubber Raw Material Machinery Used Tyre Recycling Machine To Rubber PowderUS$ 2,000 - 20,000MOQ: 1 Set -
Upstroke Vulcanizing Press / Rubber Upstroke Frame Press of ChinaUS$ 1,800 - 18,000MOQ: 1 Set
-
Gym Floor Rubber Mat 6 Mm/rubber FloorUS$ 1,500 - 16,000MOQ: 1 Set
-
Gym Rubber Sheet Floor Mat/rubber Film Vulcanizing Press From ChinaUS$ 1,200 - 12,000MOQ: 1 Set
-
Column Type Floor Tile Vulcanizing Press / Rubber Vulcanizer of ChinaUS$ 1,000 - 10,000MOQ: 1 Set
Welcome to our 100% real factory
Qingdao JINRUNQI Rubber Machinery Co.,Lt
Our non-standard Rubber Vulcanizing Press and Rubber Powder Production Line will meet your requirement ,don't hesitate, my friends.
8:00-20:00(China time) from Mon to Sat: Reply in 30 minutes
Used Tyre For Sale
Waste Tyre Recycling Machine
Second part is to make 5*5cm blocks into small size rubber granules. Meanwhile separate steel and fiber.
Used Tyre For Sale
Waste Tyre Recycle Line/Rubber Powder Production Line
Professional Serier(3000---4500+ton/year)
Used Tyre For Sale
Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter
1-1. Ring cutter 1 set
|
Item |
Specification |
Motor power |
5.5 KW |
|
Speed of main screw |
46.8 r/min |
|
MAX Diameter of tyre |
1200mm |
|
Dimension |
1100*900*1700mm |
|
Weight |
300kg |
1-2. Loop machine 1 set
|
Item |
Specification |
Motor power |
15 KW |
|
Linear speed of front roller |
15.5 m/min |
|
Ratio of speed |
1.1 |
|
Dimension |
1520*1150*12101mm |
|
Weight |
1300kg |
1-3.Strip cutter 1 set
|
Item |
Parameter |
Motor Power |
5.5kw |
|
Disc Diameter |
380mm |
|
Rotate Speed |
18.4r/min |
|
Dimension |
1290*870*1550 |
|
Weight |
720kg |
1-4. Block cutter 1 set
|
Item |
Specification |
Motor power |
11kw |
|
Speed of main screw |
420 r/min |
|
Out diameter of cutter |
200mm |
|
Dimension |
1130*830*1100 |
|
Weight |
420kg |
Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.
1-5.Rubber crusher 1 set
Model |
XKP-560 |
Working diameter of front roller(mm) |
560 |
Working diameter of rear roller(mm) |
510 |
Working length of rollers(mm) |
800 |
Working linear speed of front roller(m/min) |
25.56 |
Friction ratio of front and rear roller |
1:1.30 |
Max gap |
8 |
Capacity (kg) |
1500 |
Power(KW) |
90 |
Overall size(l*w*h) |
5064*2284*1978 |
Weight(kg) |
19000 |

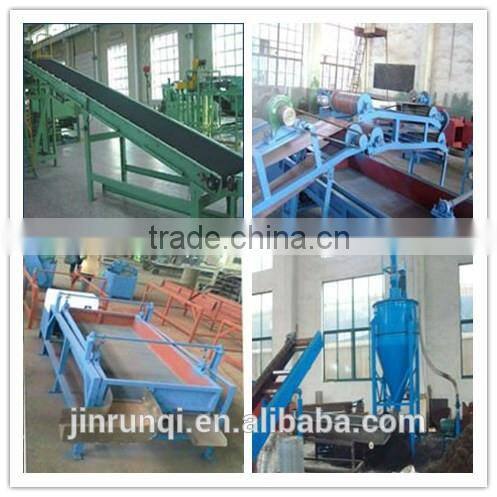

1-6.Conveyor, 1-7. Magnet separator, 1-8. Shaking screen, 1-9. Fiber separator
Reclaimed rubber processing
1-10. Desulfuration tank
Parameter |
Model |
|
ZT—6R |
Design Pressure |
3.0Mpa |
Working Pressure |
2.85Mpa |
Design Temperature |
2350C |
Working Temperature |
2300C |
Active Volume |
6m3 |
Rotate Speed of Blender |
15r/min |
Jacket Volume |
1.6m3 |
Design Pressure of Jacket |
0.1Mpa |
Working Pressure of Jacket |
Common pressure |
Heating Method |
Heat conduction oil |
Hear Exchange Area |
15m2 |
Motor Power |
18.5kw |
1-11. Rubber refining mill
XKJ-450 2SETS
Model |
XKJ-450A |
|
1 |
Working diameter of rollers |
450/510mm |
2 |
Working length of rollers |
1000mm |
3 |
Working linear speed of rear rollers |
56m/min |
4 |
Friction ratio of front and rear rollers |
1:1.93m/min |
5 |
Max gap |
10mm |
6 |
Capacity per batch |
25-50kg |
7 |
Motor power |
55kw |
8 |
Overall size L*W*H |
4800*2380*1940mm |
9 |
Weight |
12000kg |
XKJ-480 1SET
Model |
XKJ-480 |
|
1 |
Working diameter of rollers |
480/610mm |
2 |
Working length of rollers |
1000mm |
3 |
Working linear speed of rear rollers |
65m/min |
4 |
Friction ratio of front and rear rollers |
1:1.75m/min |
5 |
Max gap |
10mm |
6 |
Capacity per batch |
50-65kg |
7 |
Motor power |
90kw |
8 |
Overall size L*W*H |
5500*2500*1900mm |
9 |
Weight |
21000kg |
1. Pre-sales Service:
Freely provide Technical data, Professional suggestions, Best quotation
2. Medium-sales Service:
Provide the purchasing, shipping, installing and training
3. After-sales service:
1 years quality guarantee, Life-long Maintenance
The company is located in West Coast Economic and Technological Development Zone, Convenient location, Only 40km away from Qingdao International Airport. Just 20 kilometers from Qingdao container terminals, closes Tongsan highway and 204 National Road only 1km, traffic is extremely convenient.
The company has passed the ISO9001:2008 Quality System Certification.
The company has a professional technology R&D institutions. Market as the wizard, can meet requirements come from different customers. The company is particularly specializes in the design and production of non-standard products. Expect ordinary rubber machinery includes open type rubber mixing mill, rubber kneader, rubber extruder, rubber injection molding machine, solid tire vulcanizing press, our company also focus on the R&D and production of the large type plate vulcanizing machine, fabric conveyor belt production line and wire rope conveyor belt production line. To constant exploration and innovation gained rich experience and results for many years.
Basic information
Business Type: manufacturer
Main Products: Plate vulcanizing press,Rubber tile hydraulic press,waste tyre recycling machine,rubber mixing mill,conveyor belt production line
tire crushers, shredders, magnetic separator, screening machine, waste tire rubber powder production line, waste rubber and plastic pyrolysis oil production line.
Number of employmees: 51-100 people
Market
Western Europe Southeast Asia Eastern Asia Mid East South Asia South America Domestic Market
Factory Information
Factory Size (ters): 3000-5000 square meters
Factory Location: WangTai ,JiaoNan,Qingdao
Number of R&D staff: 10-20 people
Number of QC staff: 5-10 people
Telephone: 86- 15864715281
...
