1.60mn Frame Type Rubber Plate Vulcanizing Machine
Feature
Produce all kinds of rubber machine:
Vulcanizing machine, hydraulic press, baling press, Foaming press;Conveyor belt production line, sidewall belt production line, jointing machine, conveyor belt forming line;Batch-off cooler (cooling line);Rubber cutter etc.
Advantage of plate vulcanizing press machine
1, Real manufacturer meet all your inquiry.
2, Reasonable price for reasonable processing cost by strong self-production capacity.
3, frame structure good stability and good lighting performance.
4, Time counting,heating temperature stable and precise.
5,Keep pressure long time and lossless.pressure loss less than 5%.
6, Hydraulic system no leakage
Introduction
Qingdao Jinrunqi Rubber Machinery Co.,Ltd.
Our main products of are: various types of Conveyor belt vulcanizing press,rubber fining mixer,rubber crusher,plate vulcanizer,rubber cutter and other kinds of rubber machinery.we can also make all kinds of nonstandard rubber machines according to customer's requirement.
With many years producing and selling experience, we try our best to produce products with high quality and high standard,our tenet is “we seek survival with quality and technology in our products.we win market and earn reputation with good faith and brand.”
Main Tech Para
Type |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
Total press(MN) |
1.60 |
2.00 |
2.50 |
3.15 |
Plate size (mm) |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
Plate gap (mm) |
300 |
300 |
300 |
300 |
Working layer number |
1 |
1 |
1 |
1 |
Piston stroke (mm) |
250 |
250 |
250 |
250(500) |
Unite area pressure of hot plate(Mpa) |
2.5 |
2.0 |
1.8 |
1.5 |
Motor power(Kw) |
3 |
5.5 |
8.0 |
8.0 |
|
(L×W×H)(mm) Overall dimension |
900×1600×2500 |
1100×1900×3600 |
1300×2100×40000 |
1600×2450×4200 |
Weight(Kg) |
4000 |
5800 |
6800 |
8000 |
Close mould speed (mm/s) |
≥6 |
≥6 |
≥6 |
≥6 |
Open mould speed (mm/s) |
≥4 |
≥4 |
≥4 |
≥4 |
Describe
1.The machine applies to sulfurizing various kinds of rubber and plastic model products as well as non-model products.
2.The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
3.Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
4.Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
5.The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
The office

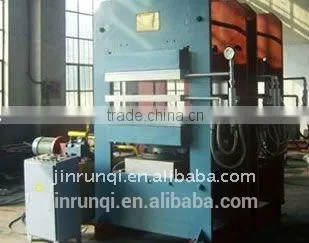

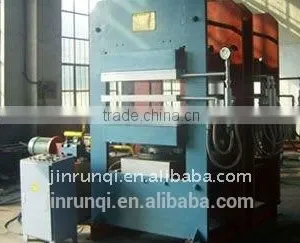

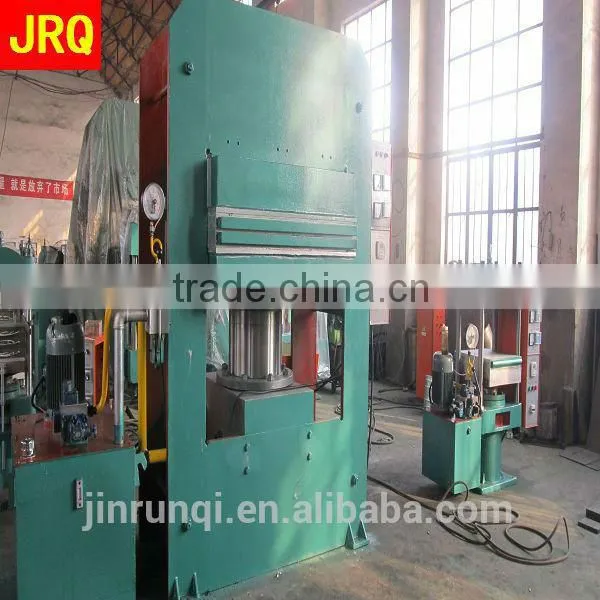

The machine
