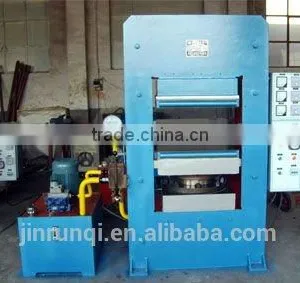

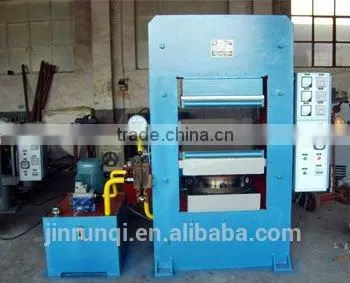

Frame Type Rubber Vulcanizing Press Machine
Main Technical Parameter
Type |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
Total press(MN) |
1.60 |
2.00 |
2.50 |
3.15 |
Plate size (mm) |
800×800 |
1000×1000 |
1200×1200 |
1500×1500 |
Plate gap (mm) |
300 |
300 |
300 |
300 |
Working layer number |
1 |
1 |
1 |
1 |
Piston stroke (mm) |
250 |
250 |
250 |
250(500) |
Unite area pressure of hot plate(Mpa) |
2.5 |
2.0 |
1.8 |
1.5 |
Motor power(Kw) |
3 |
5.5 |
8.0 |
8.0 |
|
(L×W×H)(mm) Overall dimension |
900×1600×2500 |
1100×1900×3600 |
1300×2100×40000 |
1600×2450×4200 |
Weight(Kg) |
4000 |
5800 |
6800 |
8000 |
Close mould speed (mm/s) |
≥6 |
≥6 |
≥6 |
≥6 |
Open mould speed (mm/s) |
≥4 |
≥4 |
≥4 |
≥4 |
Feature
1)The machine is in frame structure with below pressing form (upwards).
2)Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
3)Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
4)Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
5)Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
6)The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.

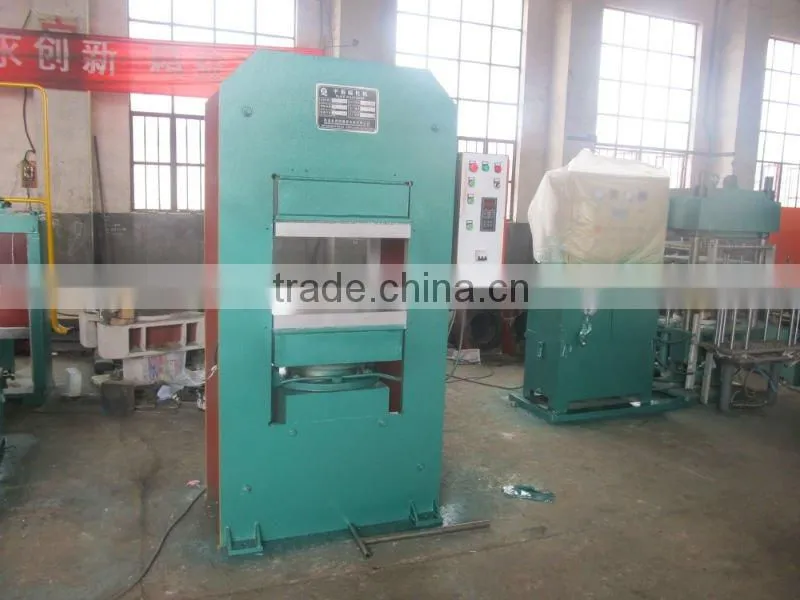

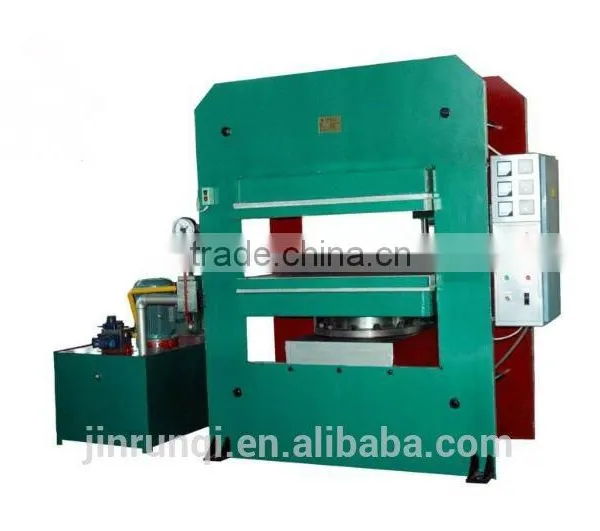

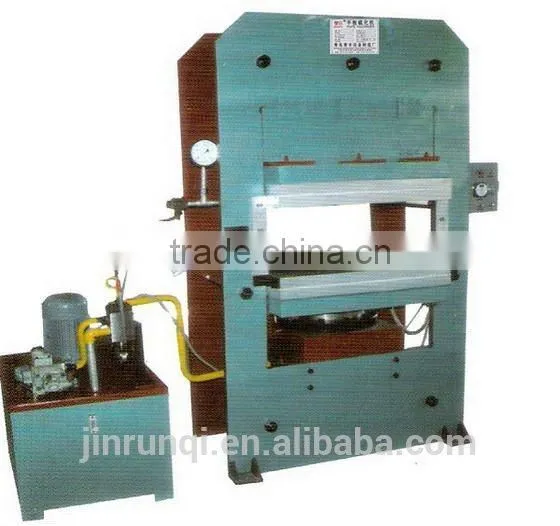

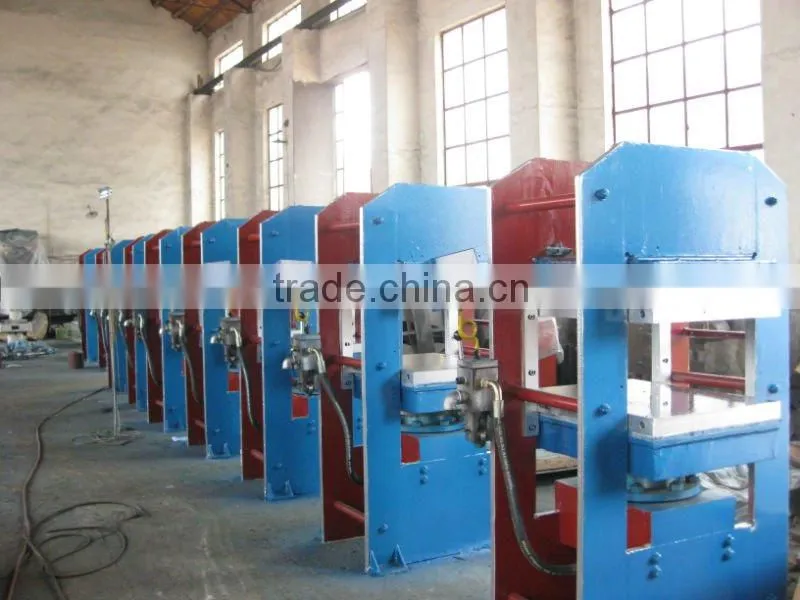

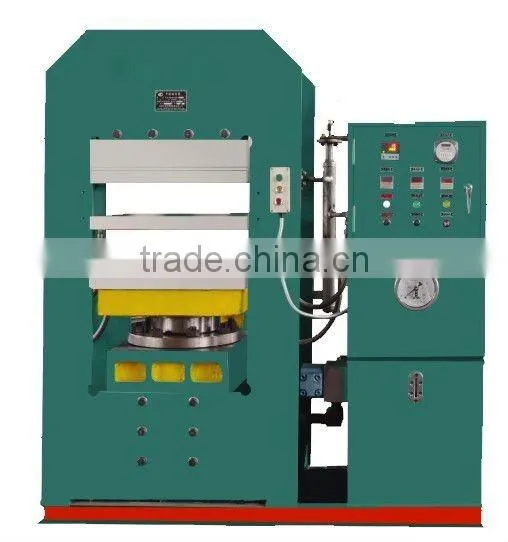

Picture for reference
About us
Qingdao Jinrunqi Rubber Machinery locates in Wangtai Industrial Zone, Jiaonan, Qingdao. The traffic is very convenient. It near Qianwan Port and railway. It also near Tongsan High way in the west and 204 National Road in the east. The main products of the company are: rubber mixing mill with all kinds of type, rubber cracker, plate vulcanizer, rubber cutter, and so on. Also we can make non-standard rubber machinery as customers’ requirements?
With many years producing and selling experience, we try our best to produce high quality, high standard products based on aim, of which is “ strive for survival by quality; produce by technology; creat market by good faith; be famous all over the world by brand”. Our products are sold to all over the country, and they are approved by our customers.
Our chief manager Fanfan welcome everyone to visit and negotiate business, let you come happily, go back satisfactorily on the basis of high quality product and warm service.
