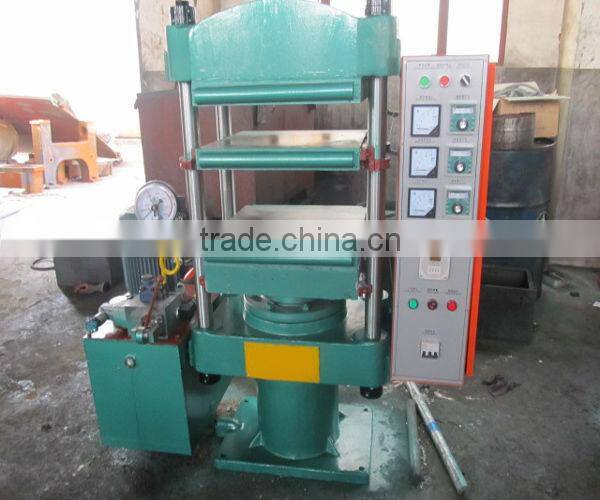

Help CenterHigh Quality Pneumatic Vulcanizing Machine of China
Related Products
-
Belt Press For Sale/Plate Vulcanizing Press for Textile BeltUS$ 1,300 - 11,500MOQ: 1 Set -
Frame Structure Conveyor Belt Vulcanizing Machine of QINGDAOUS$ 1,600 - 12,000MOQ: 1 Set
-
Rubber Belt Vulcanizing Machine In Qingdao of ChinaUS$ 1,600 - 60,000MOQ: 1 Set
-
Frame Type Rubber Plate Vulcanizing PressUS$ 1,500 - 40,000MOQ: 1 Set
-
Frame Type Rubber Vulcanizing Press of ChinaUS$ 1,000 - 50,000MOQ: 1 Set
Features:
1. The machines used for rubber Vulcanization are known as rubber vulcanizing machines.
2. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and makes rubber harder and stronger.
3. This vulcanization machine is extremely useful for testing strength of rubber and finds applications in numerous industries.
4. Sulfur treated rubber is used for making cords, cables and other heat resistant rubber products.
5. Our four-column hydraulic pillar type press is ideal for pressing, straightening, moulding, trimming, compressing and pulling-out of bush, assembly and disassembly of parts.
6. Specially designed for ease of operation, the operator has access from all the sides of the machines.
7. The multiple columns provide increased output with great accuracy.
Advantages:
1. Simple and convenient structure , flexible operation, commodious space. The cylinder and plunger are made up of high –quality materials.
2. Conviniently operated.
3. Without oil spilling or off pressure.
4. The control method can be changed as client's requirements. automatic or manual or PLC control.
5. Power Distribution Cabinet and Motor are located in the both sides of the machine.
Technical parameters:
Type |
350*350*2 |
400*400*2 |
500*500*2 |
600*600*2 |
750*850*2 |
600*600*2 |
Nominal clamp mould force MN |
0.25 |
0.5 |
0.8 |
1.0 |
1.6 |
2.0 |
Piston size |
350*350 |
400*400 |
500*500 |
600*600 |
750*850 |
600*600 |
Number of working layer |
2 |
2 |
2 |
2 |
2 |
2 |
Piston diameter mm |
¢150 |
¢200 |
¢250 |
¢300 |
¢360 |
¢400 |
Stroke of piston mm |
250 |
250 |
250 |
250 |
500 |
300 |
Distance between hot plate mm |
125 |
125 |
125 |
125 |
250 |
150 |
Unit area pressure of hot plate Mpa |
2.1 |
3.1 |
3.2 |
2.78 |
2.5 |
5.6 |
Power KW |
2.2 |
2.2 |
2.2 |
2.2 |
3.0 |
3.0 |
Overall size(L*W*H) mm |
1500*400*1350 |
1800*500*1700 |
1800*550*1600 |
2000*700*1700 |
2000*1000*1900 |
2550*960*2100 |
Weight Kgs |
1000 |
1500 |
2000 |
2600 |
4300 |
5000 |
Close mould speed mm/s |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
Open mould speed mm/s |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |

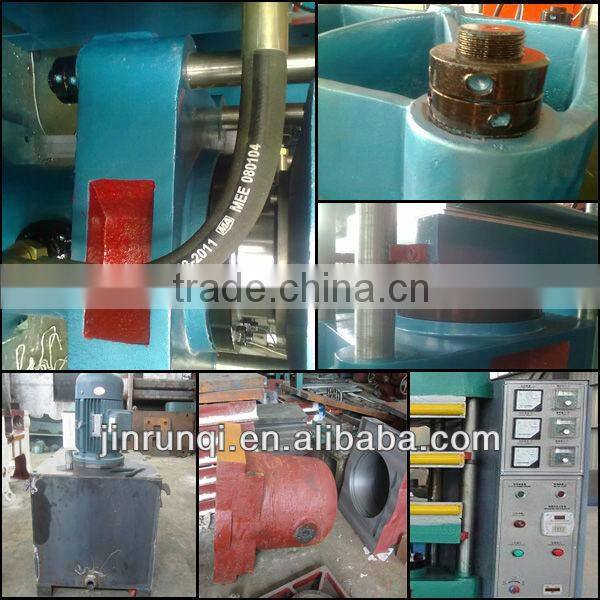

Pictures of structure:

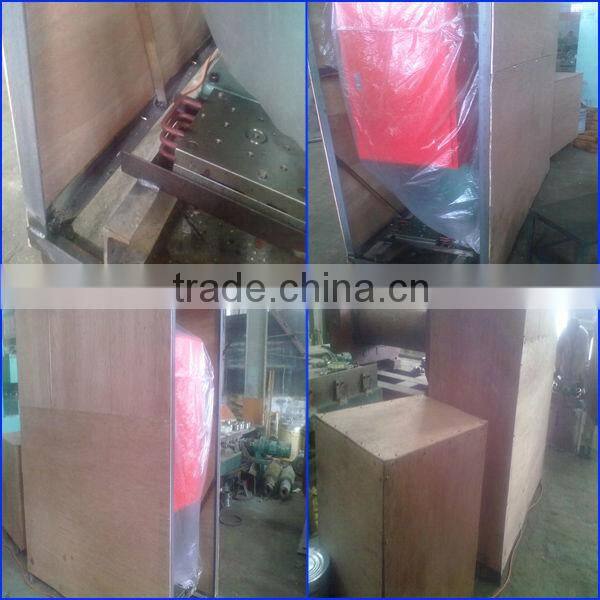

Packing:

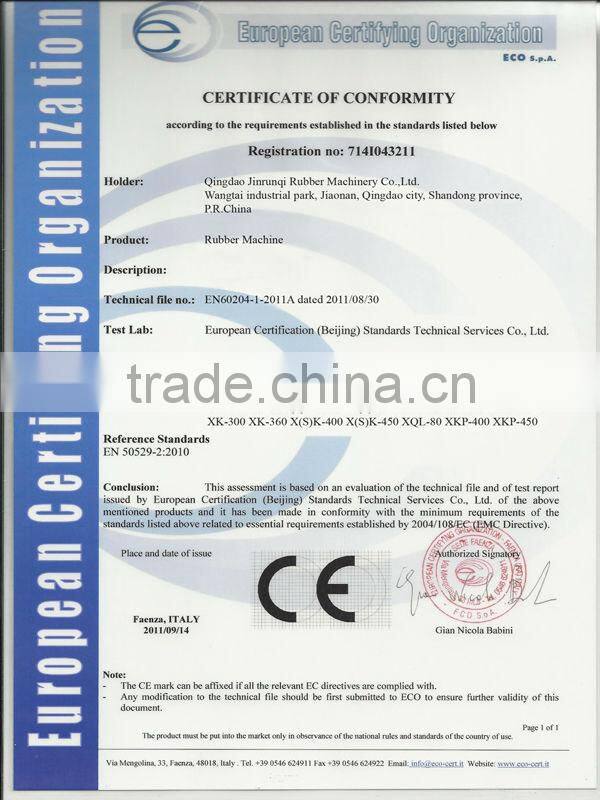

Certification:

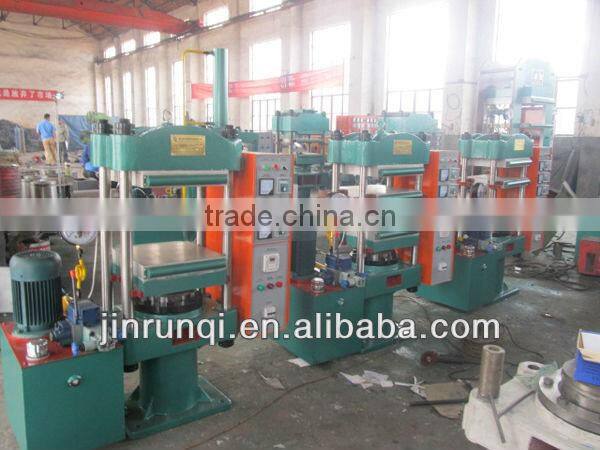

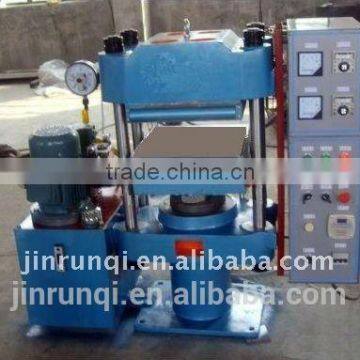

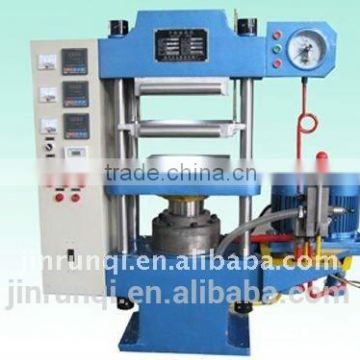

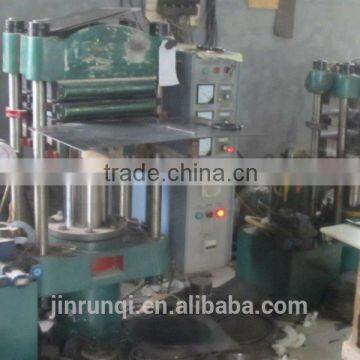

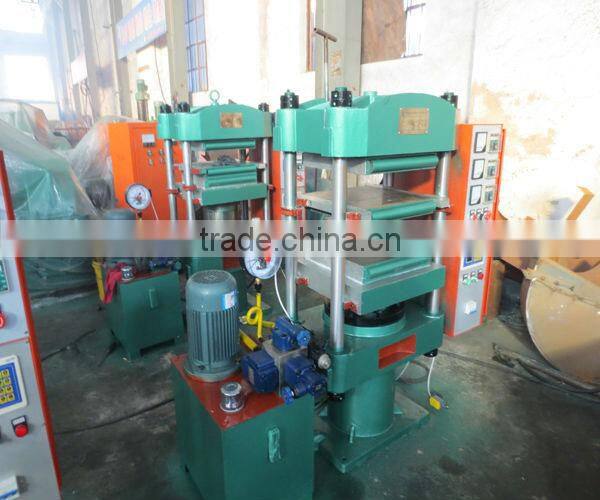

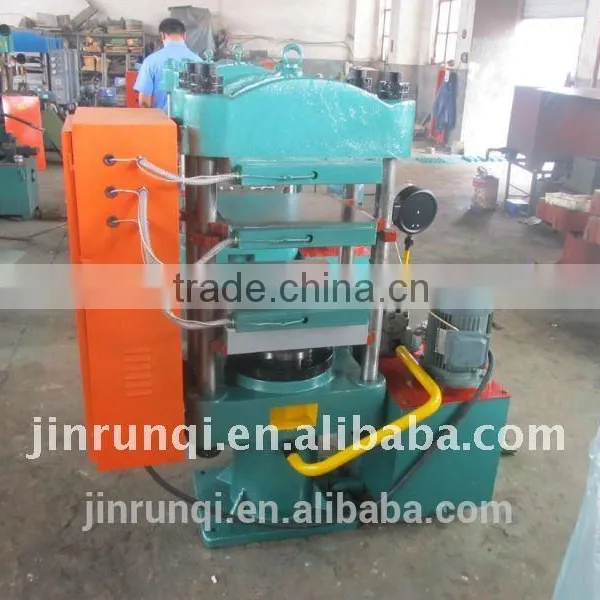

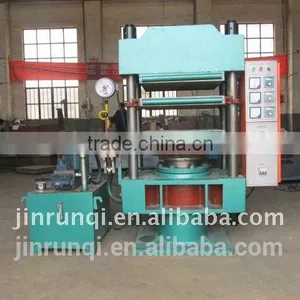

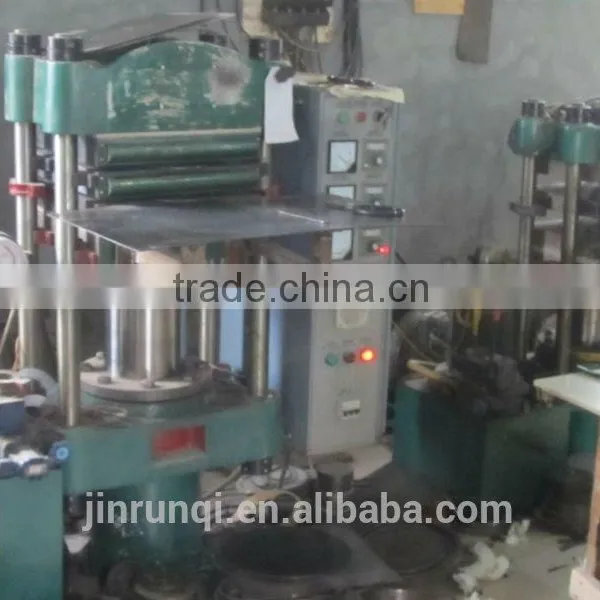

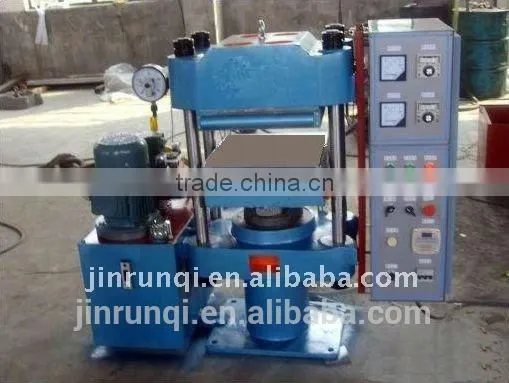

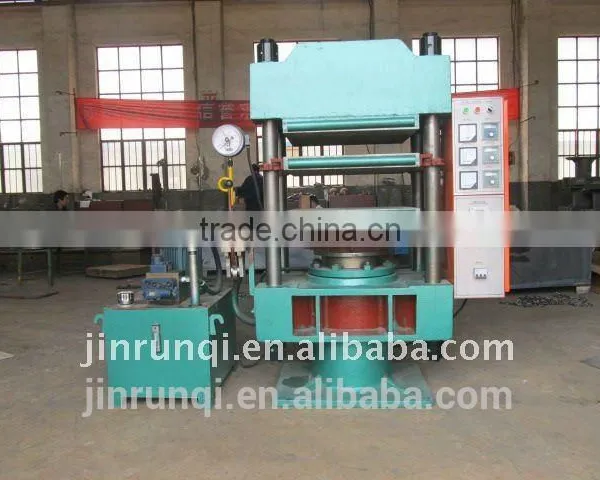

Pictures for reference:

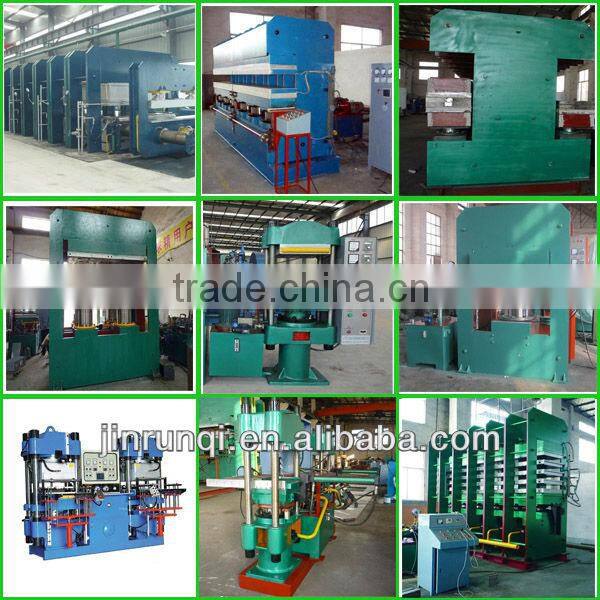

We can produce various vulcanizing press according to client's requirements.
With many years producing and selling experiences, we try our best to produce high quality, high standard products based on aim, of which is "strive for survival by quality; produce by technology; creat market by good faith; be famous all over the world by brand".our products are sold to all over the country, and they are approved by our customers.
After Sales Service:
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
