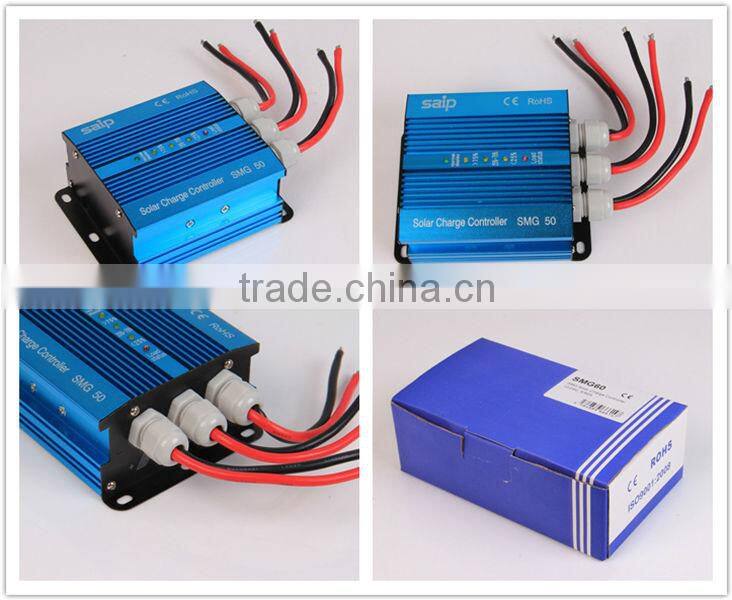

Saipwell Regulator 12v 20a PWM Power Solar Controller

Name: Saipwell Regulator 12v 20a PWM Power Solar Controller
Brand: Saip solar charge controller
SKU: 129509439
Availability: InStock

Yueqing Saip Electric Company Limited

5Yrs

US$ 23 - 28 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Saip solar charge controller

Model Number:

SMG30

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Saip solar charge controller

Model Number SMG30

Application Charger Controller

Rated Voltage 12V

Maximum Current 30A

Specifications

Saipwell Regulator 12v 20a PWM Power Solar Controller
1.battery state-of-charge display with 3 LEDs
2.PWM-regulation
3.CE

Saipwell Regulator 12v 20a PWM Power Solar Controller

Product Description

Function:

1.battery state-of-charge display with 3 LEDs

2.acoustic load disconnect pre-warning

3.PWM-regulation(series type)

4.boost,equalize and float charging, also for VRLA

5.automatic 12/24 volt detection

6.integrated temperature compensation

7.large terminals ( up to 16mm2 wire size )

8.SOC and voltage controlled LVD

9.fully eletronically protected

Technical data:

model	SMG30
noinal voltage	automatic recognition 12/24v,48v
lar panel current	30a
Max.load panel current	30a
boost voltage	14.5v/29.0v
equalization voltage	14.8v/29.6v
folat voltage	13.7v/27.4v
deep discharge protection	11.4-11.9v/22.8-23.8v controlled by statc of charge 11.0/22.0v controlled by voltage
load reconnect voltage	12.8v/25.6v
consumption	-4mv/cell x K
Max.wire size	16mm^2
dimensions (WxHxD)	98x122x49mm
weight	400g
temperature range	-20°C to + 50 °C
type of protection	IP44
