Specifications
On Grid Connected Inverter1.High MPPT accuracy( >99.9%)
2.Easy to wire, install and operate
3.IP65 design
4.CE

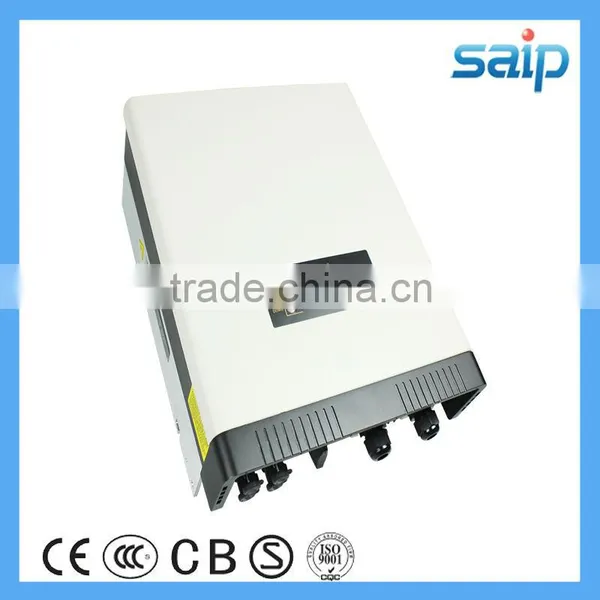

On Grid Connected Inverter

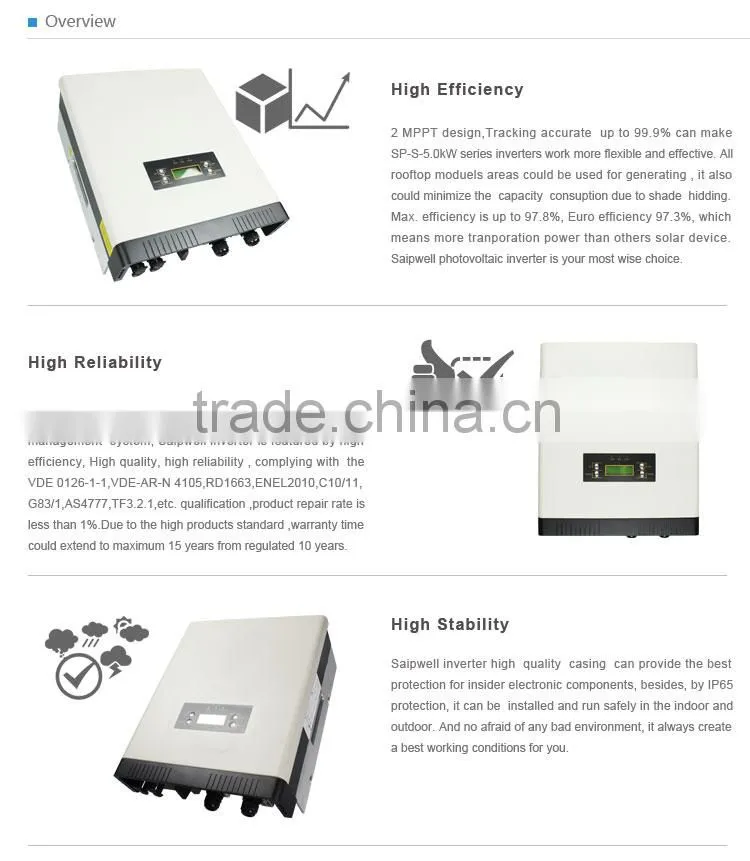

On Grid Connected Inverter Features:
1. Max. Efficiency 98.2%, Euro. Efficiency 97.8%.
2. Double MPPT, MPPT accuracy up to 99.9%.
3. IP65 design, work properly under severe outdoor circumstances.
4. Full solution of safety protection, DC switch integrated.
5. Flexible input and output connections, support RS485, Ethernet and USB communication.
6. Transformer less design and high power density, lighter and more convenient for installation.
On Grid Connected Inverter Technical Data:
| Model | SP-S2-3kw | SP-S2-4kw | SP-S2-5kw |
| Input (DC) | |||
| Max.PV-Generator Power[W] | 3400 | 4600 | 5200 |
| Max. DC voltage[V] | 590 | ||
| Rated Voltage [V] | 360 | ||
| MPPT DC Voltage Range [V] | 120-500 | ||
| Turn off DC Voltage [V] | 90 | ||
| Number of MPP trackers | 2 | ||
| Turn on Power [W] | 10 | ||
| Output (AC) | |||
| Max . AC Power [VA] | 3300 | 4400 | 5000 |
| Nominal AC Power [W] | 3000 | 4000 | 4600 |
| Max . AC Current [A] | 14.4 | 19 | 22 |
| Nominal AC Current [A] | 13.0 | 17.4 | 20 |
| Grid Voltage Range | 185V...276V(depending on regional settings) | ||
| Rated Frequency | 50Hz and 60Hz | ||
| Power Factor | 0 .95 capacitive . . .0 .95 inductive | ||
| THD(AC Output current) | <2% | ||
| AC Connector | Plug-in connector | ||
| Power Consumption at Night [W] | <1 | ||
| Efficiency | |||
| Max. Efficiency | 97.80% | ||
| Euro. Efficiency | 97.10% | 97.30% | 97.30% |
| MPPT Efficiency | 99.9% | ||
On Grid Connected Inverter Show:

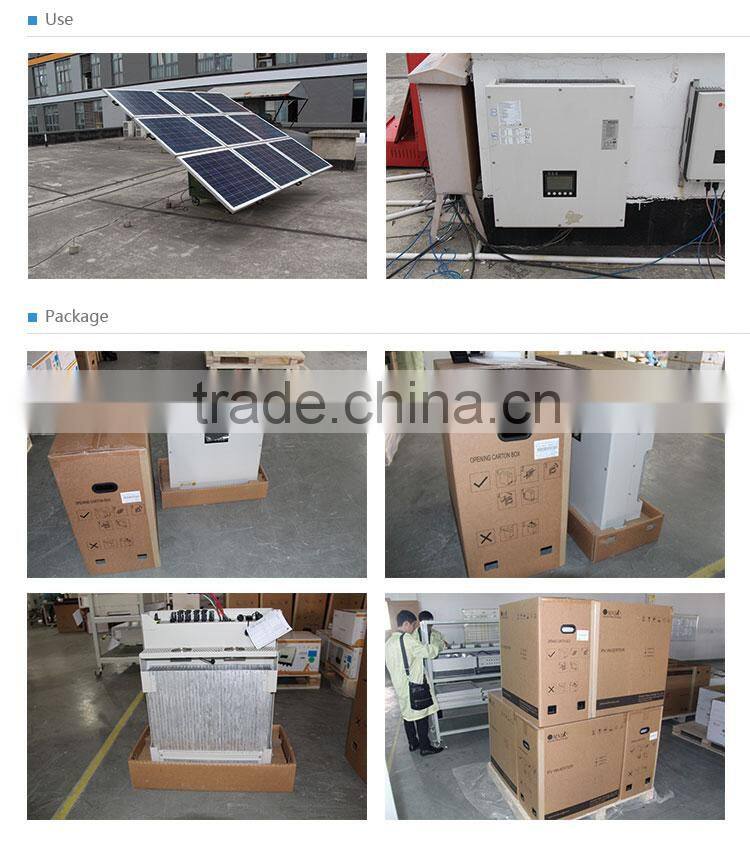

Packaging&Application:

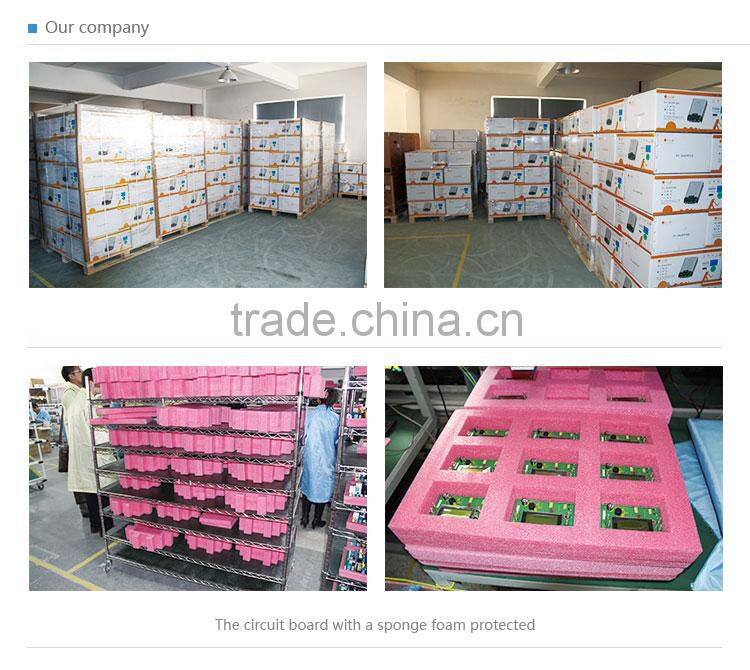

On Grid Connected Inverter Production Line:
Our Service:
Inquiry: we will give your reply in 24 hours.
More details,please contact with us!
I'm Cora from Saip Electric Group Co.,Ltd.
Tel:+86 0577-61780562 Mob:+86 18067787937 Skype: saip558 Email: saip558 at
