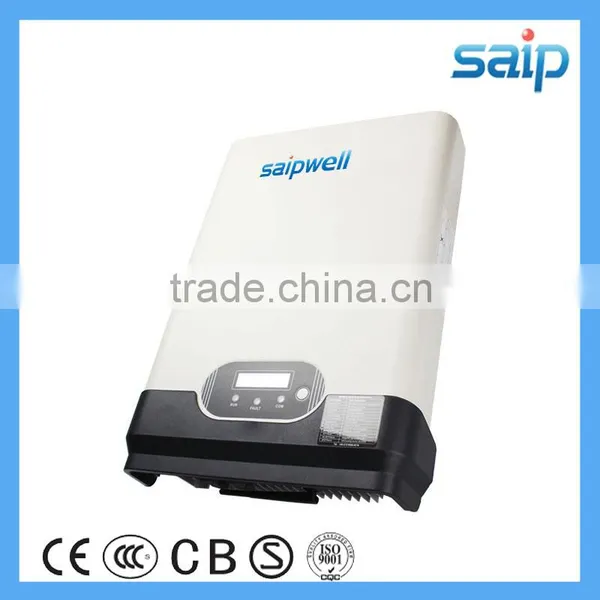

High Energy Saving On Grid Tie Power Inverter

High Energy Saving On Grid Tie Power Inverter thumbnail-1
High Energy Saving On Grid Tie Power Inverter photo-1
US$ 1,104.5 - 1,274.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip on grid tie power inverter
Model Number:
SP-S-5kw
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip on grid tie power inverter
Model Number SP-S-5kw
Output Power 1 - 200KW
Output Type Single
Size 367x526x153mm
Weight 20kg
Input Voltage 590v
Output Voltage 230v
Type DC/AC Inverters
Output Frequency 50/60HZ
Output Current 20A

Specifications

High Energy Saving On Grid Tie Power Inverter
1.High MPPT accuracy( >99.9%)
2.Easy to wire, install and operate
3.IP 65 desig



High Energy Saving On Grid Tie Power Inverter



On Grid Tie Power Inverter Features:



1. Transformerless design, high efficiency (Max. 97.5%, Euro. 96.6%)
2. High MPPT accuracy( >99.9%)
3. Wide DC input range(80-500 Vdc), compatible with different module technologies
4. Easy to wire, install and operate
5. IP 65 design, suitable for indoor and outdoor installation
6.5 years warranty(10~25 years as option)





On Grid Tie Power Inverter Technical Data:



ModelSP-S-3kw SP-S-4kw SP-S-5kw
Input (DC)
Max. DC voltage [V] 590
MPPT DC voltage Range [V]120-500
Turn off DC voltage [V]120
Number of MPP Trackers 2
Max. DC Current(A/B)[A]18/18
DC-Connection MC4
Output (AC)
Max. AC Power [W] 330044004800
Nominal AC Power [W] 30004000 4600
Max. AC Current [A] 14.419 21.0
Nominal AC Current [A] 13 17.4 20
Grid voltage Range According to VDE 0126-1-1, RD1663, ENEL2010,C10/11,G83/1, AS4777
Grid Frequency Range According to VDE 0126-1-1, RD1663, ENEL2010,C10/11,G83/1, AS4777
Power Factor 0.99 (>30% of Full Load)
THD(AC Output Current ) <2%
AC Connector Plug-in connector
Power Consumption
Own Consumption in Operation [W] 45                       5050
Power Consumption at Night [W] 0
Power Consumption at Standby [W] 6
Efficiency
Max. Efficiency (at 360VDC) 97.5%    97.6%  97.6%
Euro. Efficiency (at 360VDC) 96.6%    97.0%  97.0%
MPPT Efficiency 99.9%









On Grid Tie Power Inverter Overview:



High Energy Saving On Grid Tie Power Inverter

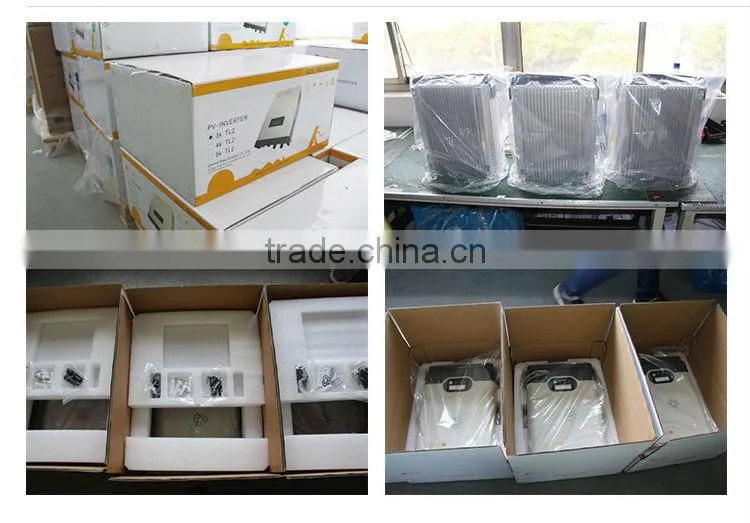

Packaging&Shipping:



packaging details:product weight:13kg

                              carton size:550*450*260mm

shipping details:   within 5 days after getting payment



High Energy Saving On Grid Tie Power Inverter


 About us:
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of

Products according to international IEC normative.



High Energy Saving On Grid Tie Power Inverter

High Energy Saving On Grid Tie Power Inverter

More details,please contact with us!

I'm Cora from Saip Electric Group Co.,Ltd.

Tel:+86 0577-61780562   Mob:+86 18067787937   Skype: saip558   Email: saip558 at
