Specifications
2014 New Clip Fixing PTC Air Heater With Fan HGM050 200W-1500W1. CE
2. OEM
3. 2 years warrant
4. 10 years manufacturer
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IEC normative.
SAIP VISION:
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION: To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE: To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE: To work and live happily
Products Introduction
2014 New Clip Fixing PTC Air Heater With Fan HGM050 200W-1500W
Product Features:
1. Compact design
2. Clip fixing
3. Long service life
4. Maintenance free
5. Temperature safety cut-out
6. Compact fan heater prevents formation of condensation. The integrated high
performance axial fan provides forced air circulation and so guarantees an even
temperature in enclosures. With internal terminal connector.
Technical Data:
| Heating element | PTC |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Heater body | anodised extruded aluminium profile |
| Surface temperature | max.75°C |
| Axial fan, ball baring | Airflow, free flow |
| AC:45m²/h(50Hz)or 54m3/h(60Hz) DC:54m3/h | |
| service life 50,000h at 25°C(77°F) | |
| Connection | internal connection terminal 1.5mm2 with strain relief, |
| clamping torque 0.8Nm max. | |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Fitting position | vertical |
| Operating/storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type/Production class | IP20 / II (earthed) |
Art No |
Operating voltage | Heating capacity | Length(L) | Weight |
| 05040.0-00 | 230VAC,50/60Hz | 200W | 122mm | 0.90kg |
| 05041.0-00 | 230VAC,50/60Hz | 250W | 122mm | 0.93kg |
| 05042.0-00 | 230VAC,50/60Hz | 300W | 122mm | 0.95kg |
| 05043.0-00 | 230VAC,50/60Hz | 400W | 122mm | 1.00kg |
| 05044.0-00 | 230VAC,50/60Hz | 650W | 132mm | 1.15kg |
| 05045.0-00 | 230VAC,50/60Hz | 800W | 136mm | 1.50kg |
| 05046.0-00 | 230VAC,50/60Hz | 1000W | 136mm | 1.54kg |
| 05047.0-00 | 230VAC,50/60Hz | 1200W | 136mm | 1.58kg |
| 05049.0-00 | 230VAC,50/60Hz | 1500W | 136mm | 1.65kg |
*Note:110VDC; 24VDC; 48VDC available

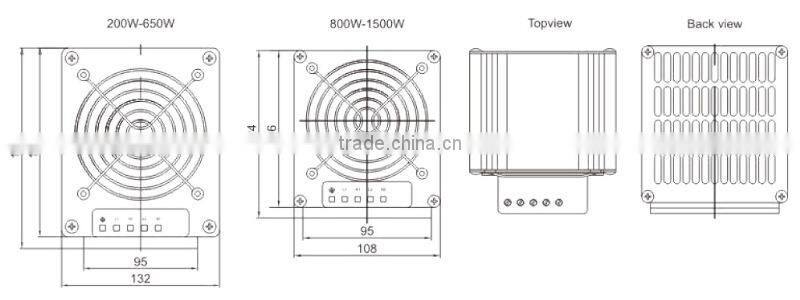

Technical Drawing:

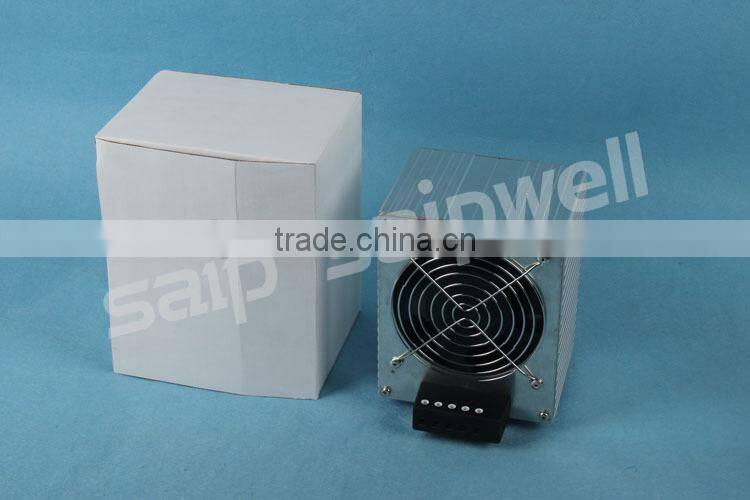

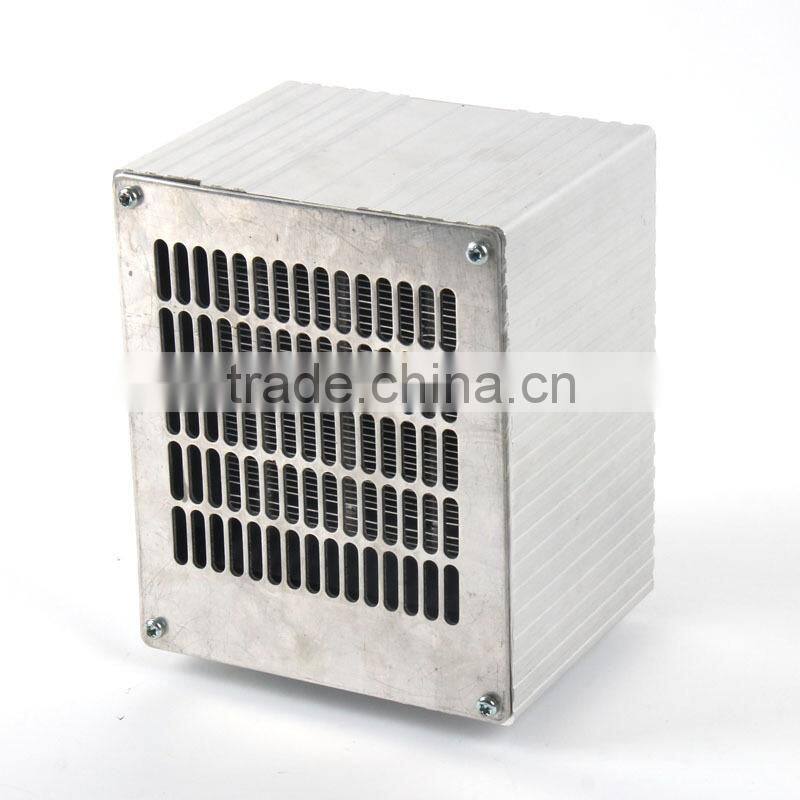

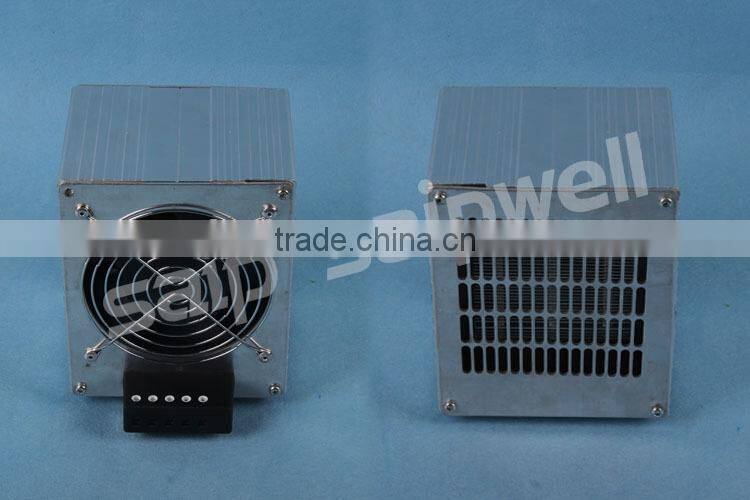

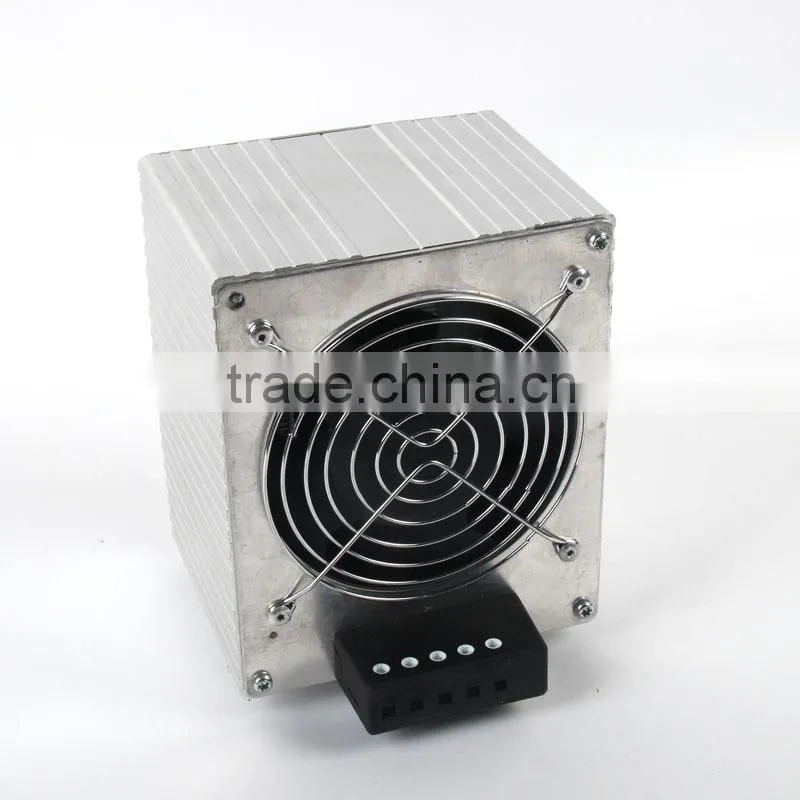

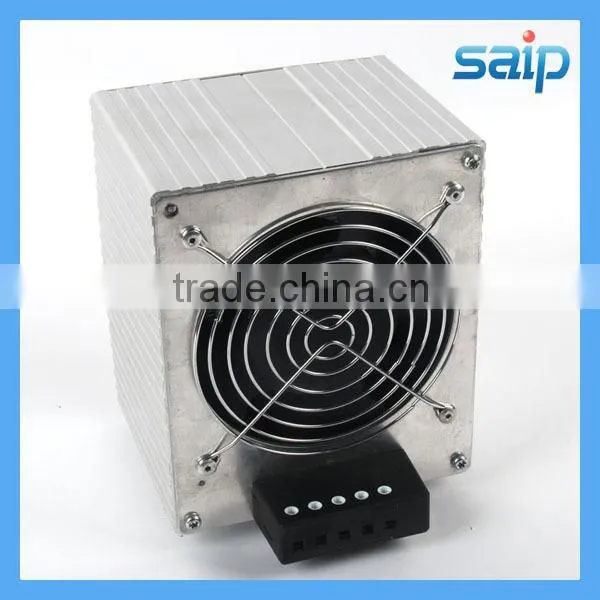

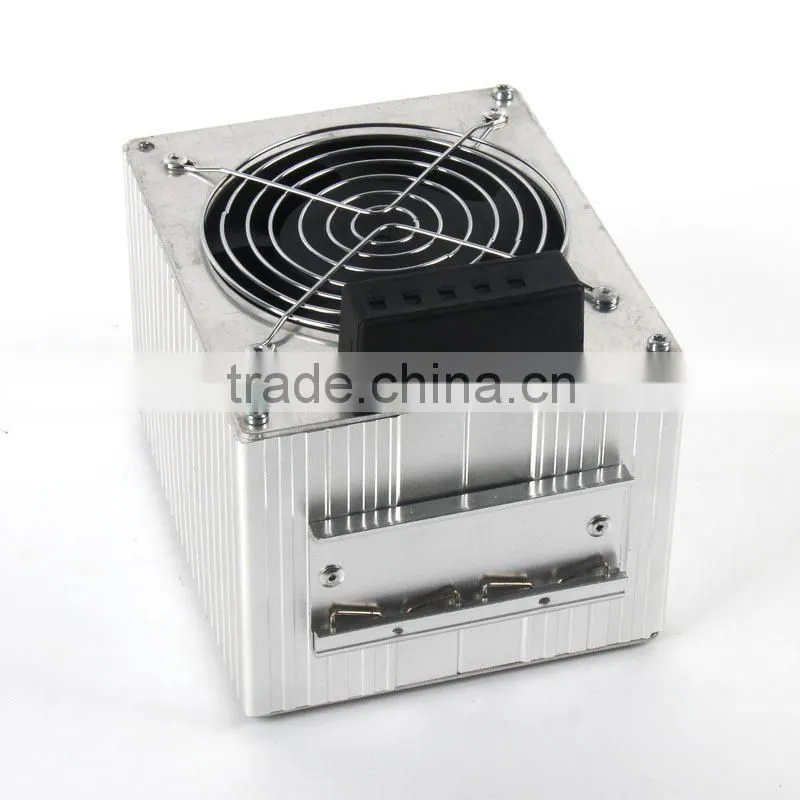

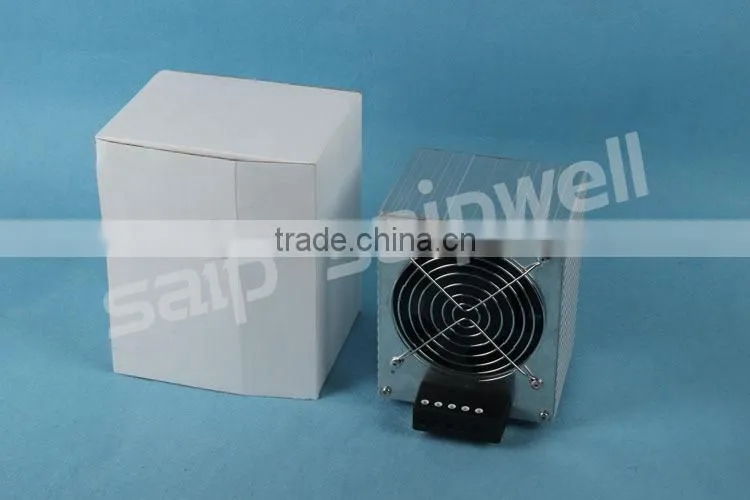

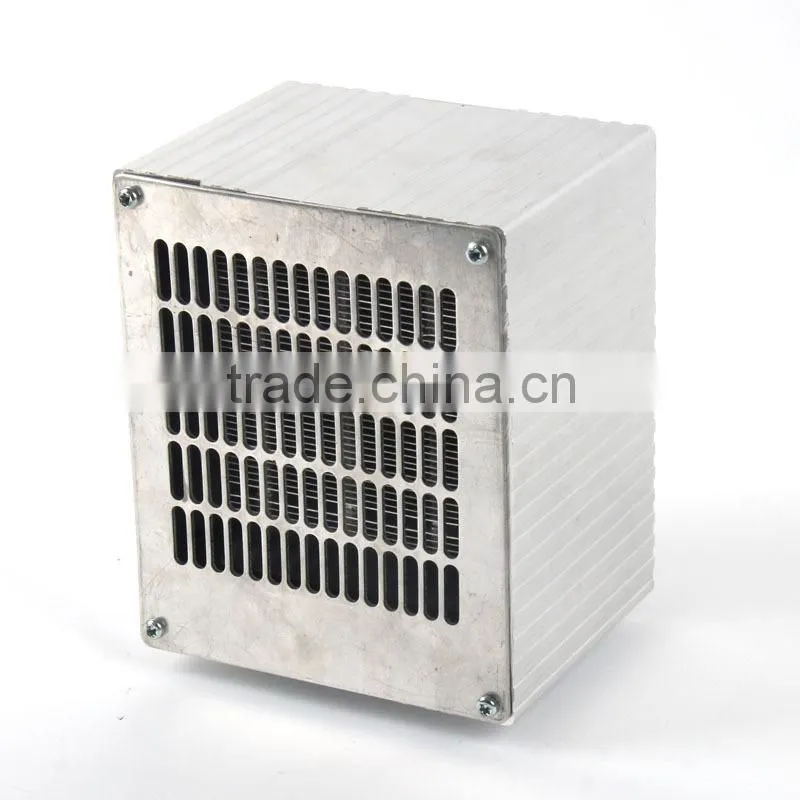

Product Pictures:
About Our Saip:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
Certificates:
For more details, Please feel free to contact Ms. Snow:
Saip Electric Group Company Limited
ADD:Liushi Industrial Zone,Yueqing,Zhejiang,China 325604
Mob: 0086-18067787960
Fax: 0086-577-62760731
QQ: 2775527780
Skype: saip553saip
Http://
