Specifications
2014 new Touch-safe catalytic propane heater 06010.0-001 CE certification
2 OEM sevice
3 Energy saving
4 Compact
2014 new Touch-safe catalytic propane heater 06010.0-00
Catalytic propane heater Specifications
1.Low surface temperature
2.Quick mounting due to clip fixing
3.Double insulated (plastic)
4.Wide ovltage range
5.Small size

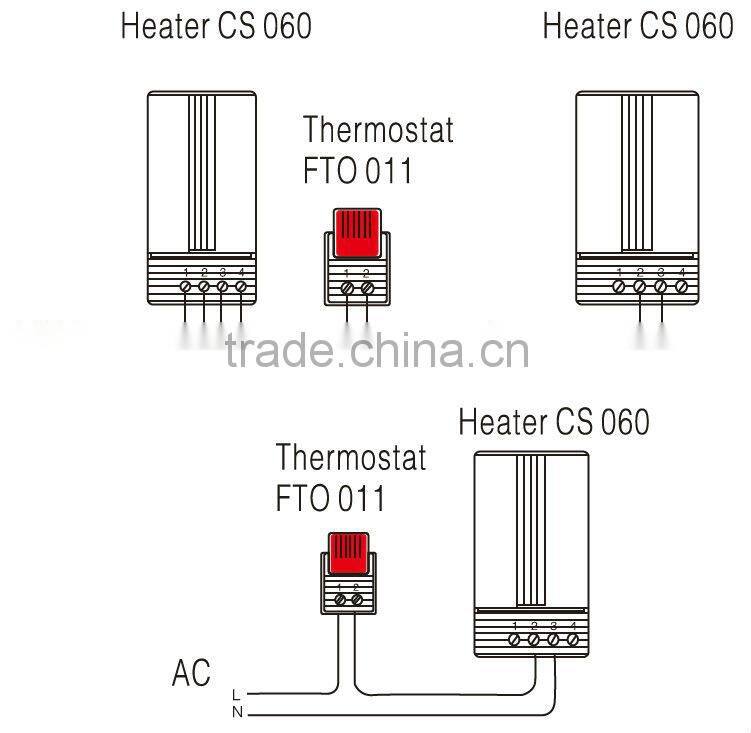

Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air.The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design . Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060. This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). Both versions are designed for permanent operation.
Catalytic propane heater technical Data:
| Operating voltage | 120-240V AC/DC |
| Heating element | PTC resistor - temperature limiting |
| Surface temperature | <80°C(176°F) except upper protective grille |
| Connection | 4-pole terminal 2.5mm2 torpue 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
| Fitting position | vertical |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type / Protection class | IP20 / II (double insulated) |
| Approvals | CE |
| Note | other voltages on request |
| Operating with voltages below 140V AC/DC reduces heating performance by approx.10%. | |

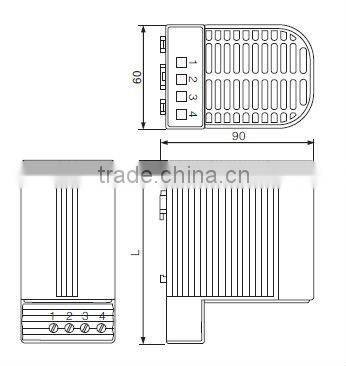

Catalytic propane heater the Drawing:
| Art. No. | Heating capacity1) | Inrush current max. | Air outlet temperature | Dimension(mm) | Weight(approx.) |
| 06000.0-00 | 50W | 2.5A | +86°C | 110*60*90 | 0.3kgs |
| 06010.0-00 | 100W | 4.5A | +120°C | 110*60*90 | 0.3kgs |
| 06020.0-00 | 1500W | 8A | +145°C | 150*60*90 | 0.3kgs |
