Home > Products > juice hot filling machine > Pulp Juice Products Pet Hot Filling Machine

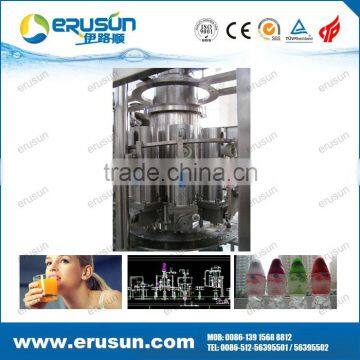

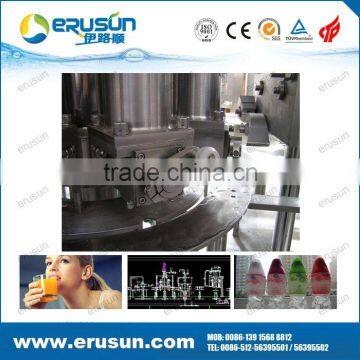

Pulp Juice Products Pet Hot Filling Machine
USD $17,500 - $95,300
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | Customized | Power | 3.5kw | |
| Place of Origin | Jiangsu, China | Brand Name | ERUSUN | |
| Model Number | RHFC | Dimension(L*W*H) | 3700*2300*2600 | |
| Weight | 5500kg | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
ERUSUN Pulp juice 4-in-1 filling machine is a set of rinsing, pulp filling, juice filling and capping in one of the moderate (high) temperature filling machine, pulp, juice separately filling solve the problem of uneven content.
Host fully enclosed sealed windows, filling part 100 clean to ensure that the environment in the filling area to reach the desired temperature and filling requirements.
Bottle conveying adopts NECK HOLD, to reduce the adjustment and operation to the machine when changing bottle shape under the circumstance of keep the bottle mouth.
Host using reducer and coupling interaction transfer power to ensure the smooth operation.
Technical Parameter
| Model | RHFC16/8/12/6P | RHFC18/12/18/6P | RHFC24/18/24/8P | RHFC32/18/32/10P |
| Rinsing Head | 16 | 18 | 24 | 32 |
| Pulp filling head | 8 | 12 | 18 | 18 |
| Juice Filling Head | 12 | 18 | 24 | 32 |
| Capping Head | 6 | 6 | 8 | 10 |
| Production capacity (500ml) (B/H) | 3000BPH | 5000BPH | 8000BPH | 11000BPH |
| PET bottle size (mm) | Bottle diameter φ50-φ100mm; Height 150-320mm | |||
| Rinsing water pressure (Mpa) | 0.2-0.25 | |||
| Rinsing water consumption (ton/h) | 1t/hour | 1.2t/hour | 2t/hour | 2t/hour |
| Air pressure (Mpa) | 0.7 | |||
| Air consumption (m3/min) | 0.25m3/min | 0.8m3/min | 0.8m3/min | 0.8m3/min |
| Motor power (KW) | 3.5 | 4 | 6 | 8 |
| Weight (KG) | 5500 | 7500 | 11000 | 13000 |
| Packing Size (L*W*H) (mm) | 3700*2300*2600 | 4300*3000*2600 | 5000*3600*2600 | 6000*4400*2600 |
