10KW Grid Tie Wind Solar Hybrid Controller With Dump Load

10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-1
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-2
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-3
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-4
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-5
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load thumbnail-6

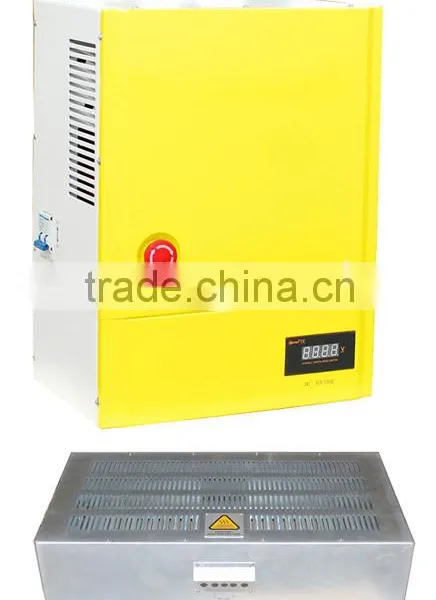

10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-1
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-2
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-3
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-4
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-5
10KW Grid Tie Wind Solar Hybrid Controller With Dump Load photo-6
US$ 1,000 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BANGZHAO OR OEM
Model Number:
BWGT-10kw
Contact Supplier Request Quote Chat Now
Yueqing Bangzhao Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai or Shengzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BANGZHAO OR OEM
Model Number BWGT-10kw
Type Other, wind system

  Grid tie wind solar hybrid controller with dump load 10KW

Product Description





The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.

Two sets of control systems:PWM constant voltage system and three-phase dump load system.
PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately. After 10-20 minutes, the three-phase dump load will stop and the wind turbine will re-start to resume power supply to ensure the safe running of the overall wind turbine generation system.
When the strong or super-strong wind conditions, the controller can conduct constant voltage output to ensure the inverter safety running.
When the condition of disconnected grid-connected inverter, the controller can conduct constant voltage output and wait for inverter resumption.
The three-phase dump load of the controller will automatically start and the inverter will stop grid output when the power grid is off. As soon as the grid power resuming, the controller stops three-phase dump load and the inverter will resume power supply.
For the different wind turbine generator type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.
The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.

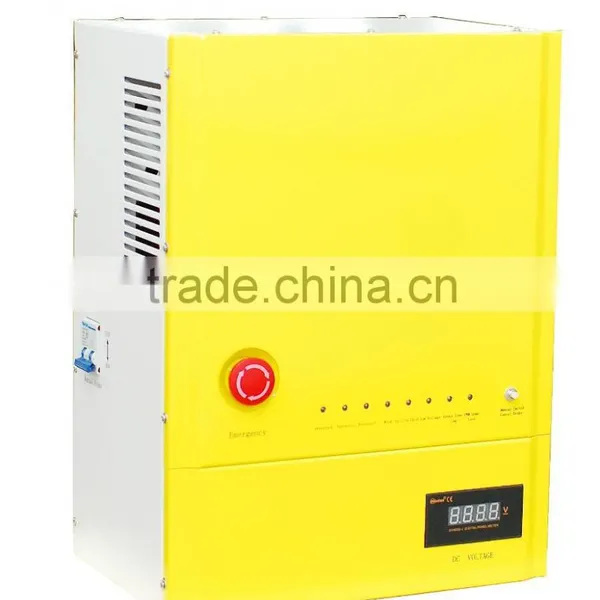

The below LED status indication can be found on the front panel: indications of wind turbine, dump load, three-phase dump load delay time, under pressure, grid power and DC output voltage.
Voltmeter indication: Indicate the controller DC output voltage.
The controller is equipped with emergency stop switch; in case of emergency, press down the emergency stop button in the front panel to cut off all power supply of the controller and the wind turbine will immediately carry out three-phase dump load.
The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.


Technical Parameters of the On Grid Wind turbine Controller 10KW
Type
10KW
Wind turbine rated power
10KW
Wind turbine Max. power
20KW
Function
Rectifier, control, dc output
Display mode
LCD
Display content
Wind turbine voltage, wind turbine current,
wind turbine power, Solar panel voltage,
solar panel current, solar panel power,
DC output voltage, output current,
output power
PWM constant voltage
≥480dc
3-phase dump load voltage of the wind turbine
560±5Vdc
Time-lapse of the wind turbine 3-phase dump load
12-20 min
Low-voltage
≤200Vdc
PWM dump load fuse
32A
DC output fuse
40A
Work environment temperature
-30-60°C
Relative humidity
<90% No condensation
Noise (1m)
<40dB
Degree of protection
IP20(Indoor)
Cooling method
Forced air cooling
*Communication interface (optional)
RS485/USB/GPRS/Ethernet
*Temperature compensation (optional)
-4mv/°C/2V,-35°C~+80°C,
Accuracy:±1°C
Size of the controller
655*480*320 mm
Weight of the controller
26Kg
Size of the dump load
760*520*550 mm
Weight of the dump load
38Kg

Above parameter only for reference

1. Could be custom made to user specifications.  2. Could have solar power control subject to user demand.
