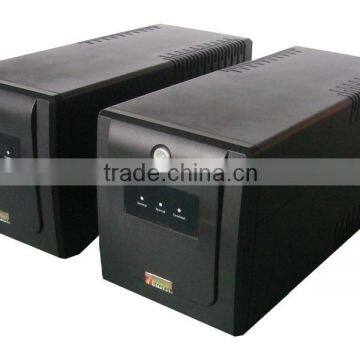

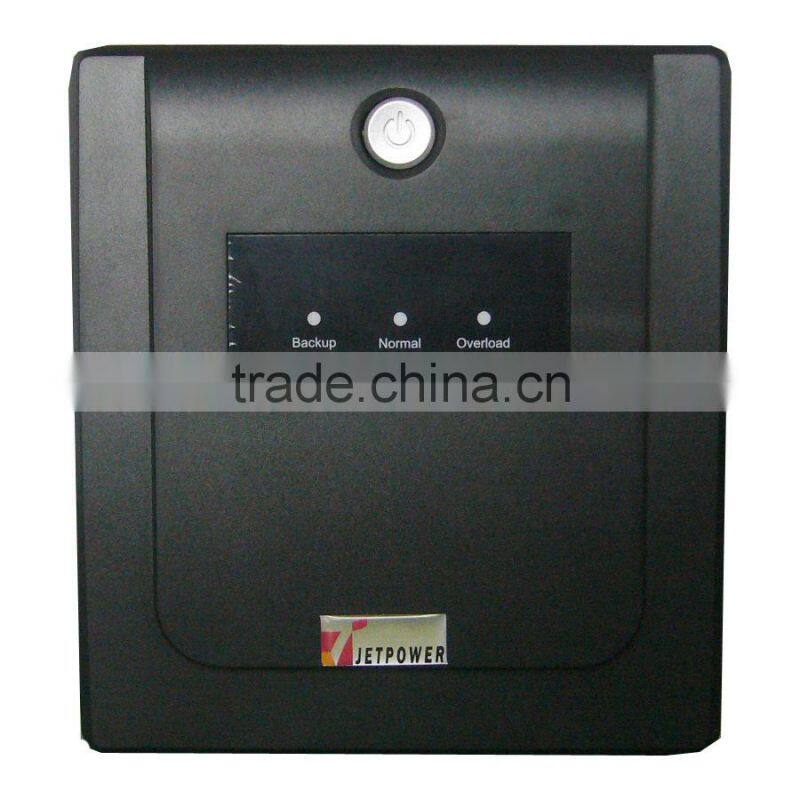

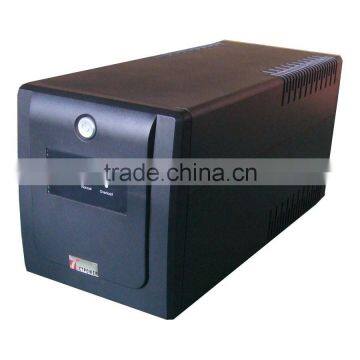

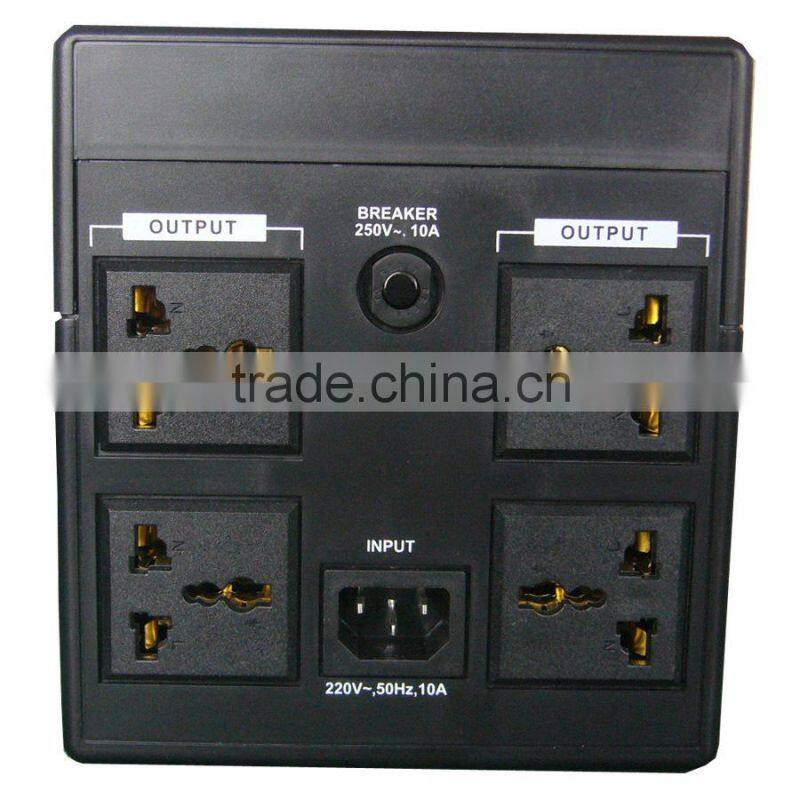

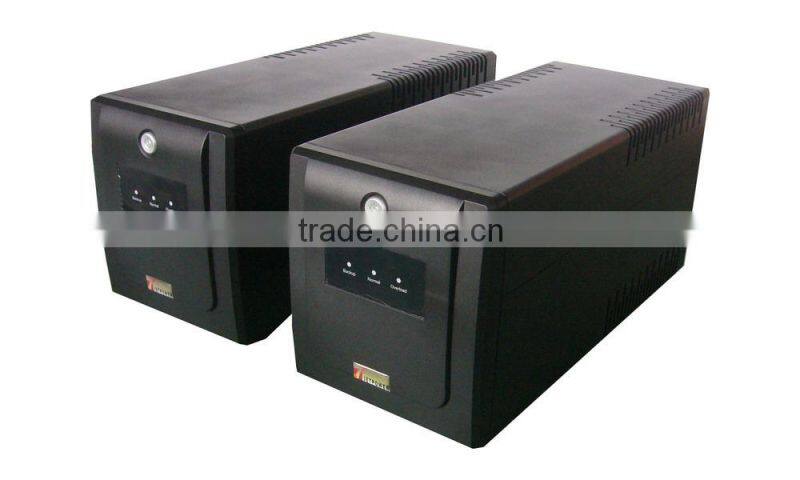

800VA line interactive UPS/UPS with AVR function
The ST Series is line interactive UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over /under voltage, surges, transients, spikes and other electrical abnormalities. With automatic boot voltage regulation and wide input voltage range, ST is a good choice to be applied to all kinds of complex power environment.
(1) Automatic booting when the utility recovers
(2) Wide range of input voltage
(3) Alarm and mute
(4) Auto recharging
(5) Overvoltage and circuit short protection
(6) Interface of RJ45/11 and USB (optional)
MODEL | ST400 | ST600 | ST800 | ST1000 | ST1200 | ST1500 | ST2000 | ST3000 | |
Capacity | 400VA | 600VA | 800VA | 1000VA | 1200VA | 1500VA | 2000VA | 3000VA | |
Input Voltage | 110/120VAC or 220/230/240VAC | 220VAC | |||||||
Input Voltage Range | 85~150VAC/145~290VAC | 175~275VAC | |||||||
Input Frequency | 50/60Hz(Auto sensing) | 50Hz | |||||||
Output Voltage | 110/120VAC or 220/230/240VAC | 220VAC | |||||||
Output Voltage Range | 102-132VAC/200-255VAC | 200~240VAC | |||||||
Output Frequency | 50/60Hz±0.5Hz | 50Hz±0.5Hz | |||||||
Wave Form | PWM (DC mode) | PWM(DC mode) | |||||||
Transfer Time | Typical 2-6ms,Max<=10ms | 10ms | |||||||
QTY & capacity of battery | 1*12V/5AH | 1*12V/7AH | 1*12V/9AH | 2*12V/7AH | 2*12V/7.5AH | 2*12V/9AH | 4*12V/7AH | 4*12V/9AH | |
Charging period | 4~6h to 90% capacity | 10~16hours | |||||||
Protection | Low voltage, overload and short circuit protection | ||||||||
Operation Temperature | 0~40℃, | ||||||||
Humidity | 20%~90%(non-condensing) | 20%~90%(non-condensing) | |||||||
Noise | 40dB | ||||||||
Net Weight(Kg) | 4 | 5.5 | 6 | 10.2 | 10.2 | 10.6 | 19 | 21 |
|
Dimension | 250*95*140
| 305*85*140 | 335*118*190 | 340*110*265 | 408*145*220 | ||||
Optional | LED/LCD,RJ45/11&USB | ||||||||

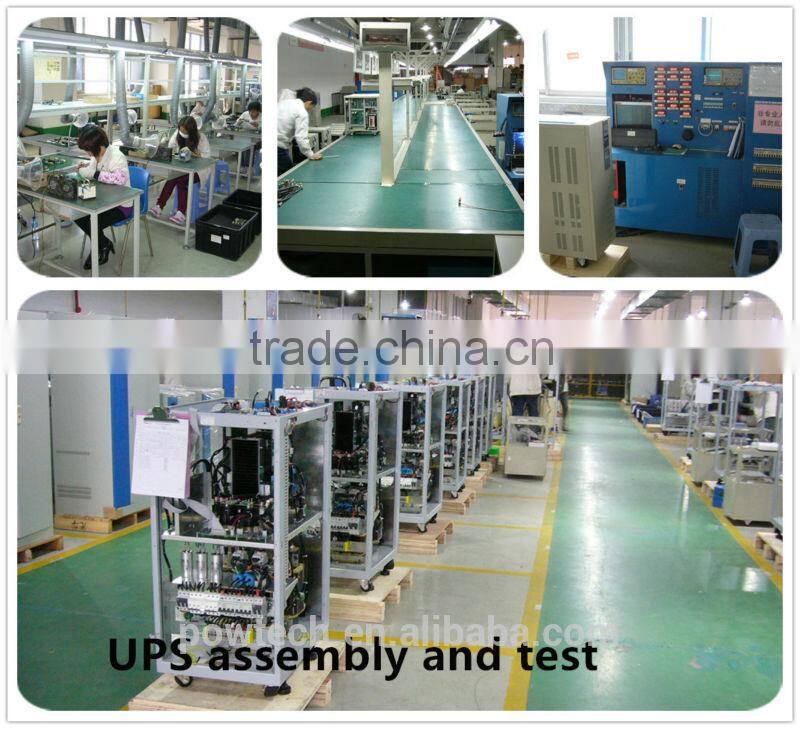

UPS production

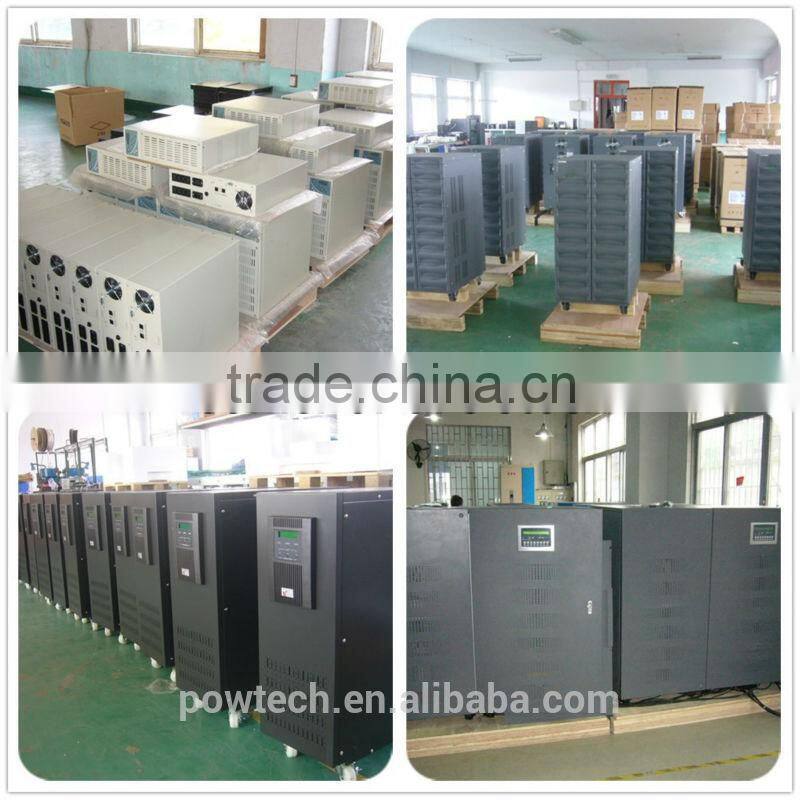

UPS stock
