2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board

Qingdao Powtech Electronics Co., Ltd.
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board thumbnail-1
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board thumbnail-2
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board thumbnail-3
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board photo-1
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board photo-2
2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Recharging Board photo-3
US$ 200 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
NT-2kL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number NT-2kL
Phase Single Phase
Protection Overvoltage
Weight 18KG
Output Voltage 230AC
Type Line Interactive
Application Telecommunications

2KVA line interactive UPS/UPS with AVR with recharging board(Long run time machine)



Product Description



1. Provide Line-Interactive design and true sine wave out put

3. Equipped with Boost and Buck AVR to stabilize input voltage

4. User configurable input voltage range and output voltage

5. DC start function enables UPS to be started up without AC power supplied

6. Large built-in charger with power factor corrected

7. Enable to extend runtime with scalable external battery pack

8. Fully protection for overload, short-circuit and over temperature

9. RS232 & dry contact signal for power management software

10. SNMP card slot is available for 2KVA above

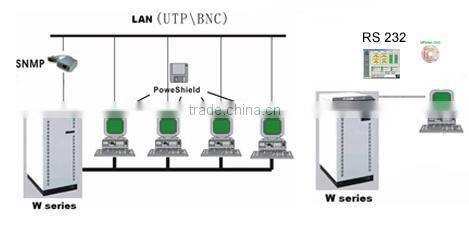

working principle

 2KVA line interactive UPS/ UPS power supply/UPS with AVR with recharging board2KVA line interactive UPS/ UPS power supply/UPS with AVR with recharging board









Horse series Technical specification



Model Name0.5KL0.5KS1KL1KS1.5KL1.5KS2KL2KS3KL3KSNT-6KLNT-8KLNT-10KS
Capacity (VA / Watt)500VA/300W1000VA/700W1500VA/1050W1500VA/900W2000VA/1400W3000VA/2100W6KVA / 4.2KW8KVA /5.6KW10KVA/7KW
OverviewPower Factor0.60.70.60.7
Outlook TowerTower or Rack (3U)Tower
WaveformTRUE SINE WAVE
InputNominal Voltage230V
Voltage Range 150-275Vac160V~299V
Frequency Range45HZ~60HZ
Socket Type      Socket+Fuse HolderIEC 320  C19 Socket + Circuit breakerTerminal block +CB
OutputNominal Voltage230VAC
Voltage Range (AC Mode)200V~253V
Voltage Range (Batt. Mode)230±6%230V±3%
Frequency Range(50/60Hz)±0.5%
Socket Q'ty (Backup+Surge) IEC320-C13x2  or Customized by customer requirementIEC 320 C14*8PCS ;IEC C320 C20*1PCSTerminal blockIEC 320 C14*8pcs + Terminal block
Overload ProtectionOverload Protection (AC Mode) >120%    1min S/D  Alarm (Fuse or C.B Protection)
Overload Protection (Batt Mode)1>120%->15Sec S/D,    >140%->immed UPS Off.110~140%->20Sec, >140%->5Sec.
BatteryVolatge 12VDC24VDC 36Vdc24VDC 48V
QuantityN/C12V7AH*1PCSN/C12V/7ah*2pcsN/C12v/9ah*2pcsN/C12V7AH*4PCSN/C12V12AH*4PCSN/CN/C12V12AH * 12PCS
Cold Start (DC Start)Yes
Hot ReplacementYes
Charger Current10Amax1.5Amax15Amax1.5Amax20A max1.5Amax20AMAX2A20AMAX2A30A MAX30AMAX5Amax
Charger Over ProtectionYes
Charging When UPS offYes
Data LineNetwork Protection(Optional)N/CRJ45 (1 in/1 out)N/C
CommunicationIntelligent InterfaceRS232 OR USB
SNMP slotOptional
Display LED StatusLine,Batt Mode/charging,Overload,FaultLine,Batt Mode/charging,Overload/Fault;battery capacity; load sizeLine/Batt Mode,AVR ,Battery cabacity ;Load size;Overload,Fault,Batt Replacement
LCD (OPTIONAL)O/P voltage  ,Input voltage and frequence;battery capacity ;Load size.O/P voltage  ,Input voltage and frequence;battery capacity ;Load size.Model
ConformanceSafety & EMC ApprovedCE/TUV/FCC
PhysicialDimension(DxWxH)122*193*360mm150*220*390150*220*390455x430x135(mm)420*190*335(mm)540*340*710(mm)
Net Weight6.5kg8.5kg9.5kg13kg11KG18KG28KG21.5KG34.5KG38.25KG60KG102KG
AmbientTemperature0~45°
Related Humidity10%~90%(no condensation)
Altutide1500m















L for long run time version

specifications subject to change without prior notice




  UPS production2KVA line interactive UPS/ UPS power supply/UPS with AVR with recharging board



UPS stock2KVA line interactive UPS/ UPS power supply/UPS with AVR with recharging board
