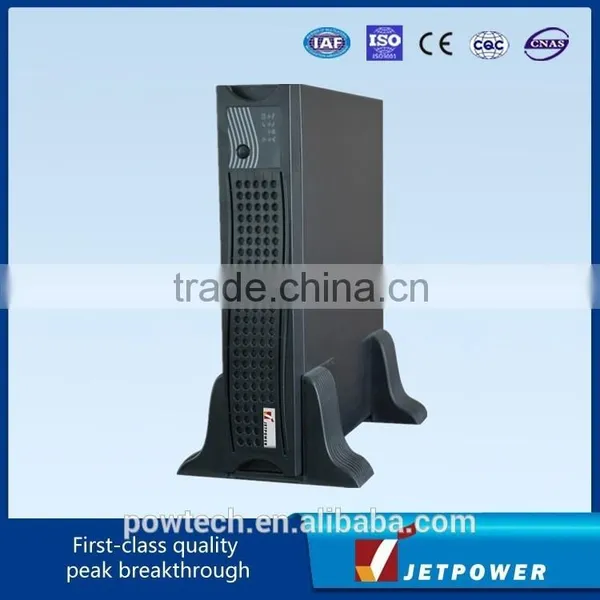

2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Battery

Name: 2KVA Line Interactive UPS/ UPS Power Supply/UPS With AVR With Battery
Brand: JETPOWER
SKU: 129451829
Availability: InStock

Qingdao Powtech Electronics Co., Ltd.

US$ 200 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

JETPOWER

Model Number:

S-RT-2K

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name JETPOWER

Model Number S-RT-2K

Phase Single Phase

Protection Overvoltage

Weight 30KG

Output Voltage 24VDC

Type Line Interactive

Application Telecommunications

2KVA line interactive UPS/UPS with AVR with battery

Product Description

l Line-interactive design and true sine wave output

l Microprocessor control guarantees high reliability

l Built-in Boost and Buck AVR to stabilize input voltage

l Generator compatible

l User-replaceable hot swappable battery design & cold startup capability

l Data line surge protection, USB and RS-232 communication port

l 19” Rack/Tower convertible

l CE approval and FCC class B

Panda series Technical specification

Model		1100VA	1500VA		2000VA
Capacity (W)		715W	975W		1300W
Input	Nominal voltage	115/230VAC
	Voltage range	+/-25%
	Frequency	50/60Hz +/- 6Hz (automatic sense)
Output	Nominal voltage	115/230VAC
	Voltage regulation	+10% ~ -13% (AC mode); +/-8% (battery mode)
	Frequency regulation	50/60HZ ±0.5%
	Overload	105 +/-10% alarm; 140+/-10% for 2mintues then UPS shutdown (AC mode); 105 +/-10% for 20seconds then UPS shutdown; 140+/-10% UPS immediately shutdown (Battery mode);
Waveform		Step sine wave
Transfer Time(ms)		≤10ms
Battery	Type	VRLA
	Voltage	24Vdc
	Backup time	10~25 minutes (depends on load)
	Recharge time	6hrs recharge to 90%
Data line surge suppression		1482 Joules (115V type); 476 Joules (230V type)
TEL/FAX surge suppression	Joules	114 Joules
	Type	RJ11 (one pair), 2C
Networking Surge	Performance	Up to 100Base-T
	Type	RJ45 (one pair), 2C
Status LEDs		Line Normal, Battery Backup, Boost, Buck, Battery Replacement, Fault, Overload, Load capacity/Battery capacity
Audible alarm		Battery backup, battery backup over 30minutes, battery low, overload, fault
Communication Interface		USB, RS-232
Ambient	Temperature	0 ~ 40℃
	Humidity	10~95%, no condensation
	Altitude	3000m
Safety & EMC		CE, TUV, FCC
Physical	SIZE(W×D×H, mm)	415 * 430 * 89
	Weight (kg) (w batt.)	20.4kg		26kg		30kg
