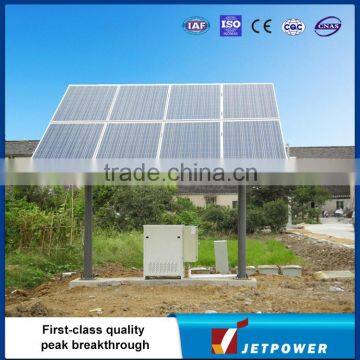

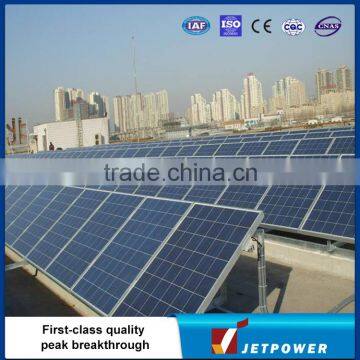

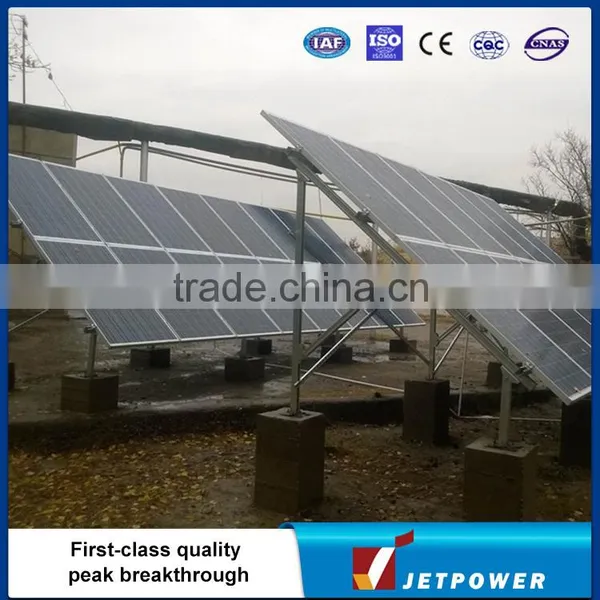

Off Grid 1KW ~10KW Home Solar Power System
1. System Configuration
System model | SN-1K |
Solar panel: | 1000W (250w poly panels * 4) |
Battery: | 24V/200AH(12V200AH*2pcs) |
Inverter: | 24V/1000W |
Controller: | 24V40A |
PV bracket |
|
Cable | PV cables 4mm², 30meters ; Battery charge cables 10mm², 20meters Inverter input cables: 16mm², 10meters |
Output port: | AC:230V/50hz |
Model | SN-2K |
Solar panel: | 2000W(250WX8) |
Battery: | 48V/200AH(12V200AH*4pcs) |
Inverter: | 48V/2000W |
Controller: | 48V/50A |
PV bracket |
|
Cable | PV cables 4mm², 45meters; Battery charge cables 10mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 4 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-3K |
Solar panel: | 3000W(250WX12) |
Battery: | 48V/300AH(12V150AH*8pcs) |
Inverter: | 48V/3000W |
Controller: | 48V/50A |
PV bracket |
|
Cable | PV cables 4mm², 70meters; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 6 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-4K |
Solar panel: | 4000W(250WX16) |
Battery: | 48V/400AH(12v200AH*8pcs) |
Inverter: | 48V/4000W |
Controller: | 48V/60A |
PV bracket |
|
Cable | PV cables 4mm², 100meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 8 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-5K |
Solar panel: | 5000W(250WX20) |
Battery: | 96V/240AH(12v240AH*8pcs) |
Inverter: | 96V/5000W |
Controller: | 96V/50A |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 5 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-6K |
Solar panel: | 6000W(250WX 24) |
Battery: | 96V/300AH(12V150AH*16pcs) |
Inverter: | 96V/6000W |
Controller: | 96V/60A |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 6 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-10K |
Solar panel: | 10KW(250WX 40) |
Battery: | 220V/200AH(2V200AH*110pcs) |
Inverter: | 220V/10KW (combined solar charger) |
Controller: | |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 5 way in X 1 out |
Output port: | AC:230V/50hz |
2. Working Principle
3. System features
1)Professional designs for home and business uses
2)Store power in battery, system can be used when public utility grid stops
3)Cost effective and sustainable system
4)Only use clear and sustainable sun energy
5)Easy Installation
6)Military quality system ensure 25 years power output warranty
1. Major manufacturer,Competitive price, good quality and on-time delivery
2. ISO9001:2008 certification
3. Many years' production experience
1. Abroad site installation & training available any time
2. Best prices compared to same configuration
3. Customized product available
4. Good after-sale response
5. Small order accepted
6. Excellent workmanship
