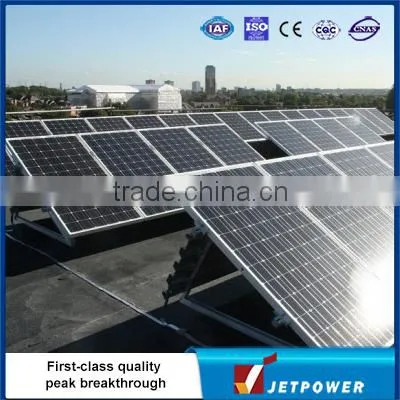

1KW,2KW,3KW,4KW,5KW,6KW,10KW Off Grid Home Solar System , Solar Energy System (Fixed)
- 500 Set / Sets per Month
- Qingdao China
- T/T
-
Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
-
Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
-
10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
-
Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
-
Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
-
TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
| Brand Name: | JETPOWER | Model Number: | SN-1K,2K,3K,4K,5K,6K,10K | Specification: | Normal |
| Application: | Home | Output Voltage (V): | 230V | Load Power (W): | 0.8KVA |
| Solar Power (W): | 1KW | Work Time (h): | 7~8h |
Product Description
Off Grid Home Solar Power System ( 1KW ~10KW )
1. System Configuration
System model | SN-1K |
Solar panel: | 1000W (250w poly panels * 4) |
Battery: | 24V/200AH(12V200AH*2pcs) |
Inverter: | 24V/1000W |
Controller: | 24V40A |
PV bracket |
|
Cable | PV cables 4mm², 30meters ; Battery charge cables 10mm², 20meters Inverter input cables: 16mm², 10meters |
Output port: | AC:230V/50hz |
Model | SN-2K |
Solar panel: | 2000W(250WX8) |
Battery: | 48V/200AH(12V200AH*4pcs) |
Inverter: | 48V/2000W |
Controller: | 48V/50A |
PV bracket |
|
Cable | PV cables 4mm², 45meters; Battery charge cables 10mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 4 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-3K |
Solar panel: | 3000W(250WX12) |
Battery: | 48V/300AH(12V150AH*8pcs) |
Inverter: | 48V/3000W |
Controller: | 48V/50A |
PV bracket |
|
Cable | PV cables 4mm², 70meters; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 6 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-4K |
Solar panel: | 4000W(250WX16) |
Battery: | 48V/400AH(12v200AH*8pcs) |
Inverter: | 48V/4000W |
Controller: | 48V/60A |
PV bracket |
|
Cable | PV cables 4mm², 100meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 8 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-5K |
Solar panel: | 5000W(250WX20) |
Battery: | 96V/240AH(12v240AH*8pcs) |
Inverter: | 96V/5000W |
Controller: | 96V/50A |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 5 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-6K |
Solar panel: | 6000W(250WX 24) |
Battery: | 96V/300AH(12V150AH*16pcs) |
Inverter: | 96V/6000W |
Controller: | 96V/60A |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 6 way in X 1 out |
Output port: | AC:230V/50hz |
Model | SN-10K |
Solar panel: | 10KW(250WX 40) |
Battery: | 220V/200AH(2V200AH*110pcs) |
Inverter: | 220V/10KW (combined solar charger) |
Controller: | |
PV bracket |
|
Cable | PV cables 4mm², 120meters ; Battery charge cables 16mm², 20meters Inverter input cables: 16mm², 20meters |
Combiner box | 5 way in X 1 out |
Output port: | AC:230V/50hz |
2. Working Principle
3. System features
1)Professional designs for home and business uses
2)Store power in battery, system can be used when public utility grid stops
3)Cost effective and sustainable system
4)Only use clear and sustainable sun energy
5)Easy Installation
6)Military quality system ensure 25 years power output warranty
1. Major manufacturer,Competitive price, good quality and on-time delivery
2. ISO9001:2008 certification
3. Many years' production experience
1. Abroad site installation & training available any time
2. Best prices compared to same configuration
3. Customized product available
4. Good after-sale response
5. Small order accepted
6. Excellent workmanship
