Help CenterSeagull UPS 1000VA (1U)
US$ 20 - 30
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
SS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
JETPOWER
Model Number
SS
Phase
Single Phase
Protection
Overvoltage
Weight
12.8kg
Output Voltage
220Vac
Type
Line Interactive
Application
Computer

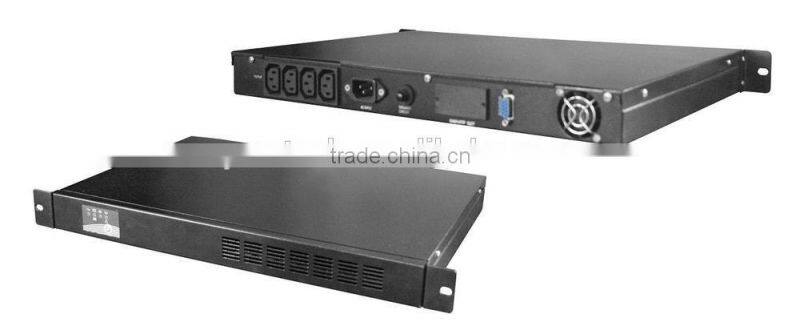

Seagull UPS 1000VA (1U)
Feature:
(1) LED panel
(2) Advanced Microprocessor control
(3) Line Interactive design provides high reliability and efficiency
(4) Pure sinewave design
(5) Overload protection and alarm
(6) DC start (Cold start) function
(7) Intelligent battery management
(8) Saving and battery over discharge protection
(9) RS232 communication (cable included)
(10) Snmp slot available (optional)
| Model Name | SS600 | SS1000 | |
| Overview | Capacity (VA / Watt) | 600VA / 420W | 1000VA / 700W |
| Surge Protection Only (VA) | 600VA | 1000VA | |
| Power Factor | 0.7 | 0.7 | |
| Outlook | Rack | Rack | |
| Design Type | Line Interactive | Line Interactive | |
| Waveform | Sine wave | Sine wave | |
| AVR Function | Boost, Buck | Boost, Buck | |
| AVR Active LED Indicator | Boost, Buck | Boost, Buck | |
| Input | I/P Nominal Voltage | 115 or 230Vac | 115 or 230Vac |
| I/P Voltage Range | 86~144V/165~275V | 86~144V/165~275V | |
| I/P Voltage Range (Duble AVR) | No | No | |
| I/P Frequency Range | 60Hz-->115V/50Hz-->230V±6Hz | 60Hz-->115V/50Hz-->230V±6Hz | |
| I/P Power Line Surge (115V/230V) | 1482/476 Joules | 1482/476 Joules | |
| I/P Socket Type | Power Cord+C.B->115V Inlet Socket+C.B->230V | Power Cord+C.B->115V Inlet Socket+C.B->230V | |
| Output | O/P Nominal Voltage | 115/230Vac | 115/230Vac |
| O/P Voltage Range (AC Mode) | 100~127V/200~253V (+10~-13%) | 100~127V/200~253V (+10~-13%) | |
| O/P Voltage Range (Double AVR) | No | No | |
| O/P Voltage Range (Batt. Mode) | 111~118V/223~236.9V (±3%) | 111~118V/223~236.9V (±3%) | |
| O/P Frequency Stability | 50/60Hz +/- 0.5% | 50/60Hz +/- 0.5% | |
| O/P Manual Configature Set | No | No | |
| O/P Socket Q'ty (Backup+Surge) | (NEMA/IEC)*2 | (NEMA/IEC)*4 | |
| Transfer Time | < 4ms (typical) | < 4ms (typical) | |
| Overload | Overload Protection (AC Mode) | >110 Buzzer Alarm, | >110 Buzzer Alarm, |
| Overload Protection (Batt Mode) | 110~140%->20Sec S/D, >140%->immed UPS Off. | 110~140%->20Sec S/D, >140%->immed UPS Off. | |
| Battery | Backup Time-Full Load | 3 Minutes | 3 Minutes |
| Back-up Time-Half Load | 3~20 minutes Depends on load | 3~20 minutes Depends on load | |
| Battery Volatge & Quantity | 12VDC (12V/7AH*1) | 24VDC (12V/7AH*2) | |
| Battery Cold Start (DC Start) | Yes | Yes | |
| Battery Replacement | Easy Replacement | Easy Replacement | |
| External Battery | No | No | |
| Charger Current (STD) Internal | 1A Max. | 1A Max. | |
| Charger Current (Large) External | No | No | |
| Charger Over Protection | Yes | Yes | |
| Charging When UPS off | Yes | Yes | |
| Microprocessor Control | Yes | Yes | |
| Communication | Intelligent Interface | RS232 | RS232 |
| Monitoring Software | UPSilon2000 | UPSilon2000 | |
| SNMP Card | Inbuilt (DP520) | Inbuilt (DP520) | |
| Safety & EMC Approved | CE | CE | |
| Indicators LED Display | 4 LEDs on Front Panel | 4 LEDs on Front Panel | |
| LED Status | Line, Batt Mode/charger,Overload/Fault | Line , Batt Mode/charger,Overload/Fault | |
| LCD | optional | optional | |
| Environment | Temperature | 0-40 degree C | |
| Humidity | 3000 Meters max Elevation 10-95% | ||
| Audible Noise | Less than 45dBA (at 1M) | ||
| Physical | Dimension(DxWxH) | 280*430*89 | 300*430*89 |
| Weight (Kg/lb) | 11.5kg | 16kg | |
|
|||
