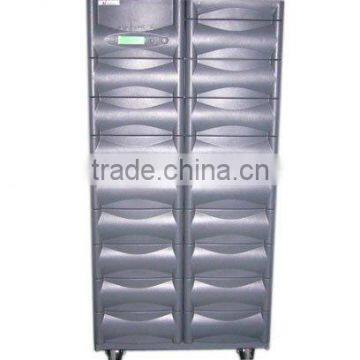

Online UPS 50kva
- 0 per Month
- T/T
- Stackable Rack Energy Storage System Home energy storage system 5kWh 10kWh 15kWh and 20kWh
- Schneider Electric UPS
- Solar Generator With 5000W Inverter Portable Pull Rod LiFePO4 Battery Power Station
- 3000W Power bank EPS AC220V portable energy storage home power supply
- 5KW Outdoor Mobile Portable power station 220V Type-C DC12V DC5V Output UPS
- 500W portable UPS LFP Battery Solar Generator Backup Power Station
Product Details
Place of Origin: | Shandong, China | Brand Name: | Powtech | Model Number: | PQZ |
Phase: | Single Phase | Protection: | Other, Lighting/Over voltage/Short circuit/Overload/Over temperature | Output Voltage: | 220VAC |
Type: | Other, On-line, Low frequency | Application: | Medical |
Product Description
Specifications
1. Online low frequence UPS2. Isolation transformer on the output
3. Input: 380Vac +/-25%, 3phase
4. Output: 220Vac, 1phas
PQZ6K3~60K3Three- in and single out | |||||||||
Mode: | PQZ6K3 | PQZ10K3 | PQZ15K3 | PQZ20K3 | PQZ30K3 | PQZ40K3 | PQZ50K3 | PQZ60K3 | |
Capacity (VA/W) | 6K/4.8K | 10K/8K | 15K/12K | 20K/16K | 30K/24K | 40K/32K | 50K/40 | 60K/48K | |
Input Voltage | Three phase with four Lines+ground wire,380V±25% | ||||||||
Noise | ≤60dB(distance 1m) | ≤65dB(distance 1m) | |||||||
Size (D×W×H,mm) | 620×343×995 | 650×700×1510 | |||||||
Weight(Kg) (w/o battery) | 130 | 165 | 180 | 220 | 400 | 450 | 530 | 620 | |
Common parameters | |||||||||
Input | Frequency | 50Hz /60Hz ± 10% | |||||||
Power factor | ≥0.95 | ||||||||
Output | Voltage | {0> 22220V± 0.5%<}0{><0}
| |||||||
Voltage regulation | Stable ±1%,dynamic ±2%, (<20ms for 0-100%load change) | ||||||||
Frequency stabilization | 50Hz /60Hz ± 0.5% (Battery Mode) | ||||||||
Frequency slow rate | < 1Hz / second | ||||||||
Transient response | ± 0.4% (100% instant load fluctuation) | ||||||||
THD | <3% for linear load; <5% for non-linear load | ||||||||
Overload | 110%~150% for 10seconds; >150% for 1second | ||||||||
Wave form | True sine wave | ||||||||
Efficiency | Input AC to output AC | > 90% | |||||||
Transfer time | AC mains fails and/or restores | 0second | |||||||
UPS to BYPASS | < 4 ms | ||||||||
Battery | Voltage | 192V | |||||||
Charge time | 8 hrs recharge to 90% capacity | ||||||||
Alarm | Battery discharge | Beeps once every 4 seconds when battery discharge | |||||||
Beeps once every 1 second when battery low. | |||||||||
Beeps continuously when battery discharge stop | |||||||||
UPS fault | Beeps continuously | ||||||||
Protection | Battery low | Auto shutdown when battery low without fuse protection. | |||||||
Overload | 110∼150% overload for 10 seconds, then auto jumps to BYPASS; Auto resumes when overload removed | ||||||||
Over temperature | Auto jumps to BYPASS when UPS internal temperature >85°C | ||||||||
Output short circuit | Current limits, auto shutdown, no fuse switch protection. | ||||||||
UPS fault | Auto jumps to BYPASS | ||||||||
Noise Filter<0} | 10~10KHz at 40 db; 100KHz~100MHz at 70 db | ||||||||
Display | LCD | Input and output voltage, frequency; battery voltage and output power (%), etc | |||||||
LED (BLV) | LED (BLV) turns on when battery voltage low. | ||||||||
Ambient | Temperature | 0~40 | |||||||
Relative humidity | 10%~90% (No condensation) | ||||||||
Altitude | 1500 meters |
