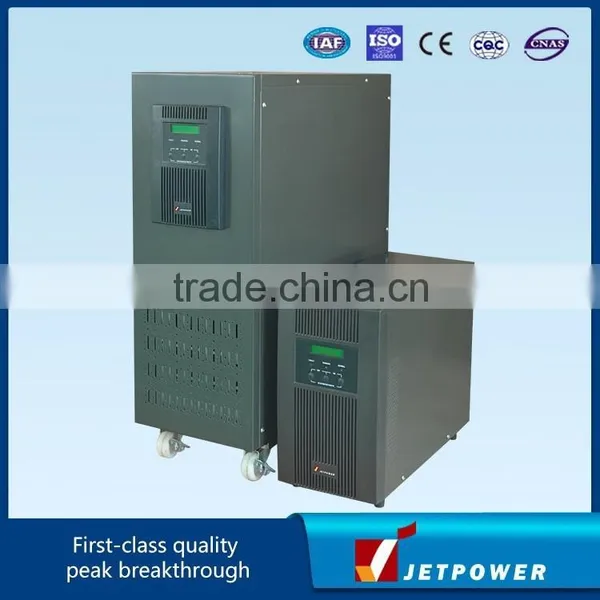

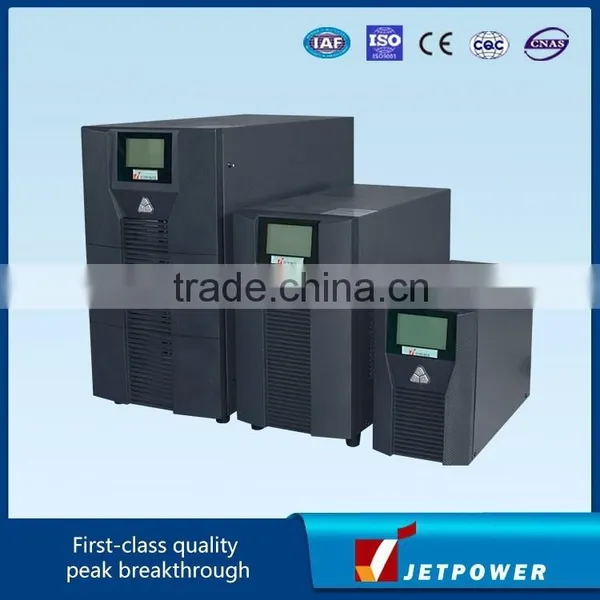

Help CenterOnline UPS 10kva/High Frequency UPS
Related Products
High Frequence Online UPS(PP series)
High frequency online UPS(PP series)
PP series use advanced PWM technology with double conversion technology to an optimum solution approaching a line-interactive cost. The expanded input range increases battery life by eliminating unnecessary or nuisance discharge and recharge. Double conversion and advanced AC line filtering assures your equipment well protected. Runtimes can also be expanded with additional batteries providing worry free for long blackout.
With disturbances such as power sags, surges, spikes, switching transients, brownouts or complete power failure, the potential is high for data damage or loss, file corruption and hardware deterioration, which is not always immediately detected. The PP series can provide protection from such problems. Included with each UPS is UPSilon2000 power management software provides user with useful management functions such as power event logging, remote monitor and unattended file saving when blackout.
With proven field experience all over the world, including some poorest power regions, the new generation of PP series provides an optimum choice for complete power protection on all networking and telecommunication equipment.
Technical specifications:
Model |
6KVA |
6KVA(L) |
10KVA |
10KVA(L) |
10KVA(L) (3/1) |
15KVA(L) (3/1) |
20KVA(L) (3/1) |
||||||
Capacity (KW) |
4.2KW |
7KW |
7KW |
10.5KW |
14KW |
||||||||
Input |
Voltage, Frequency |
176-276VAC, 1phase/3wire, 46~54Hz |
304-478VAC, 3phase/5wire, 46~54Hz |
||||||||||
Bypass voltage |
176~261VAC |
||||||||||||
Current |
23A |
37A |
39A |
69A |
91A |
||||||||
Power factor |
0.98 |
||||||||||||
Protection type |
32A NFB |
50A NFB |
100A NFB |
||||||||||
Generator |
Support by any generator |
||||||||||||
Output |
Waveform |
True sine wave |
|||||||||||
Voltage regulation |
220/230/240VAC +/-1% |
||||||||||||
Transient response |
≤5% (50% - 100% -50%) |
||||||||||||
Voltage distortion |
<2% THD, linear load, <6% THD, non-linear load |
||||||||||||
Frequency regulation |
(50+0.05) Hz (battery mode) |
||||||||||||
Frequency slow rate |
1 Hz/s |
||||||||||||
Overload |
110∼150% for 30sec, then transfer to bypass and auto resume; 150% for 300ms |
||||||||||||
Crest ratio |
3:1 |
||||||||||||
Battery |
Voltage |
240VDC |
|||||||||||
Charge current (max.) |
2A |
4.2A |
2A |
4.2A |
4.2A |
4.2A |
4.2A |
||||||
Efficiency |
88% |
||||||||||||
Transfer Time |
0ms |
||||||||||||
Indicator |
Three (3) LED and One (1) LCD |
||||||||||||
Interface |
RS-232 |
Power management software (UPSilon 2000) |
|||||||||||
SNMP (Optional) |
Power management through SNMP manager and Web browser |
||||||||||||
Ambient |
Temperature |
0~40 ; 32~104 |
|||||||||||
Relative Humidity |
0-95% non-condensing |
||||||||||||
Physical |
Weight |
84kg |
35kg |
93kg |
38kg |
38.5kg |
55kg |
55kg |
|||||
Dimension (L*W*H, mm) |
570×260×717 |
||||||||||||
1. Major manufacturer,Competitive price, good quality and delivery in time
2. ISO certificated
3. Many years' production experience
4. Abroad site installation & training available any time
5.Customized
7. Good after-sales response
8. Small order accepted
9. Excellent workmanship
