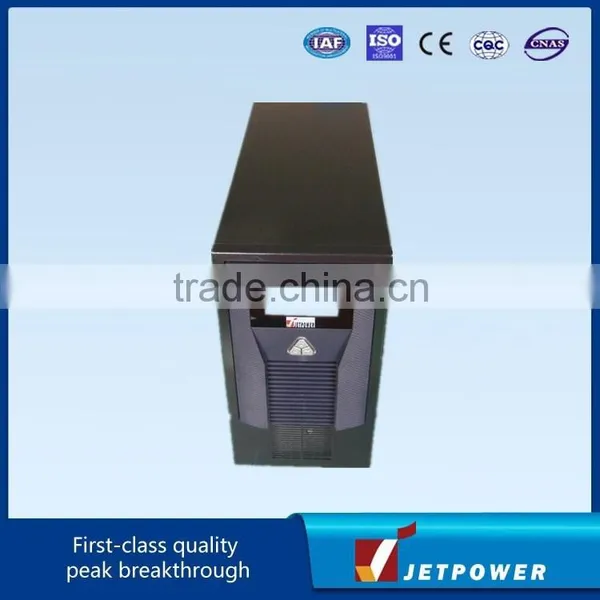

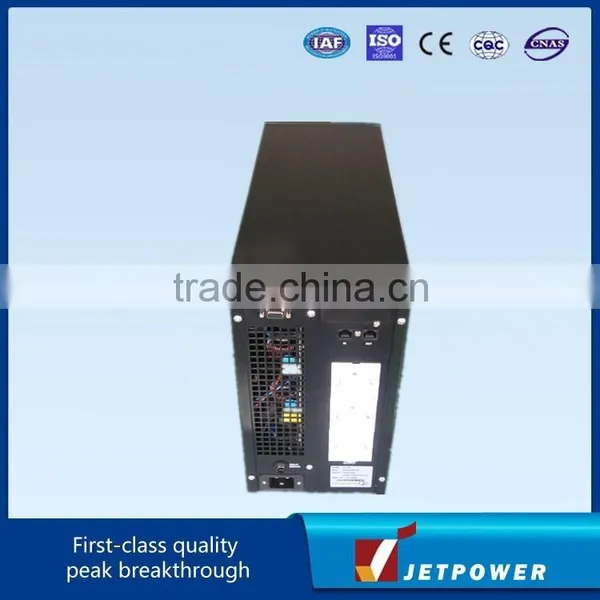

Online UPS 20KVA (High frequency)
- 30 Unit / Units per Month
- Qingdao
- T/T
- Stackable Rack Energy Storage System Home energy storage system 5kWh 10kWh 15kWh and 20kWh
- Schneider Electric UPS
- Solar Generator With 5000W Inverter Portable Pull Rod LiFePO4 Battery Power Station
- 3000W Power bank EPS AC220V portable energy storage home power supply
- 5KW Outdoor Mobile Portable power station 220V Type-C DC12V DC5V Output UPS
- 500W portable UPS LFP Battery Solar Generator Backup Power Station
Product Details
Place of Origin: | Shandong, China | Model Number: | PP | Phase: | Three Phase |
Protection: | Other, Lighting/Over voltage/Short circuit/Overload | Output Voltage: | 220/230/240VAC | Type: | Other, On-line, High frequency |
Application: | Telecommunications |
Product Description
UPS power supply/High Frequence Online UPS
UPS power supply/High frequency online UPS
PP series use advanced PWM technology with double conversion technology to an optimum solution approaching a line-interactive cost. The expanded input range increases battery life by eliminating unnecessary or nuisance discharge and recharge. Double conversion and advanced AC line filtering assures your equipment well protected. Runtimes can also be expanded with additional batteries providing worry free for long blackout.
With disturbances such as power sags, surges, spikes, switching transients, brownouts or complete power failure, the potential is high for data damage or loss, file corruption and hardware deterioration, which is not always immediately detected. The PP series can provide protection from such problems. Included with each UPS is UPSilon2000 power management software provides user with useful management functions such as power event logging, remote monitor and unattended file saving when blackout.
With proven field experience all over the world, including some poorest power regions, the new generation of PP series provides an optimum choice for complete power protection on all networking and telecommunication equipment.
Model | 6KVA | 6KVA(L) | 10KVA | 10KVA(L) | 10KVA(L) (3/1) | 15KVA(L) (3/1) | 20KVA(L) (3/1) | ||||||
Capacity (KW) | 4.2KW | 7KW | 7KW | 10.5KW | 14KW | ||||||||
Input | Voltage, Frequency | 176-276VAC, 1phase/3wire, 46~54Hz | 304-478VAC, 3phase/5wire, 46~54Hz | ||||||||||
Bypass voltage | 176~261VAC | ||||||||||||
Current | 23A | 37A | 39A | 69A | 91A | ||||||||
Power factor | 0.98 | ||||||||||||
Protection type | 32A NFB | 50A NFB | 100A NFB | ||||||||||
Generator | Support by any generator | ||||||||||||
Output | Waveform | True sine wave | |||||||||||
Voltage regulation | 220/230/240VAC +/-1% | ||||||||||||
Transient response | ≤5% (50% - 100% -50%) | ||||||||||||
Voltage distortion | <2% THD, linear load, <6% THD, non-linear load | ||||||||||||
Frequency regulation | (50+0.05) Hz (battery mode) | ||||||||||||
Frequency slow rate | 1 Hz/s | ||||||||||||
Overload | 110∼150% for 30sec, then transfer to bypass and auto resume; 150% for 300ms | ||||||||||||
Crest ratio | 3:1 | ||||||||||||
Battery | Voltage | 240VDC | |||||||||||
Charge current (max.) | 2A | 4.2A | 2A | 4.2A | 4.2A | 4.2A | 4.2A | ||||||
Efficiency | 88% | ||||||||||||
Transfer Time | 0ms | ||||||||||||
Indicator | Three (3) LED and One (1) LCD | ||||||||||||
Interface | RS-232 | Power management software (UPSilon 2000) | |||||||||||
SNMP (Optional) | Power management through SNMP manager and Web browser | ||||||||||||
Ambient | Temperature | 0~40 ; 32~104 | |||||||||||
Relative Humidity | 0-95% non-condensing | ||||||||||||
Physical | Weight | 84kg | 35kg | 93kg | 38kg | 38.5kg | 55kg | 55kg | |||||
Dimension (L*W*H, mm) | 570×260×717 |
