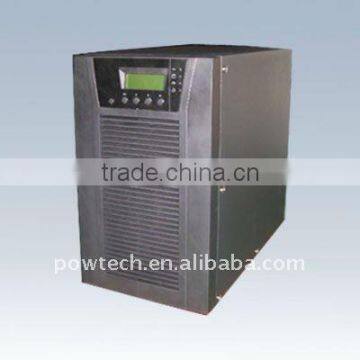

2KVA/1.8KW Online UPS

2KVA/1.8KW Online UPS thumbnail-1
2KVA/1.8KW Online UPS photo-1
US$ 100 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Powtech
Model Number:
HP series
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Powtech
Model Number HP series
Phase Single Phase
Protection Overvoltage
Weight 13kg
Output Voltage 220VAC
Type On-line
Application Telecommunications

HP series single phase online UPS

Product Description

HP series single phase online UPS

Technical Specifications:

HP series UPS

Model   1KVA(L)   2KVA(L)   3KVA(L)
Capacity (KW)   0.9KW   1.8kW   2.7KW
Input   Voltage   60~138Vac, 170 ~290Vac, 1phase
Frequency   40 to 70Hz
Power Factor   >=0.98
Output   Voltage, Frequency   100, 110, 120, 127Vac +/-2% or, 200, 208, 220, 230, 240Vac+/-2% 50Hz or 60Hz+/-0.2Hz ( Battery mode)
Transient Response   +/-3%(100% load change)
Waveform    sine wave
Distortion     THD < 3% at 0~100 linear load
Overload capacity   110 - 150% for 30sec, then transfer to bypass and auto resume; > 150% for 300ms
Crest Ratio   3:1
Battery   Capacity   7Ah /12V*3pcs   7Ah/12V*8pcs   7Ah/12V*8pcs
Recharge time   5 hrs to 90% of full capacity after full load discharge
Bypass   Automatic Transfer   Overload and UPS failure
Transfer by setting   Voltage range:176V-253V (re-settable via LCD panel)
Transfer Time                    0 ms
Indicator   Three (3) LED and one (1) LCD
Interface   RS-232   Power monitoring software (UPSilon 2000)
SNMP slot (optional)   SNMP manager and Web browser
Surge Protection   RJ11 I/O port available for 10 base T network or Fax / Modem
Ambient   Temperature   0 ~40deg ;   32 F~104 F
Relative Humidity   0-95% non-condensing
Acoustic Noise (at 1m)   < 45 dB   < 50dB
Physical   Net weight   14.5kg (7.5kg)   33kg (13.8kg)   34kg (14.8kg)
Dimension (L*W*H, mm)   400*145*220   465*200*352   465*200*352



Production Line

 2KVA/1.8KW online UPS2KVA/1.8KW online UPS

Certifications

 2KVA/1.8KW online UPS2KVA/1.8KW online UPS2KVA/1.8KW online UPS

Packaging & Shipping

 2KVA/1.8KW online UPS

Why choose us

1.Excellent quality

2.Favored price

3.Experienced workers team

4.Professional after-sales service

5.Online UPS,line interactive UPS,offline UPS,inverters leading supplier from China

6.Customized
