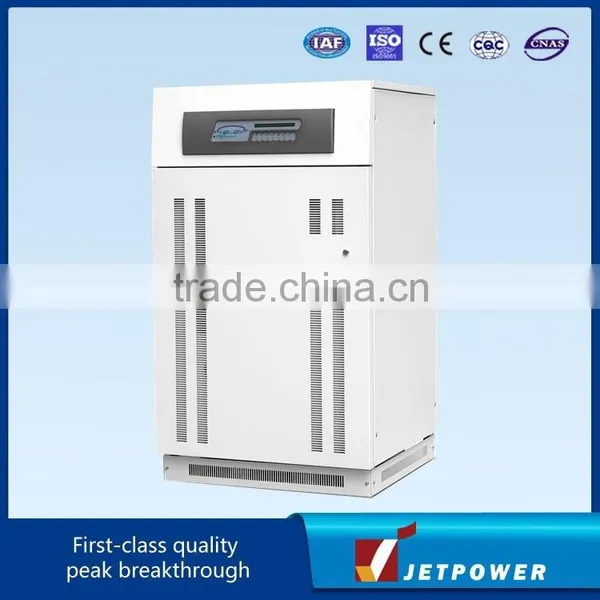

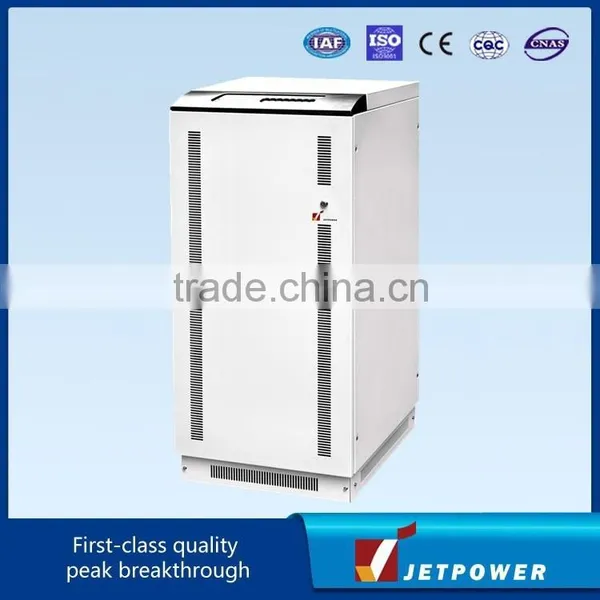

Online UPS 120KVA/3Phase

Power (kVA)

10

15

20

30

40

60

80

100

120

Input

Nominal voltage

400Vac, three phase

Voltage range

+/-20%

Frequency range

45~65Hz

Power factor

>0.92

Current THD

<5%

Soft startup

10seconds

Bypass

Nominal voltage

230Vac, single phase

Allowable voltage

+/-15% (+/-10% ~ +/-25%, settable thru LCD)

Nominal frequency

50/60Hz (auto sense)

Allowable frequency

+/-2% (+/-1% ~+/-5%, settable thru LCD)

Battery

Voltage

384Vdc

480Vdc

Max. charge current

0.2 * C10

Output

Rated power (kVA)

10

15

20

30

40

60

80

100

120

Active power (kW)

8

12

16

24

32

48

64

80

96

Nominal voltage

400Vac, three phase/5wire (348~424, settable)

Voltage regulation

+/-1% (static); +/-5% (dynamic)

Nominal current (A)

14

22

29

43

58

87

115

145

174

Frequency

50/60Hz (settable)

Frequency regulation

+/-0.05% (Battery mode); +/-2% (AC normal, settable from +/-1% to +/-5%)

Crest ratio

3:1

Wave form

True sine wave

Overload

110% for 5hrs, 125% for 10mintues, 150% for 1mintues

Interface

Contact relay

Dry contact relay

Comm.

RS-232

Remote control

Emergency power off, bypass

Noise

54dBA, 1m

60dBA, 1m

65dBA, 1m

Protection

IP20

Ambient

Temperature: 0~40, <95% no condensation

Efficiency

>90%

>91%

>92%

Safety & EMC

Safety: EN62040-1;  EMC: EN62040-2 ClassA 73/23-93/68-89/336 EEC EN62040-3

Physical

Weight(kg)

210

220

230

282

330

450

555

650

730

Size (H*W*D,mm)

1200*555*720

1400*800*740

1400*1070*740
