Residue Burr Sand Blasting Cabint 9080EA

Residue Burr Sand Blasting Cabint 9080EA thumbnail-1
Residue Burr Sand Blasting Cabint 9080EA photo-1
US$ 1,400 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
hst
Contact Supplier Request Quote Chat Now
Hangzhou Huashengtong Machinery Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name hst
Model Number HST9080EA
Feature Critical Cleaning / Residue Free
Fuel Electric
Certification CSA
Cleaning Type Manual
Industry Used Electronic Industry
Material Metal / Coil
Power(W) 750
Dimension(L*W*H) 900*800*580

Specifications

Residue burr sandblasting cabint 9080EA are suitable for surface treatment of all products,plastic and glass ect.

                                            Residue burr sand blasting cabint 9080EA

Product Description

Application:

Sand blast machine are suitable for surface treatment of all  products of metal, plastic and glass ect ,removing oxide skin. residues burrs and scratches can be used for decoration

light .matte and strengthen management , There are cyclone separation system and dust removal system ,

separator will separate the abrasive from dust .And dust removal system can deal with and collect the emit

useless dust ,and can vibrating clean up dust automatically .dust remove effect is good ,reduce the cost of

abrasive and improve efficiency ,and there is no environmental pollution.

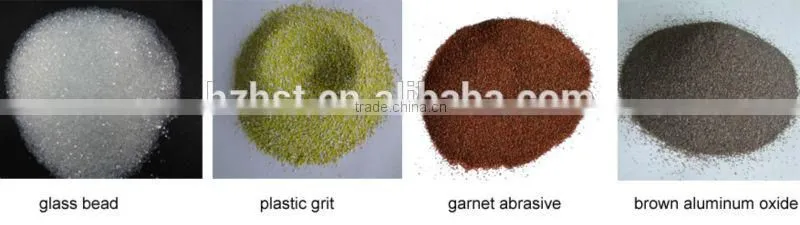

Blasting media :Brown aluminum oxide,glass beads,plastic grit ,garnet abrasive ect

Residue burr sand blasting cabint 9080EA

Technical dates
Model  Outside size (L*W*L mm)  CABIN size(L*W*L mm)
HST6050A 960*650*1520 600*500*520
HST6050EA 960*650*1520 600*500*520
HST7660A 1050*810*1580 760*600*520
HST7660EA 1050*810*1580 760*600*520
HST9060A 1050*950*1580 900*600*580
HST9060EA 1050*950*1580 900*600*580
HST9070A 1150*950*1580 900*700*580
HST9070EA 1150*950*1580 900*700*580
HST9080A 1250*950*1580 900*800*580
HST9080EA 1250*950*1580 900*800*580
HST1010A 1420*1050*1900 1000*1000*800
HST1010EA 1420*1050*1900 1000*1000*800
HST1212A 1620*1250*2000 1200*1200*800
HST1212EA 1620*1250*2000 1200*1200*800
Power supply:  220V(380V). 50Hz
Lighting:  flood light incandescent lamp 220V, 13W
Separator motor:  220V, 50Hz, 0.75kW
Compressed air supply:

pressure at 0.1-8bar(kg/cm2) and flow of 0.5-1 m3/min

Suitable Air compressor:flow of 1 m3/min,7.5kW,10 HP (two guns double)
Dust removal:

Bag-type dust collector, powder clearance
by compressed air vibration

 Please notice:

1.Different between A and EA:

   1)A type:without separation system

   2)EA type:have separation system and thermostatic heating device

2. Can be customized:

   1)Door open:front open or side open by your requirement.

   2)The size

   3)Voltage

   4)Your reasonable requirement

3.When you order the machine,use our abrasive will be better.If not,please tell me abrasive size.

4. Warranty:1 year(except quick-wear parts)



Features

1) there is a thermostatic heating device which make abrasive,drying automatically to prevent abrasive from breathing
2) all the model with blast hose ,gloves ,gun with nozzle ,dust collect ,and seprator etc parts

3)5-10kgs abrasive can blast one day(about 8 hours),save the abrasive

4)shell:3mm steel plate

5)Bag-type dust collector

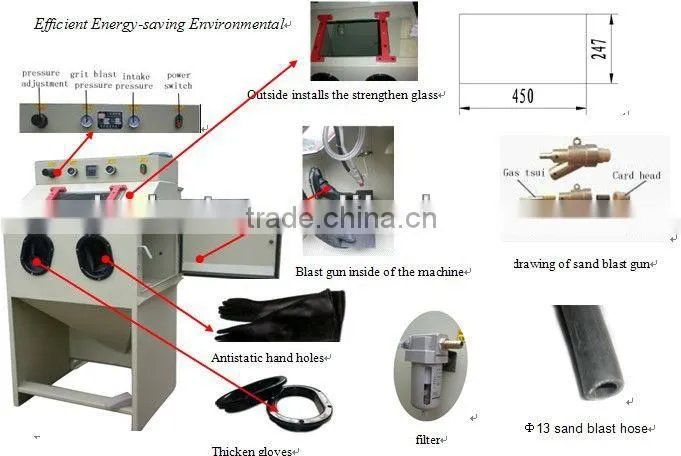

Structure

Residue burr sand blasting cabint 9080EA



Detailed Images

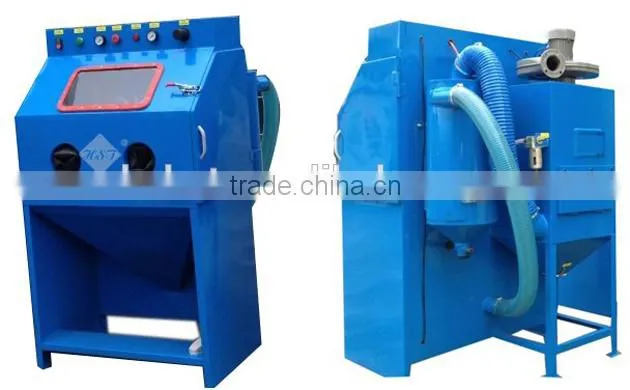

Picture of sandblast back

Residue burr sand blasting cabint 9080EA



The main parts of the machine:
Residue burr sand blasting cabint 9080EA

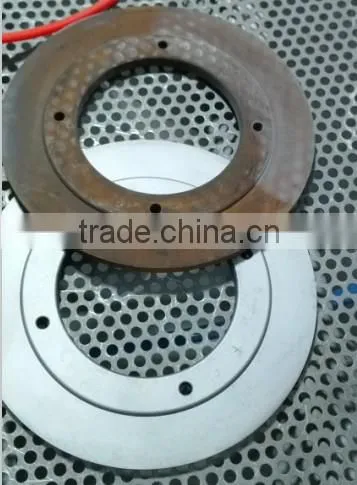

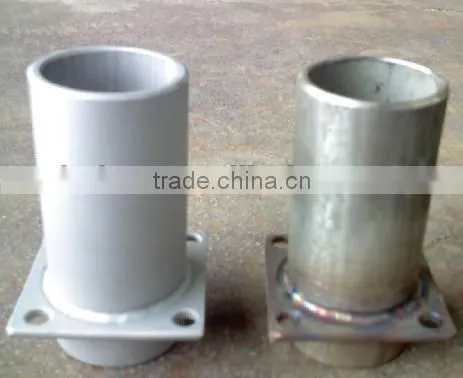

work pieces before and after sand blasting
    Residue burr sand blasting cabint 9080EA       Residue burr sand blasting cabint 9080EA

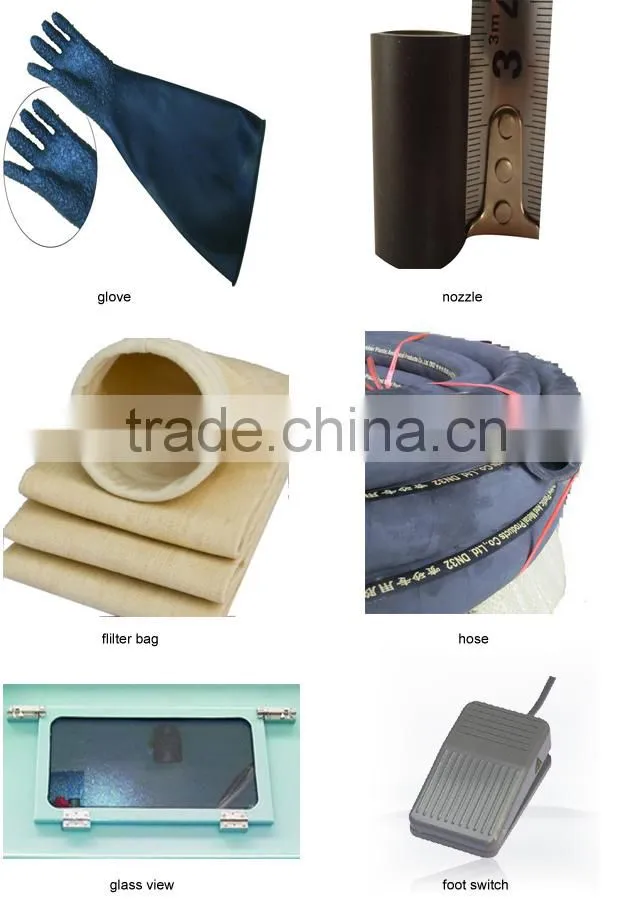

Perishable goods

Residue burr sand blasting cabint 9080EA

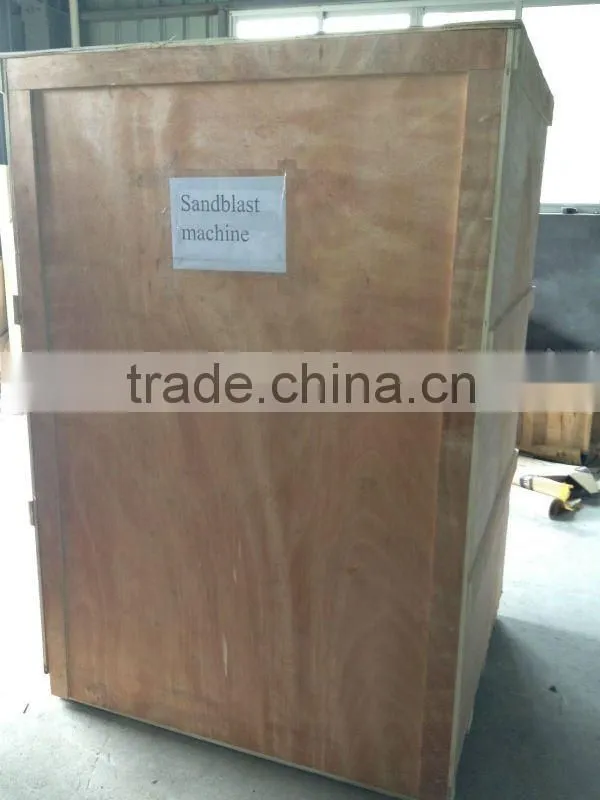

Professional export packing (plywood)

Residue burr sand blasting cabint 9080EA
