CCTV Data Communicating Video Balun

Name: CCTV Data Communicating Video Balun
Brand: Linkeson
SKU: 129398965
Availability: InStock

Shenzhen Linkeson Technology Co., Ltd.

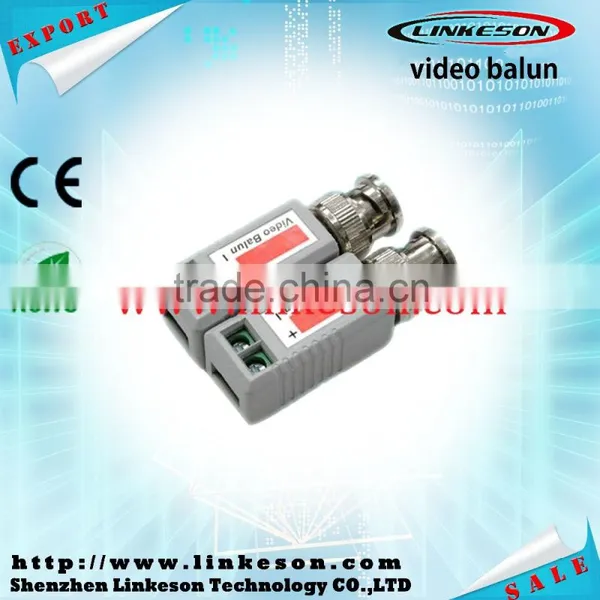

CCTV Data Communicating Video Balun thumbnail-1

CCTV Data Communicating Video Balun photo-1

US$ 1 - 3 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Linkeson

Model Number:

video balun

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Linkeson

Model Number video balun

Hi welcome to Shenzhen Linkeson Technology Co.,LTD

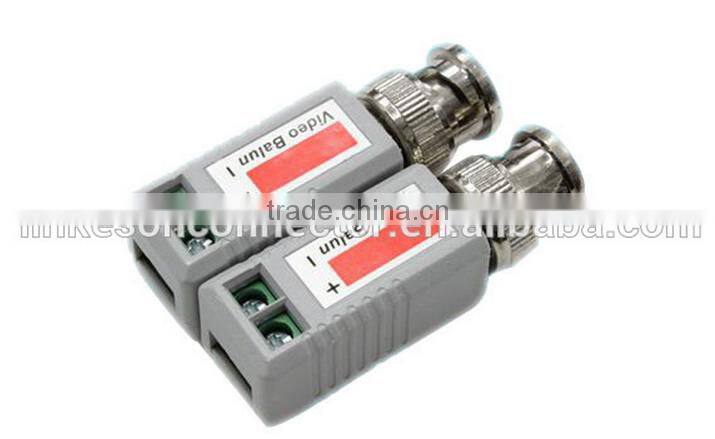

CCTV data communicating video balun

CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet.

Product Description

Specification:

1,202E/212E passive video balun
2,video transmission via UTP CAT5

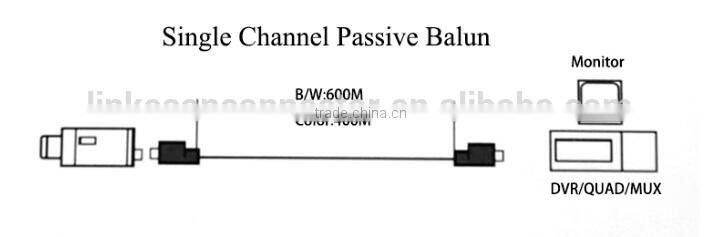

3,single Chanels passive video balun

ITEMS	SPECIFICATION
Transmission Distance
Transmission Distance with passive	300-450m
Transmission Distance with active	1200m
Video
Video Format	PAL,NTSC,SECAM
Operating Frequency	DC to 6MHz
Common-mode/Different-mode rejection	15KHz to 5MHz 60 dB typ
Attenuation	1.5dB typ Max
Impedance	Male BNC:75Ω
Impedance	terminal:100Ω
Wire type
Network Wiring	One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)
Category Type	5 or better
Impedance	100±20ohms
DC Loop Resistance	Different Capacitance
Protection
Video Input	2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Video Output	2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Connector
Video input/output	Male BNC / Push-Pins
Mechanical
Housing	ABS engineering plastic
Body Color	Black
Dimensions	*958014mm*
Gross weight	33g
Environment
Operating Temperature	-20℃-70℃
Relative Humidity	0-95%(non-condensing)
Storage Temperature	-40℃-80℃

A series of other products recommended for you:

Extensive application:

Company Information

Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.

Trade Information

Our Sertification:

Packaging & Shipping

1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.

Our Services

1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.

2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.

FAQ

Q:What' your MOQ?

A:500 pieces

Q:What's you pay ment?

A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
