Hi welcome to Shenzhen Linkeson Technology Co.,LTD

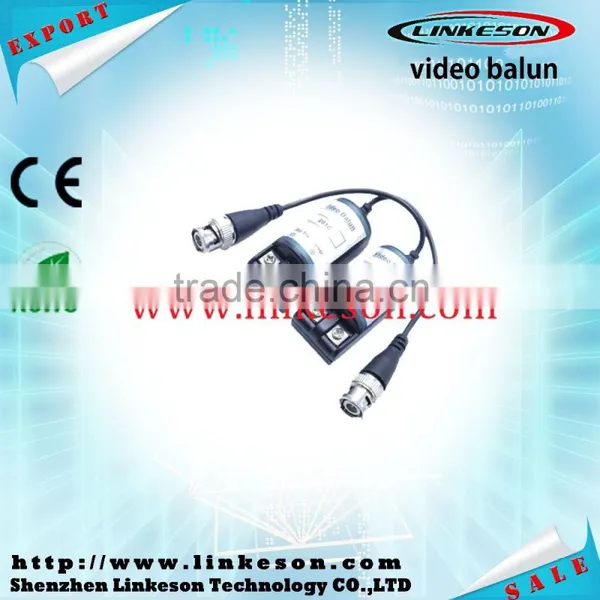

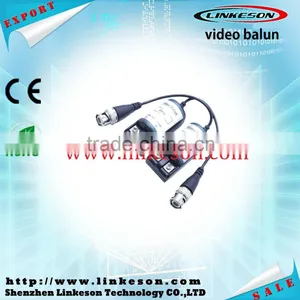

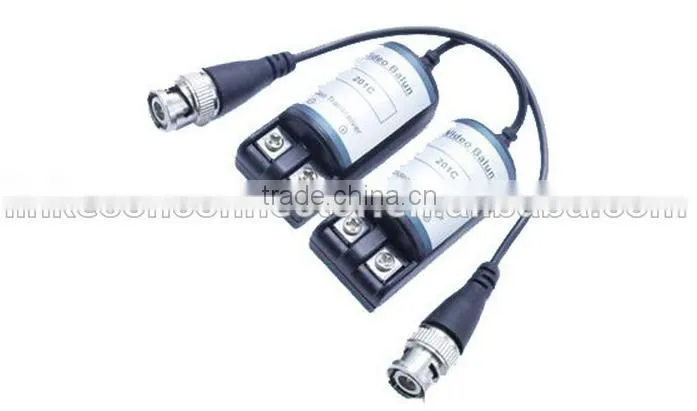

Signal transmission and Ordinary anti-interference Video Balun
CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet.
Specification:
Frequency response: DC to 8 MHz |
Attenuation: 0.5dB typ |
| CMRR: 60 dB | Impedance: BNC: 75 ohms , Terminal: 100 ohms |
| Coax: 75 ohms | Twisted Pair:100 ohms |
| Working: -10°C to +70°C | Storage: -30°C to +70°C |
| Humidity: 0 to 95% | Wire Type: Unshielded Cat-5 or above twisted pair wire |
| Unshielded Twisted Pair: 24-16 AWG | Category Type: 5or better |
| DC Loop Resistance: 52 ohms per 1,000-6000ft | Differential Capacitance: 19pF/ft max |
| Material: ABS Plastic | Weight:46g/Pair |
*Video transmission via UTP CAT5 cable.
*10-20% wire cost saved.
*Full-motion CCTV video at distances up to 1000-2000ft(300-600M)
*Outstanding interference rejection and transient protection
*Male BNC allows connection directly to the camera or DVR
Extensive application:
