Hi welcome to our page
Shenzhen Linkeson Technology Co.,LTD

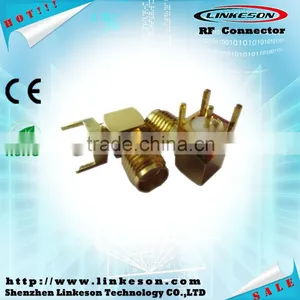

right angle connector sma para pcb
connector sma para pcb
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω |
| Dielectric Withstanding voltage | 1000V(r ms) |
| Frequency range With flexible cable | 0~12.4GHz |
| Frequency range With semi-rigid/flexible cable | 0~18GHz |
| Contact resistance Center conductor | ≤3mΩ |
| Contact resistance Outer conductor | ≤2mΩ |
| VSWR With flexible cable | ≤1.15+0.02F |
| VSWR With semi-rigid/flexible cable | ≤1.05+0.02F |
| Durability | 500 Cycles |
| Material And Plating | |
| Body | Brass , gold plated or stainless steel passivated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper , gold plated |
| Insulators | PTFE |
| Gaskets | Silicon rubber |
| Crimp ferrules | Copper alloy , gold or nickel plated |
connector sma para pcb
1.Fedex,UPS,EMS,DHL or By Sea, By Air
2.Sample:3 working days
3.Order: 5 working days
4.Certifications-CE/ROHS/Reach,ISO9001:2008
connector sma para pcb
Our advantages:
1. Faster delivery: 5 workdays.
2. Customized packing and customer's logo are accepted.
3. Sample order is welcome and it can be free if you are real customer.
4. Accept various transportation ways. like by express, by sea, by air and also specified freight company.
5. Professional factory directly sale all over the wrold.
connector sma para pcb
To know more about us:
1.Fast delivery 3 days for sample order,5 days for formal order
2.High warranty,strictly test by QC before shipping
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/ROHS/Reach,ISO9001:2008
5.Strong production ablility:-Monthly output is over 600000pcs
6.High quality and low price
connector sma para pcb
Any material, any package, any logo acceptabe, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
