SMA male right angle gold connector for RG58
- 5000 Piece / Pieces per Month
- shanghai or shenzhen
- T/T Credit Card
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | linkeson, linkeson | |
Model Number | SMA male right angle gold connector for RG58 | Type | SMA | |
Application | Other, RF,automotive,power,microwave,audio and video,antenna,WIFI, RF,automotive,power,microwave,audio and video,antenna,WIFI | Gender | Other, Male, male |
Product Description
Hi welcome to our page
Shenzhen Linkeson Technology Co.,LTD

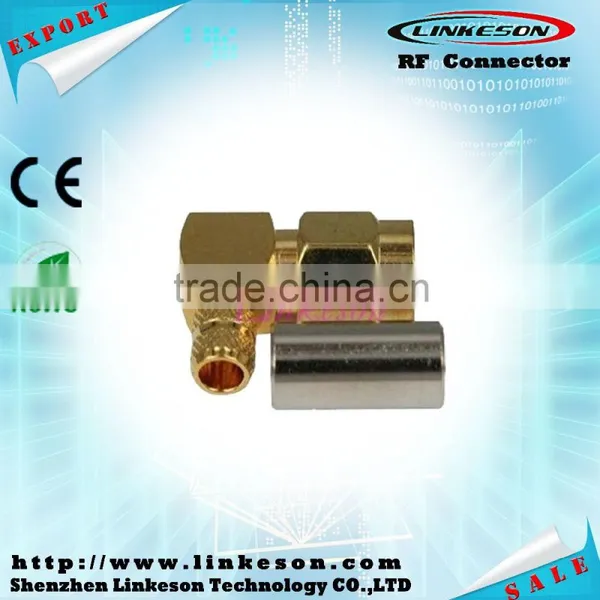

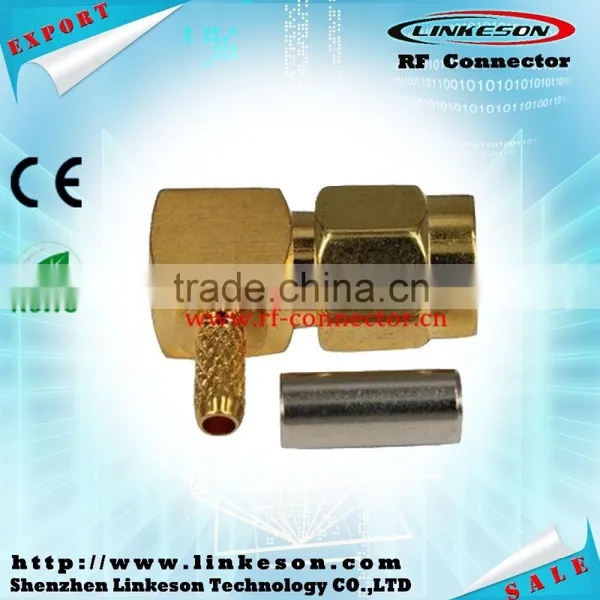

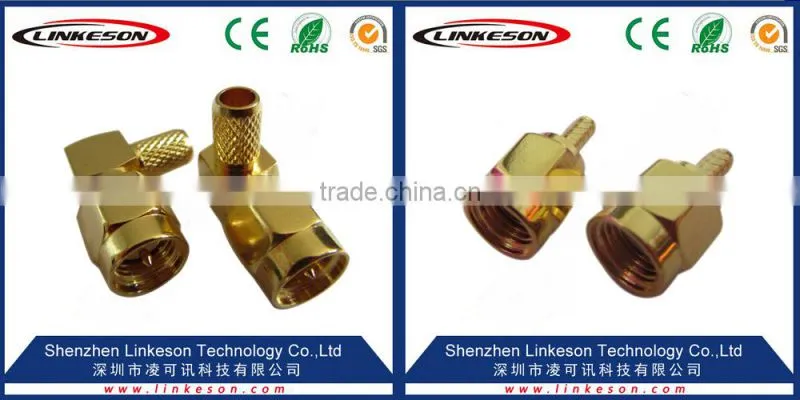

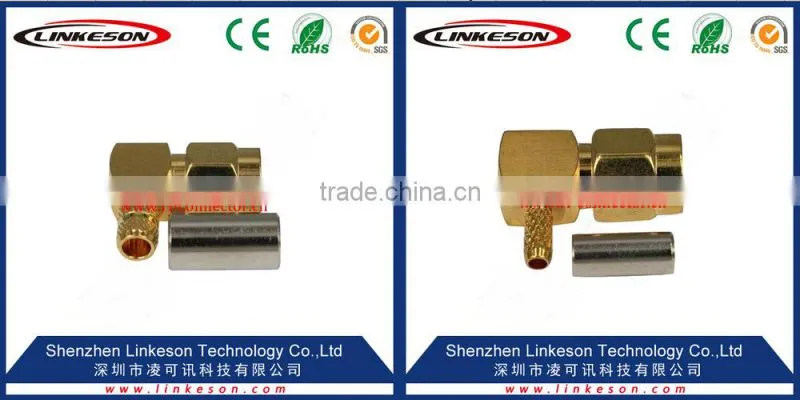

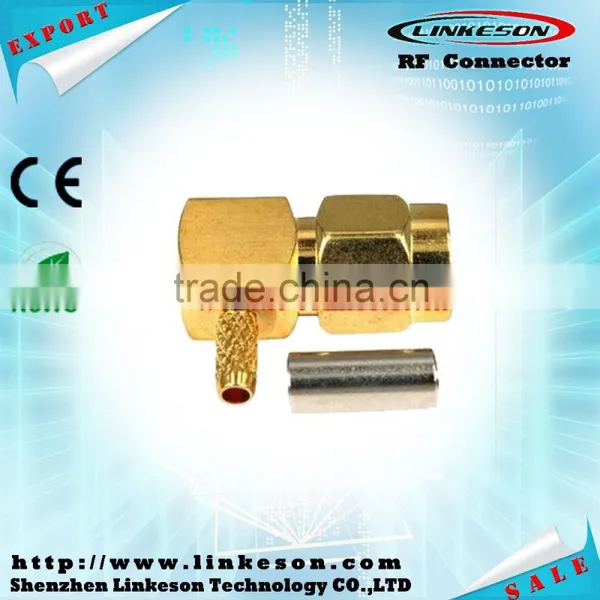

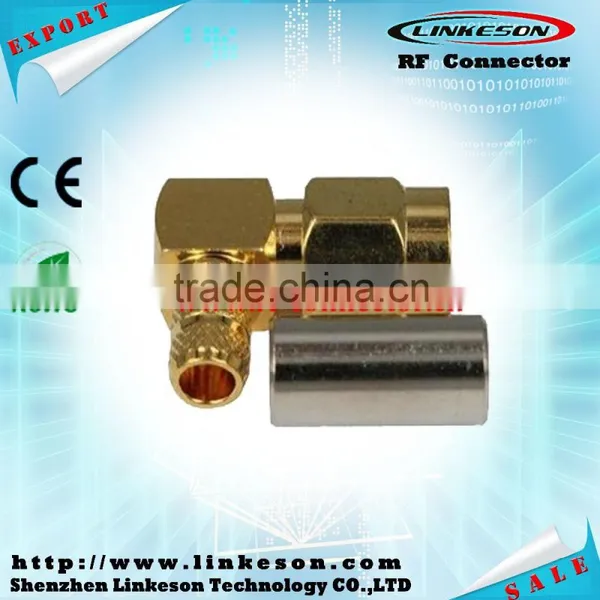

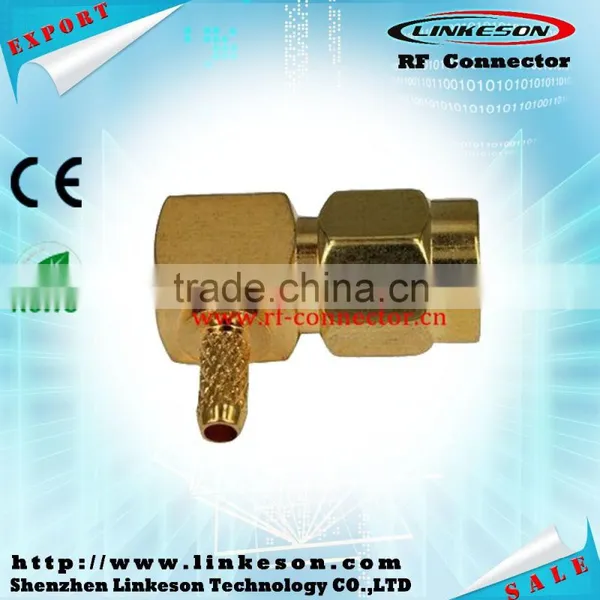

SMA male right angle gold connector for RG58
Series SMA are very popular thread coupling miniature coaxial connectors.Which have the excellent performances of high reliability,high mechanical strength,high durability,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.
SMA connector
Key Performance | |
Temperature range | -65℃ ~ 165℃ |
Insulation resistance | ≥5000MΩ |
Characteristic impedance | 50Ω |
Dielectric Withstanding voltage | 1000V(r ms) |
Frequency range With flexible cable | 0~12.4GHz |
Frequency range With semi-rigid/flexible cable | 0~18GHz |
Contact resistance Center conductor | ≤3mΩ |
Contact resistance Outer conductor | ≤2mΩ |
VSWR With flexible cable | ≤1.15+0.02F |
VSWR With semi-rigid/flexible cable | ≤1.05+0.02F |
Durability | 500 Cycles |
Material And Plating | |
Body | Brass , gold plated or stainless steel passivated |
Male center contacts | Brass , gold plated |
Female center contacts | Beryllium copper , gold plated |
Insulators | PTFE |
Gaskets | Silicon rubber |
Crimp ferrules | Copper alloy , gold or nickel plated |
1.Fedex,UPS,EMS,DHL or By Sea, By Air
2.Sample:3 working days
3.Order: 5 working days
4.Certifications-CE/ROHS/Reach,ISO9001:2008
Our advantages:
1. Faster delivery: 5 workdays.
2. Customized packing and customer's logo are accepted.
3. Sample order is welcome and it can be free if you are real customer.
4. Accept various transportation ways. like by express, by sea, by air and also specified freight company.
5. Professional factory directly sale all over the wrold.
To know more about us:
1.Fast delivery 3 days for sample order,5 days for formal order
2.High warranty,strictly test by QC before shipping
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/ROHS/Reach,ISO9001:2008
5.Strong production ablility:-Monthly output is over 600000pcs
6.High quality and low price
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Contact me for more product information!
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
