MCX female coaixal connector FOR PCB MOUNT
- 5000 Piece / Pieces per Month
- Shanghai or Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Linkeson, Linkeson | |
| Model Number | MCX connector | Type | Other, MCX, MCX female coaixal connector FOR PCB MOUNT | |
| Application | Other, RF, automotive,power,microwave,audio and video,antenna,WIFI | Gender | Other, Female, female |
Product Description
Hi welcome to Shenzhen Linkeson Technology Co.,LTD
MCX female coaixal connector FOR PCB MOUNT
MCX micro-miniature RF connectors are suitable for 50 ohm applications an provide repeatable performance from DC to 6GHz. The snap on coupling feature allows ease of assembly in dense packaging layouts. The design of the connector encompasses the need for size reduction, low weight, durability, and reliable performance, which are required in RF circuits of mobile and fixed communication system.
Typical applications for MCX connectors include GPS, wireless communications and
automotive.
Specification
| Key Performance | ||||||
| Temperature range | -40~+90 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 500V(r ms) | |||
| Frequency range | 0~6GHz | Contact resistance | Center conductor | ≤10mΩ | ||
| Working voltage | 170V(r ms) | Outer conductor | ≤5mΩ | |||
| VSWR | ≤1.25 | Durability | 500 Cycles | |||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Phosphor bronze , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Crimp ferrules | Copper alloy , nickel plated | |||||

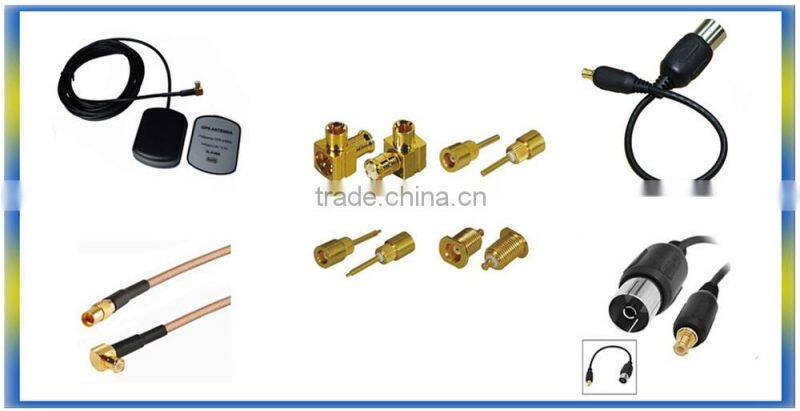

Wide application:

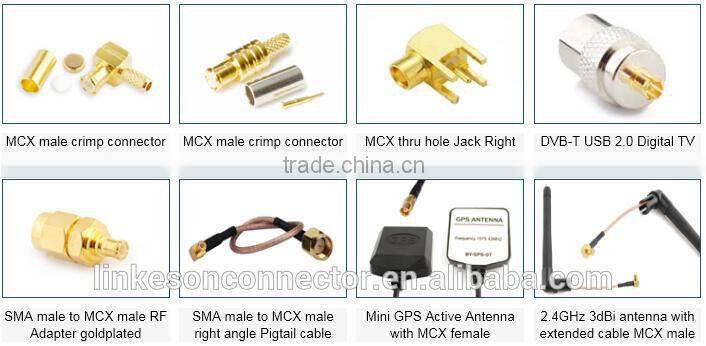

A series of other products recommended for you:
Trade Information:
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold.
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays.
---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All products have been checked and packaged in good condition by QC before dispatch.
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
