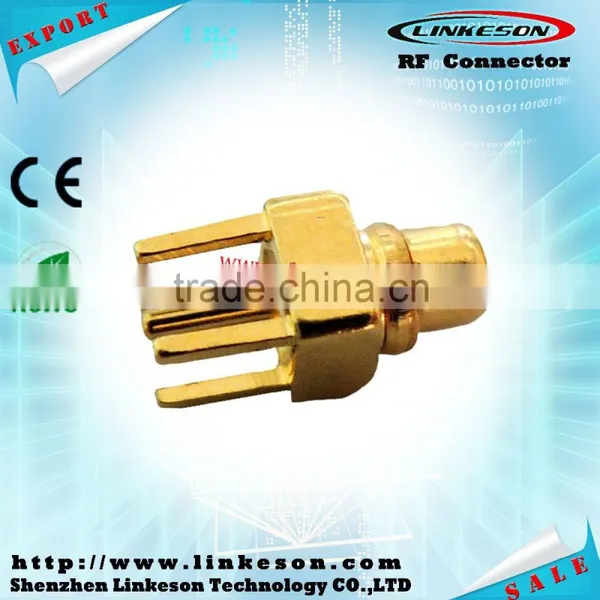

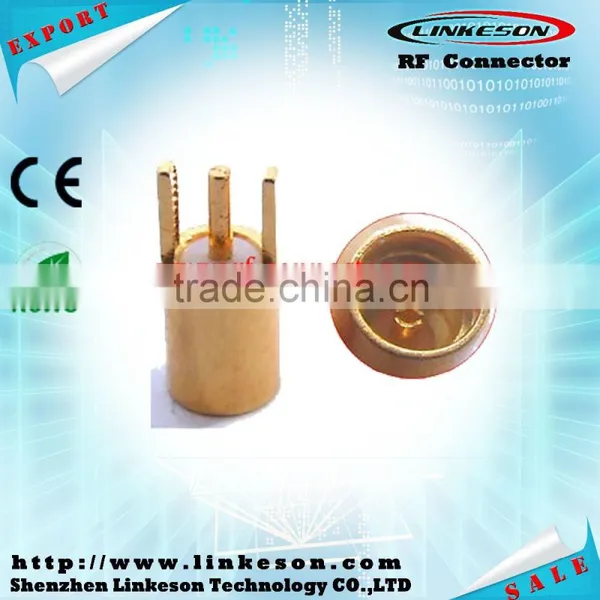

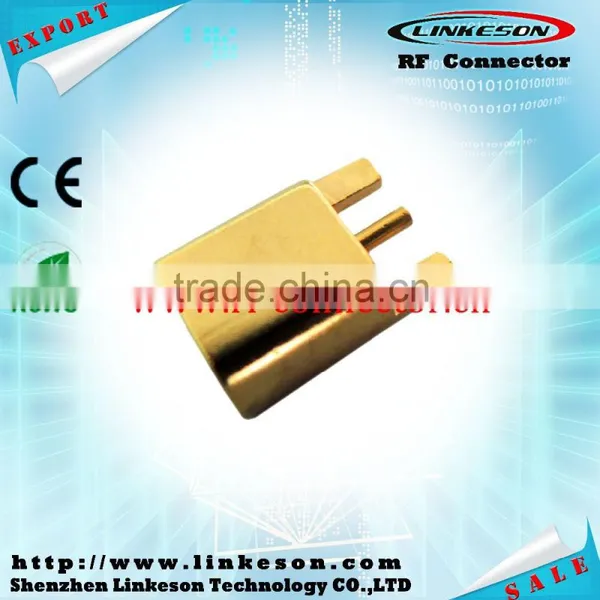

(Manufacture)MMCX Male Coaxial Connector FOR PCB MOUNT
US$ 0.35 - 0.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Linkeson, Linkeson
Model Number:
MMCX male coaxial connector FOR PCB MOUNT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Factory MMCX Female Pcb Socket ConnectorUS$ 0.35 - 0.5MOQ: 1 Piece -
N Male Plug Crimp LMR240 RG8 RF ConnectorUS$ 0.5 - 1MOQ: 1 Piece
-
n Male rf Connector Lmr200 Cable AntennaUS$ 0.5 - 1MOQ: 1 Piece
-
Female Connector n Flange BulkheadUS$ 0.5 - 1MOQ: 1 Piece
-
Manufacture Male Connector Clamp n StakeUS$ 0.5 - 1MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Linkeson, Linkeson
Model Number
MMCX male coaxial connector FOR PCB MOUNT
Type
Other, MMCX, MMCX male coaxial connector FOR PCB MOUNT
Application
Other, RF,automotive,power,microwave,audio and video,antenna,WIFI, RF,automotive,power,microwave,audio and video,antenna,WIFI
Gender
Other, Male, male
MMCX male coaxial connector FOR PCB MOUNT
Series MMCX are developed as smaller version of MCX connectors . The reliable snop-on coupling mechanism can ensure the electrical parameters to be reproduced consistently. Due to their non-slotted contact. This series connectors can provide a low RF leakage in RF circuits.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.
| Key Performance | ||||||
| Temperature range | -40~+90 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 500V(r ms) | |||
| Frequency range | 0~6GHz | Contact resistance | Center conductor | ≤10mΩ | ||
| Working voltage | 170V(r ms) | Outer conductor | ≤5mΩ | |||
| VSWR | ≤1.25 | Durability | 500 Cycles | |||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Phosphor bronze , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Crimp ferrules | Copper alloy , nickel plated | |||||
