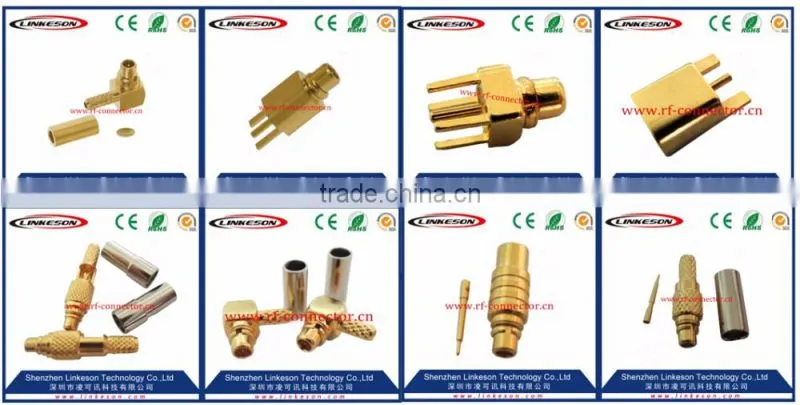

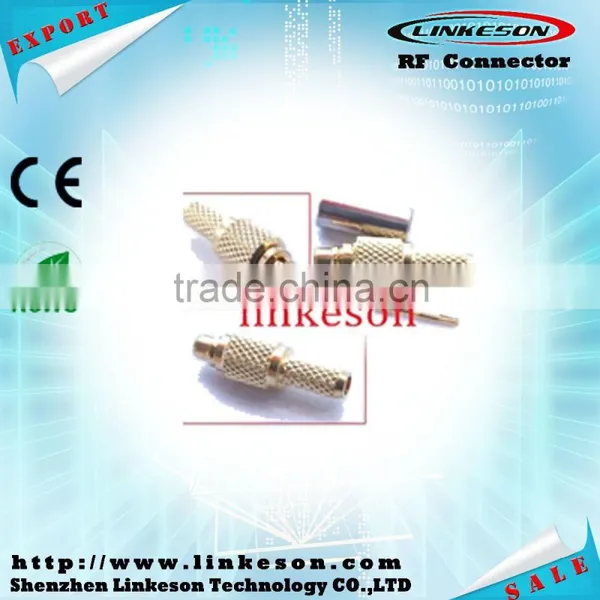

MMCX Female straight crimp RG174 RG316
Series MMCX are developed as smaller version of MCX connectors . The reliable snop-on coupling mechanism can ensure the electrical parameters to be reproduced consistently. Due to their non-slotted contact. This series connectors can provide a low RF leakage in RF circuits.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.
Specification:
| Key Performance | ||||||
| Temperature range | -40~+90 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 500V(r ms) | |||
| Frequency range | 0~6GHz | Contact resistance | Center conductor | ≤10mΩ | ||
| Working voltage | 170V(r ms) | Outer conductor | ≤5mΩ | |||
| VSWR | ≤1.25 | Durability | 500 Cycles | |||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Phosphor bronze , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Crimp ferrules | Copper alloy , nickel plated | |||||
A series of other products recommend for you :
Shenzhen Linkeson Technology Co.,Ltd, is a company engaged in the RF connector R&D, production, sales, professional services in one of the professional high-tech enterprises.Our products have gained international CE,ROHS,ISO9001 certification,ODM and OEM are available.
Our Sertification:
1.Ordinary packing and Customized packing.
2.Fedex,UPS,EMS,DHL or By Sea, By Air.
1.Faster delivery:Fast delivery 3 days for sample order,5 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:-Monthly output is over 600000pcs.
8.Professional factory directly sale all over the wrold
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally about 5 workdays. ---Via Air Mail: Generally about 3 workdays.
Q:What about your warranty?
A:1.We can provide 1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality
3.All products have been checked and packaged in good condition by QC before dispatch
Any material, any package, any logo acceptable, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
Welcome to contact us for more details
Your satisfied is our target!
